神钢零件查询(MD300LC) - EXCAVATOR BTW YC0101 - YC0300 (1/80-12/06) (08-053) - VALVE ASSY, BRAKE Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
656 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|

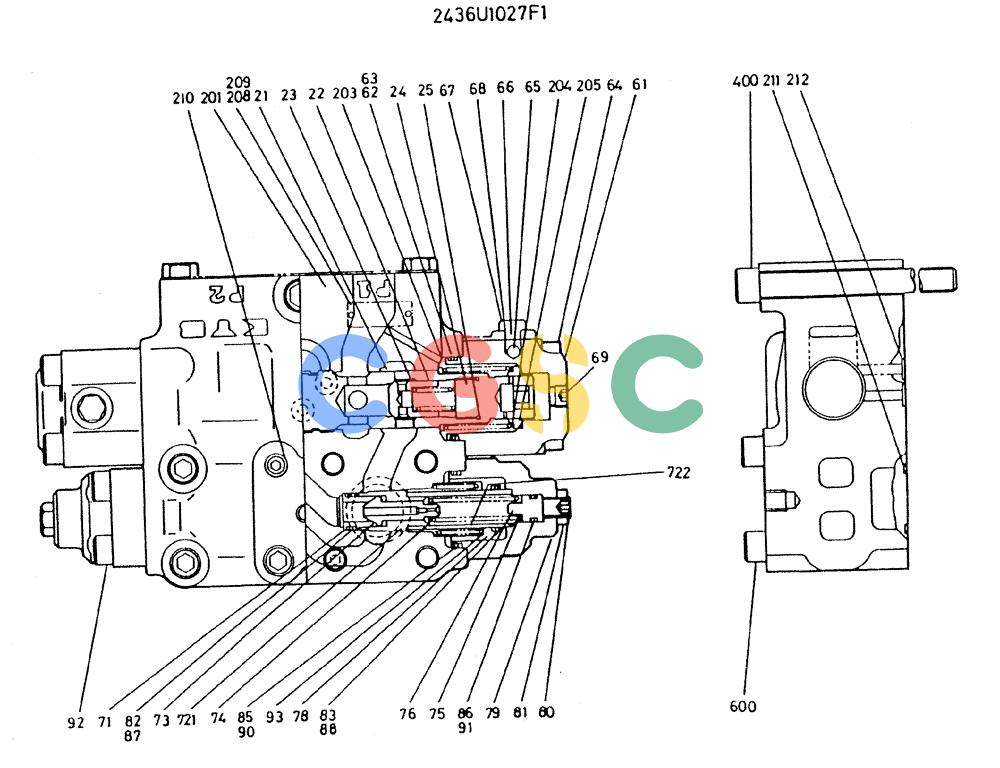

| . . | 2436U1027F1 | [1] | BRAKE VALVE | KOBCONSISTS OF THE FOLLOWING PARTS |
| 21. | 2436U1027S21 | [1] | PLUNGER | |
| 22. | 2436U1027S22 | [2] | VALVE, CHECK | VALVE, CHECK |
| 23. | 2436U1027S23 | [2] | SPRING | SPRING |
| 24. | 2436U1027S24 | [2] | PLUG | |
| 25. | ZD12P02100 | [2] | O-RING,2.4mm Thk x 20.8mm ID, 90 Duro | KOBO-Ring -- ID 20.80 ± 0.23 x OD 25mm |
| 61. | 2436U1027S61 | [1] | CAP | |
| 62. | ZD12G04500 | [1] | O-RING,44.40mm ID x 50.60mm OD x 3.10mm | KOBID 44.40 ± 0.41 x OD 50mm |
| 63. | ZD85G04500 | [1] | BACK-UP RING | KOB |
| 64. | ZS23C12065 | [4] | SCREW,Hex Socket Head, M12 x 65mm | KOBM12x1.75x60mm |
| 65. | 2436U281S37 | [1] | BALL | KOB |
| 66. | 2436U1027S66 | [1] | SPRING | SPRING |
| 67. | 2436U1027S67 | [1] | PLUG | |
| 68. | ZD12P00800 | [1] | O-RING,1.9mm Thk x 7.8mm ID, 90 Duro | KOBID 7.8mm x OD 9.7mm |
| 69. | ZE82T04000 | [2] | PLUG | KOB1/4" PT |
| 71. | 2436U1027S71 | [1] | SPRING SEAT | KOBPOPPET |
| 73. | 2436U1027S73 | [1] | POPPET | |
| 74. | 2436U1027S74 | [1] | SEAT, SPRING | |
| 75. | 2436U1027S75 | [1] | SPRING | KOB |
| 76. | 2436U1027S76 | [1] | GUIDE, SPRING | |
| 78. | 2436U1027S78 | [1] | PISTON | |
| 79. | 2436U1027S79 | [1] | CAP | |
| 80. | 2436U1027S80 | [1] | SET SCREW | KOBSETSCREW |
| 81. | 2436U1027S81 | [1] | NUT | NUT |
| 82. | ZD12P01800 | [1] | O-RING | KOBID 17.8mm x OD 20.2mm |
| 83. | ZD12P02200 | [1] | O-RING | KOBID 21.80 ± 0.24 x OD 26mm |
| 85. | ZD12P03900 | [1] | O-RING | KOB |
| 86. | ZD12P01200 | [1] | O-RING | KOBID 11.80 ± 0.19 x OD 16mm |
| 87. | ZD85P01800 | [2] | RING | KOBBack-Up -- ID 18 x OD 22 x Th 1.25mm |
| 88. | ZD85P02200 | [2] | BACK-UP RING | KOB |
| 90. | ZD85P03900 | [1] | BACK-UP RING | KOB |
| 91. | ZD85P01200 | [1] | BACK-UP RING | KOB |
| 92. | ZS23C12035 | [4] | SCREW,Hex Socket Head, M12 x 35mm | KOBM12x1.75x35mm |
| 93. | 2436U1027S93 | [1] | SPRING | |
| 201. | 2436U1027S201 | [1] | BODY | |
| 203. | 2436U1027S203 | [2] | SEAT/SLOT | KOB |
| 204. | 2436U1027S204 | [2] | SPRING | |
| 205. | 2436U1027S205 | [2] | SEAT/SLOT | KOB |
| 208. | 2436U1027S208 | [1] | NAME-PLATE | |
| 209. | 2436U1027S209 | [2] | SCREWDRIVER | KOB |
| 210. | ZE82T04000 | [2] | PLUG | KOB1/4" PT |
| 211. | ZD12P03400 | [2] | O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro | KOBID 33.70 ± 0.33 x OD 40mm |
| 212. | ZD12P01000 | [2] | O-RING | KOBID 09.80 ± 0.17 x OD 13mm |
| 400. | 2436U1027S400 | [1] | CAPSCREW | |
| 600. | 2436U1027S600 | [6] | CAPSCREW | |
| 721. | 2436U1027S721 | [1] | GUIDE, POPPET | |
| 722. | 2436U1027S722 | [1] | HOUSING | |
| . . | 2436U1027R10 | [1] | CAP | KOBREPAIR KIT, CONSISTS OF REF 61 - 68 |
| . . | 2436U1027R20 | [1] | VALVE PRESSURE RELIE | KOBREPAIR KIT, CONSISTS OF REF 71 - 85, 721, 722 |
