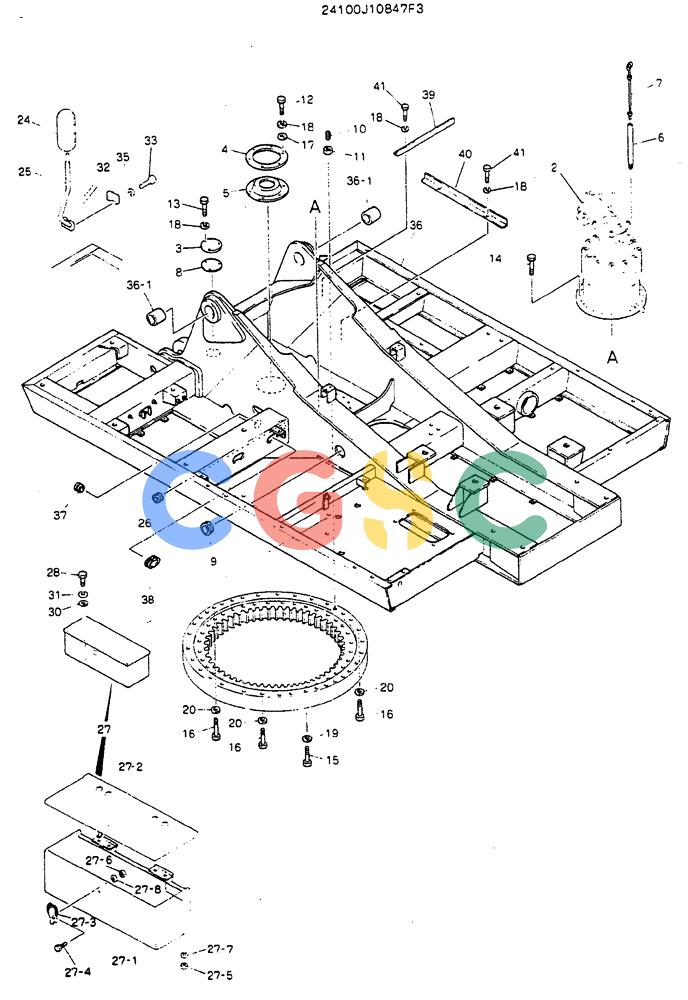

神钢零件查询(MD320BLC) - EXCAVATOR BTW YC0301 - YC0747 (1/80-12/06) (01-001) - FRAME ASSY, UPP Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
224 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J10847F3 | [1] | FRAME ASSY. UPP | |
| 2. | 24100J10325F2 | [1] | MOTOR ASSY, SWING | MOTOR ASSY, SWING |
| 3. | 2414T1412 | [1] | COVER | KOBSEE FIG. 01-003 |
| 4. | 2414T2341 | [1] | COVER | KOB Superseded by part number: YN52F01158P1 |
| 5. | 2414Z291 | [1] | COVER | KOB Superseded by part number: LC52F01022P1 |
| 6. | 2420P1519D1 | [1] | PIPE | KOB |
| 7. | 2420R561D1 | [1] | DIPSTICK | KOBINSTAL GAUGE. LEVEL |
| 8. | R45T0005 | [1] | GASKET | KOBPACKING |
| 9. | 2420T4986 | [1] | GROMMET | |
| 10. | 2420T3998D2 | [1] | SET OF SCREWS | KOB |
| 11. | ZN18C22018 | [1] | NUT | KOBM22x2.5mm |
| 12. | ZS18C10025 | [6] | SCREW,Hex, M10 x 25mm | KOBM10x1.50x25mm |
| 13. | ZS18C10014 | [3] | SCREW,Hex, M10 x 14mm | KOBM10x1.50x14mm |
| 14. | 2420Z1626 | [20] | SCREW | KOB |
| 15. | 2420Z1624 | [31] | SCREW | KOB |
| 16. | 2420Z1625 | [3] | SCREW | KOB |
| 17. | 2418T5373C2 | [6] | WASHER | KOBID 11 x OD 30 x Th 3.20mm Superseded by part number: 2418T12346 |
| 18. | ZW26X10000 | [13] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 19. | ZW16H22000 | [31] | WASHER | KOBID 23 x OD 44 x Th 6.0mm |
| 20. | ZW16H24000 | [3] | WASHER | KOBID 25 x OD 48 x Th 6.0mm |
| 24. | 2456Z253 | [1] | MIRROR | KOB |
| 25. | 2416P13732 | [1] | STAY | KOB Superseded by part number: 2416P13732D2 |
| 26. | 2420Z1234 | [1] | GROMMET | KOB |
| 27. | 24100P2570F1 | [1] | BOX ASSY, TOOL | BOX ASSY, TOOL |
| 27-1. | 2414N3807 | [1] | BOX. TOOL | |
| 27-2. | 2414N3808 | [1] | COVER | |
| 27-3. | 2432Z451 | [1] | CATCH | KOB |
| 27-4. | ZS31C03008 | [2] | SCREW,Phillips Drive, Pan HD, M3 x 8mm | KOBM03x0.5x08mm |
| 27-5. | ZN16C08007 | [4] | NUT | KOBM08x1.25mm Superseded by part number: ZN18C08007 |
| 27-6. | ZN11C03003 | [2] | NUT | KOBM03x0.5mm |
| 27-7. | ZW22X08000 | [4] | LOCK WASHER | KOBID 08 x OD 15.4 x Th 2.0mm Superseded by part number: 83990583 |
| 27-8. | ZW26X03000 | [2] | LOCK WASHER | HIT |
| 28. | ZS18C12020 | [2] | SCREW,Hex, M12 x 20mm | KOBM12x1.75x20mm |
| 30. | 2418T10357 | [2] | WASHER | KOBID 13 x OD 30 x Th 3.2mm Superseded by part number: 2418T12345 |
| 31. | ZW26X12000 | [2] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm |
| 32. | 2432T4113 | [1] | CLAMP | KOB Superseded by part number: 2432T4113D2 |
| 33. | ZS18C08040 | [2] | SCREW,Hex, M8 x 40mm | KOBM08x1.25x40mm |
| 35. | ZW26X08000 | [2] | LOCK WASHER | KOBLock -- ID 08 x OD 15 x Th 2.0mm Superseded by part number: 83990583 |
| 36. | 2422J2917 | [1] | FRAME. UPP | |
| 36-1. | 2405T1253 | [2] | BUSHING | KOB |
| 37. | 2420Z699 | [1] | GROMMET | KOB |
| 38. | 2420Z1183 | [1] | SCREW | KOB |
| 39. | 2430T175 | [1] | ANGLE | |
| 40. | 2430T176 | [1] | ANGLE | ANGLE |
| 41. | ZS18C10020 | [4] | SCREW,Hex, M10 x 20mm | KOBM10x1.50x20mm |
