神钢零件查询(MD320BLC) - EXCAVATOR BTW YC0301 - YC0747 (1/80-12/06) (01-002) - COUNTER-WEIGHT ASSY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
821 次

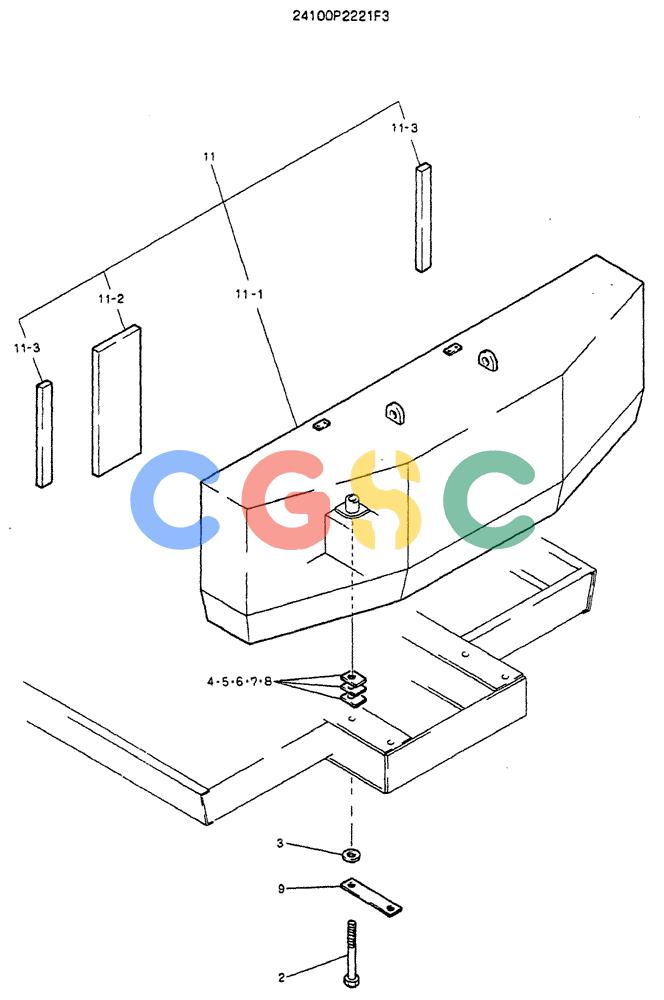

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100P2221F3 | [1] | COUNTER-WEIGHT ASSY | |
| 2. | R20P0021D18 | [4] | SCREW | KOB |
| 3. | R16T0152D6 | [4] | WASHER | KOBFlat -- ID 37 x OD 66 x Th 6.0mm |
| 4. | 2420T6013D1 | [14] | SHIM | KOB130x80x0.4mm, Serial Range: YC0301-YC0439 |
| . . | 2420T6013D1 | [2] | SHIM | KOB130x80x0.4mm, Start Serial: YC0440 |
| 5. | 2420T6013D5 | [2] | SHIM | KOB130x80x3.2mm |
| 6. | 2420T6013D6 | [2] | SHIM | KOB130x80x4.5mm, Serial Range: YC0301-YC0439 |
| 7. | 2420T6013D4 | [2] | SHIM | KOB130x80x2.3mm, Serial Range: YC0301-YC0439 |
| 8. | 2420T6013D3 | [2] | SHIM | KOB130x80x1.6mm |
| 9. | 2418T17679 | [2] | PLATE | KOB |
| 11. | 24100P2628F1 | [1] | COUNTERWEIGHT ASSY | |
| 11-1. | 2422J2936 | [1] | COUNTERWEIGHT | |
| 11-2. | 2479T1722 | [1] | INSULATION, SOUND | INSULATION, SOUND |
| 11-3. | 2427T1837 | [2] | INSULATION, SOUND | INSULATION, SOUND |
