神钢零件查询(MD320BLC) - EXCAVATOR BTW YC0301 - YC0747 (1/80-12/06) (11-028) - PUMP ASSY, GEAR 2441U291 F2 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
835 次

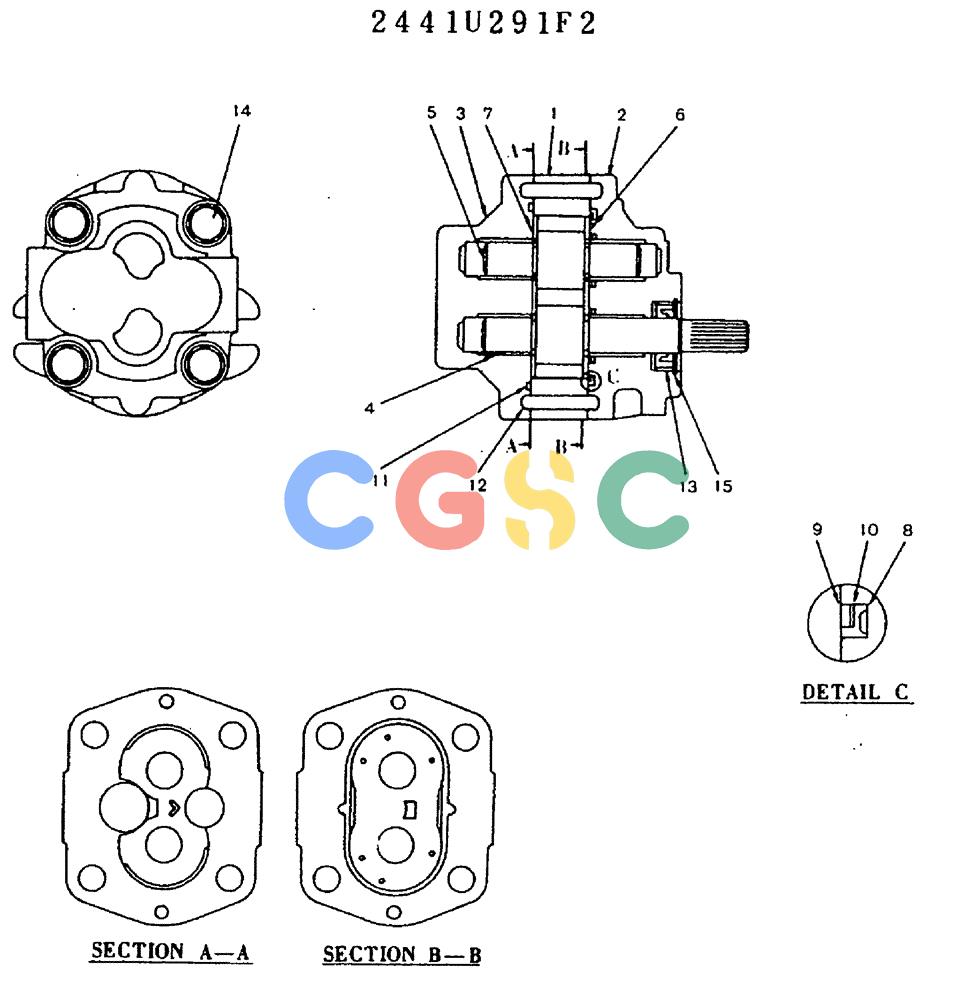

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2441U291F2 | [1] | HYDRAULIC PUMP | KOBASSY, GEAR, CONSISTS OF THE FOLLOWING PARTS |
| 1. | NSS | [1] | NOT SOLD SEPARAT | CONPLATE GEAR |
| 2. | NSS | [1] | NOT SOLD SEPARAT | CONFLANGE MTG |
| 3. | NSS | [1] | NOT SOLD SEPARAT | CONCOVER |
| 4. | NSS | [1] | NOT SOLD SEPARAT | CONGEAR DRIVE |
| 5. | NSS | [1] | NOT SOLD SEPARAT | CONGEAR DRIVEN |
| 6. | 2441U291S6 | [1] | SIDE PLATE | KOB |
| 7. | 2441U291S7 | [1] | SIDE PLATE | KOB |
| 8. | 2441U291S8 | [1] | SEAL | KOB Superseded by part number: 2437U157S8 |
| 9. | 2441U291S9 | [1] | GASKET | KOB Superseded by part number: 2437U157S9 |
| 10. | 2441U291S10 | [1] | GASKET | KOB Superseded by part number: 2437U157S10 |
| 11. | 2441U291S11 | [1] | O-RING | KOB Superseded by part number: 2437U157S11 |
| 12. | 2441U291S12 | [2] | PIN | KOB |
| 13. | 2441U291S13 | [1] | OIL SEAL | KOB Superseded by part number: 2437U157S13 |
| 14. | 2441U291S14 | [4] | SCREW | KOB |
| 15. | ZR26X03200 | [1] | SNAP RING | KOBRetaining -- ID 32 x OD 34.4 x Th 1.2mm |
