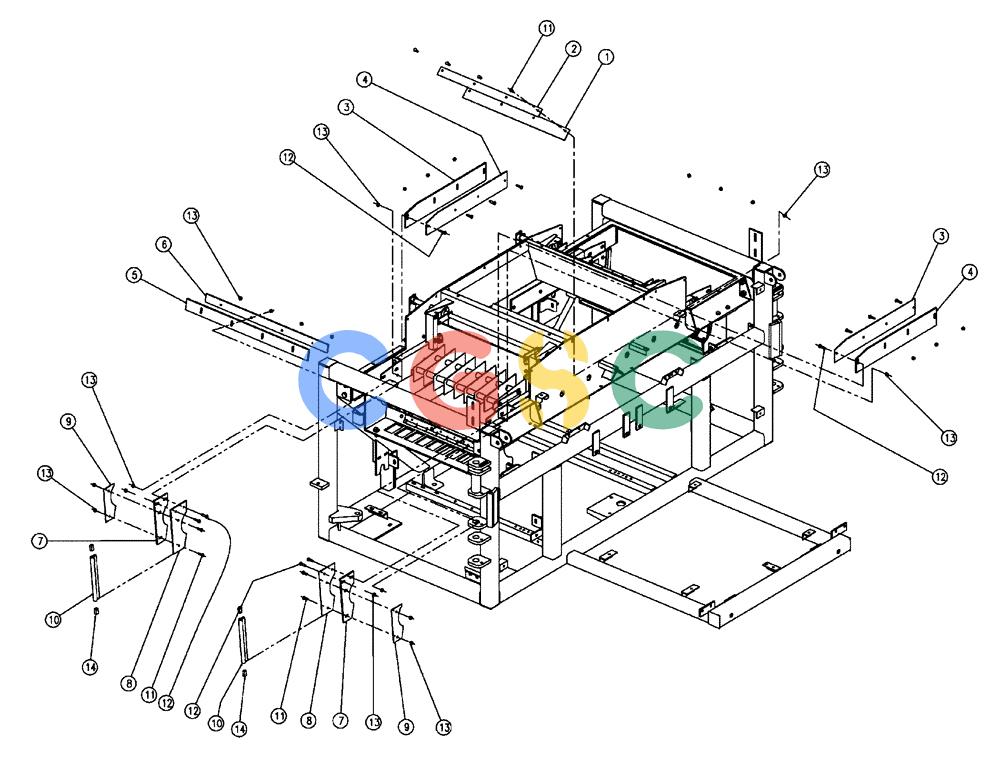

凯斯零件查询(FLX810) - FLEX-AIR APPLICATOR (10/03-8/09) (01-012) - SKIRTING GROUP, FLEX, 60’ & 70’ Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
442 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
BN307227
|
[2] |
SEAL
|
BN
Center, Conveyor
|
| 2. |
BN307228
|
[2] |
STRAP
|
BN
Seal, Center, Convey
|
| 3. |
BN307229
|
[4] |
SEAL
|
BN
Side, Conveyor
|
| 4. |
BN307230
|
[4] |
STRAP
|
BN
Seal, Side, Conveyor
|
| 5. |
BN307231
|
[2] |
SEAL
|
BN
Belt, Bottom
|
| 6. |
BN307232
|
[2] |
STRAP
|
BN
Seal, Belt, Bottom
|
| 7. |
BN307233
|
[4] |
SEAL
|
BN
Belt, Side
|
| 8. |
BN307234
|
[4] |
STRAP
|
BN
Seal, Belt, Side
|
| 9. |
BN307235
|
[4] |
SUPPORT
|
BN
Seal, Belt, Side
|
| 10. |
BN307236
|
[4] |
DOOR SEAL
|
BN
Seal, Divider Door
|
| 11. |
BN50212
|
[16] |
BOLT,1/4"-20 x 3/4", Stainless Steel
|
BN
|
| 12. |
BN50671
|
[24] |
BOLT,1/4"-20 x 1.00", Stainless Steel
|
BN
|
| 13. |
BN55359
|
[48] |
LOCK NUT,1/4"-20, SS
|
BN
|
| 14. |
87267748
|
[8] |
PLUG
|
BN
Foam
|
