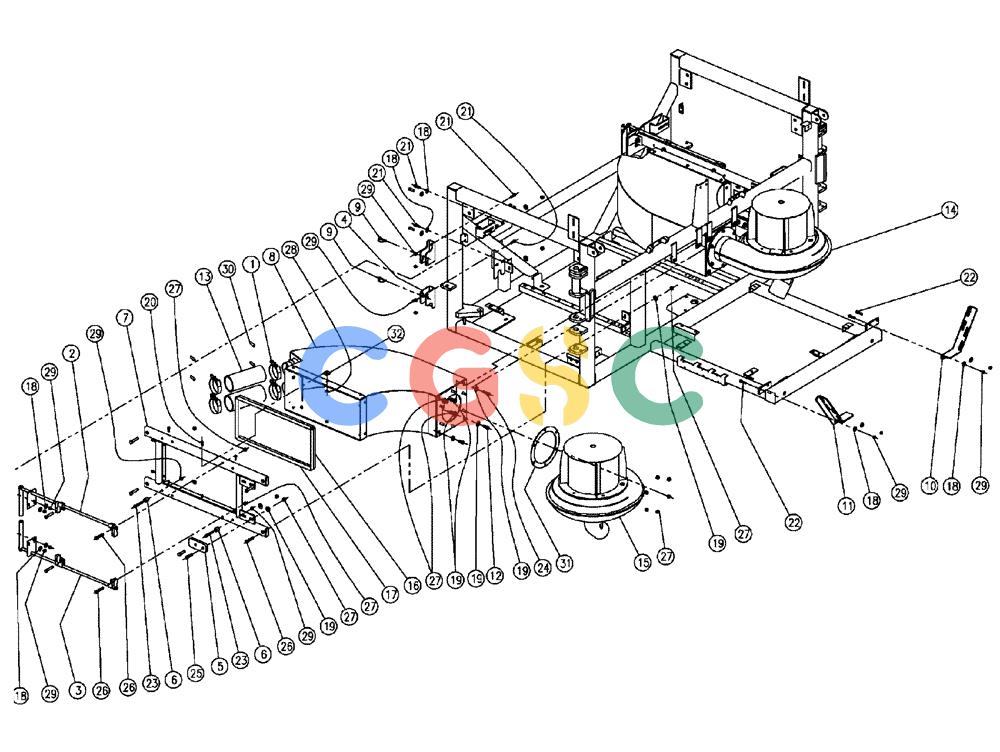

凯斯零件查询(FLX810) - FLEX-AIR APPLICATOR (10/03-8/09) (01-017) - AIR SYSTEM GROUP Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
159 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
BN15497
|
[8] |
CLAMP,76.2mm - 82.55mm
|
BN
3 1/4", SS, T-Bolt
|
| 2. |
BN300688
|
[2] |
HANDLE
|
BN
Lock, RH
|
| 3. |
BN300689
|
[2] |
HANDLE
|
BN
Lock, LH
|
| 4. |
BN300696
|
[4] |
STOP
|
BN
Handle Lock
|
| 5. |
BN300697
|
[2] |
STOP
|
BN
Venturi, Side
|
| 6. |
BN300698
|
[4] |
STOP
|
BN
Venturi, Bottom
|
| 7. |
BN300699
|
[2] |
FRAME
|
TYR
Airway Mount
|
| 8. |
343300A1
|
[2] |
AIR CHANNEL
|
BN
Way
|
| 9. |
BN15717
|
[4] |
PIN
|
BN
Snap, 1/4" x 1 3/4"
|
| 10. |
87267764
|
[1] |
BRACKET
|
BN
RH RR Tube
|
| 11. |
87267763
|
[1] |
BRACKET
|
BN
LH RR Tube
|
| 12. |
BN50254
|
[4] |
BOLT,3/8"-16 x 1", Stainless
|
BN
|
| 13. |
BN302845
|
[4] |
AIR HOSE,27.00"
|
BN
|
| 14. |
NS
|
[1] |
NOT SERVICED
|
BAS
Fan Group, 6" Ccw-With Screen
|
| 16. |
BN303334
|
[4] |
SEAL
|
BN
Airway, Side
|
| 17. |
BN303335
|
[4] |
DOOR SEAL
|
BN
Airway, Top & Bottom
|
| 18. |
BN50142
|
[20] |
WASHER,5/16", Stainless Steel
|
BN
|
| 19. |
BN50146
|
[28] |
WASHER,3/8", Stainless
|
BN
|
| 20. |
BN50212
|
[20] |
BOLT,1/4"-20 x 3/4", Stainless Steel
|
BN
|
| 21. |
BN50232
|
[16] |
BOLT,5/16"-18 x 1.00", Stainless Steel
|
BN
|
| 22. |
BN50234
|
[4] |
BOLT,5/16"-18 X 1-1/4", Stainless Steel
|
BN
|
| 23. |
BN50241
|
[4] |
BOLT,5/16"-18 X 2-1/4", Stainless Steel
|
BN
|
| 24. |
BN50258
|
[4] |
BOLT,3/8"-16 X 1.25", Stainless
|
BN
|
| 25. |
BN50260
|
[4] |
BOLT,3/8"-16 x 1-1/2", Stainless Steel
|
CUR
Superseded by part number: 113-2234
|
| 26. |
BN50267
|
[16] |
BOLT,3/8"-16 x 2", Stainless Steel
|
BN
|
| 27. |
BN50759
|
[40] |
LOCK NUT,3/8"-16, Nylon, Stainless
|
BN
|
| 28. |
BN55359
|
[20] |
LOCK NUT,1/4"-20, SS
|
BN
|
| 29. |
BN55361
|
[24] |
NUT,5/16"-18, Nylon, Stainless
|
BN
|
| 30. |
BN68086
|
[8] |
CAP
|
BN
Rnd, Rubber, .25 ID x 1.00
|
| 31. |
BN68580
|
[2] |
GASKET
|
BN
Fan To Airway
|
| 32. |
BN23452
|
[20] |
WASHER,13/32" x 1.25 " OD x 12 GA, SS
|
BN
|
