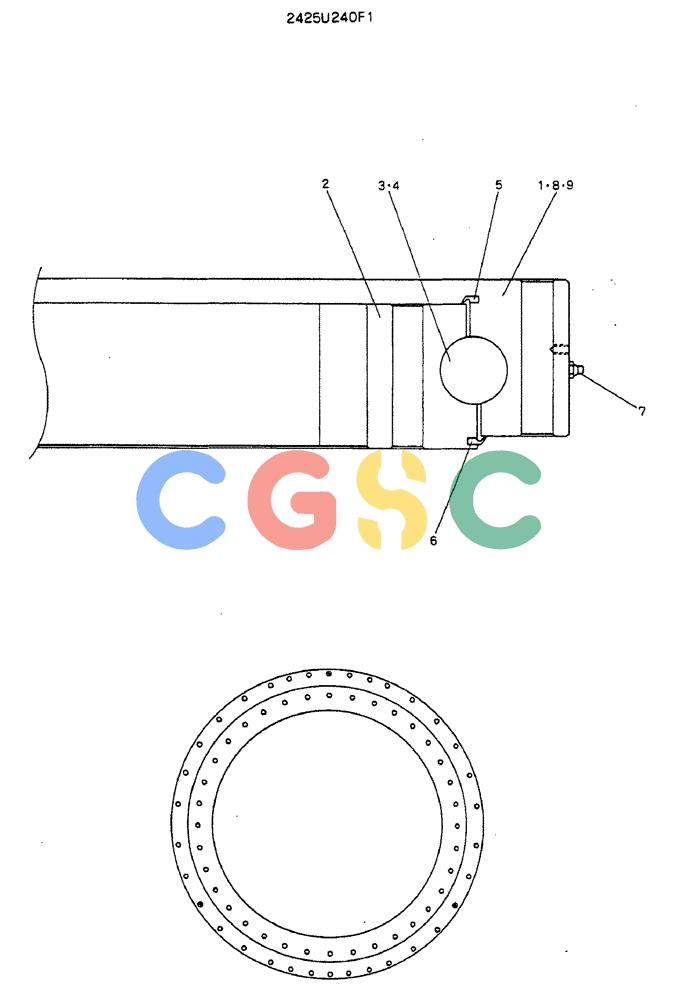

神钢零件查询(MD320BLC) - EXCAVATOR BTW YC0301 - YC0747 (1/80-12/06) (06-007) - RING, SLEWING Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
846 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2425U240F1 | [1] | RING, SLEWING | RING, SLEWING |
| 1. | NSS | [1] | NOT SOLD SEPARAT | CONRACE, OUTER |
| 2. | NSS | [1] | NOT SOLD SEPARAT | CONRACE, INNER |
| 3. | 2425T277 | [70] | BALL | KOB |
| 4. | 2425U240S4 | [70] | RETAINER | KOB |
| 5. | 2425U240S5 | [1] | SEAL | KOB Superseded by part number: 2425U239S6 |
| 6. | 2425U240S6 | [1] | SEAL | KOB Superseded by part number: 2425U239S6 |
| 7. | ZG91S02000 | [1] | LUBE NIPPLE,1/8" NPT x 1/8" NPT | KOB1/8" PT -- Straight |
| 8. | NSS | [1] | NOT SOLD SEPARAT | CONPLUG |
| 9. | 2419T1964D8 | [1] | PIN, TAPER OD 10 x 110mm Long | PIN, TAPER OD 10 x 110mm Long |
