神钢零件查询(MD400LC) - EXCAVATOR BTW YS0101 - YS0200 (1/80-12/06) (02-009) - BOX ASSY, TOOL Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
309 次

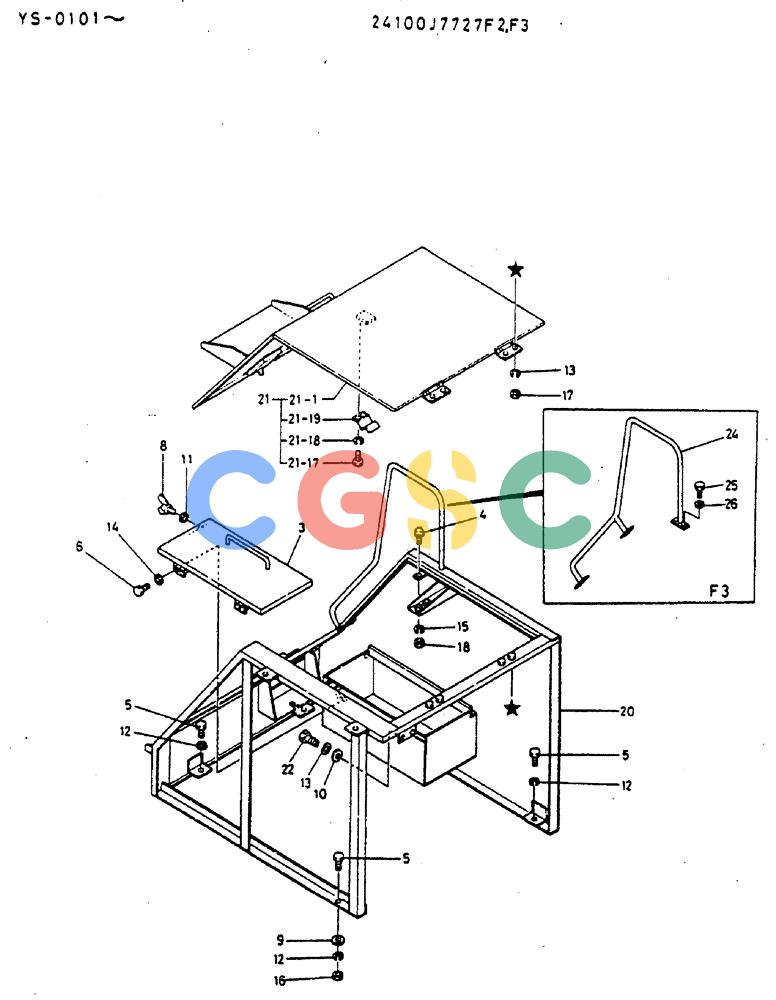

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J7727F2 | [1] | CAM | CAM |
| 3. | 2414N2899 | [1] | COVER | |
| 4. | 2416T6682 | [4] | RUBBER BAND | KOBRUBBER, CUSHION |
| 5. | 2S18C12020 | [6] | CAPSCREW | |
| 6. | ZS18C06014 | [4] | SCREW,Hex, M6 x 14mm | KOBM06x1.0x14mm |
| 8. | 2420R220D7 | [1] | BOLT | |
| 9. | ZW16X12000 | [2] | WASHER | KOBID 12 x OD 24 x Th 2.3mm |
| 10. | 2418T5373C2 | [2] | WASHER | KOBID 11 x OD 30 x Th 3.20mm Superseded by part number: 2418T12346 |
| 11. | ZW16X06000 | [1] | WASHER | KOBID 06 x OD 12.5 x Th 1.6mm Superseded by part number: 86588450 |
| 12. | ZW26X12000 | [6] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm |
| 13. | ZW26X10000 | [6] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 14. | ZW26X06000 | [4] | LOCK WASHER | KOBID 06 x OD 07 x Th 1.5mm |
| 15. | ZW26X03000 | [4] | LOCK WASHER | HIT |
| 16. | ZN18C12010 | [2] | NUT | KOBM12x1.75mm |
| 17. | ZN18C10008 | [4] | NUT | KOBM10x1.50mm |
| 18. | ZN18C05004 | [4] | NUT | KOBM05x0.8mm |
| 20. | 2414X442 | [1] | CAM YS. 0101 to YS. 0112 | CAM YS. 0101 to YS. 0112 |
| 21. | 2414J1604F1 | [1] | COVER | COVER |
| 21-1. | 2414J1604 | [1] | COVER | |
| 21-17. | ZS18C06008 | [2] | CAPSCREW,Hex, M6 x 8mm | KOBSCREW M06x1.0x08mm |
| 21-18. | ZW26X06000 | [2] | LOCK WASHER | KOBID 06 x OD 07 x Th 1.5mm |
| 21-19. | B16T0530 | [1] | CLIP | CLIP |
| 22. | ZS18C10025 | [2] | SCREW,Hex, M10 x 25mm | KOBM10x1.50x25mm |
| 23. | 2414X442D2 | [1] | BOX, TOOL YS., Start Serial: 0113 | |
| 24. | 2428P164 | [1] | RAIL, HAND YS., Start Serial: 0113 | |
| 25. | ZS18C08C16 | [6] | CAPSCREW YS., Start Serial: 0113 | |
| 26. | ZW26X08000 | [6] | LOCK WASHER | KOBLock -- ID 08 x OD 15 x Th 2.0mm YS., Start Serial: 0113 Superseded by part number: 83990583 |
