神钢零件查询(MD400LC) - EXCAVATOR BTW YS0101 - YS0200 (1/80-12/06) (02-010) - INSULATOR ASSY, SOUND Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
462 次

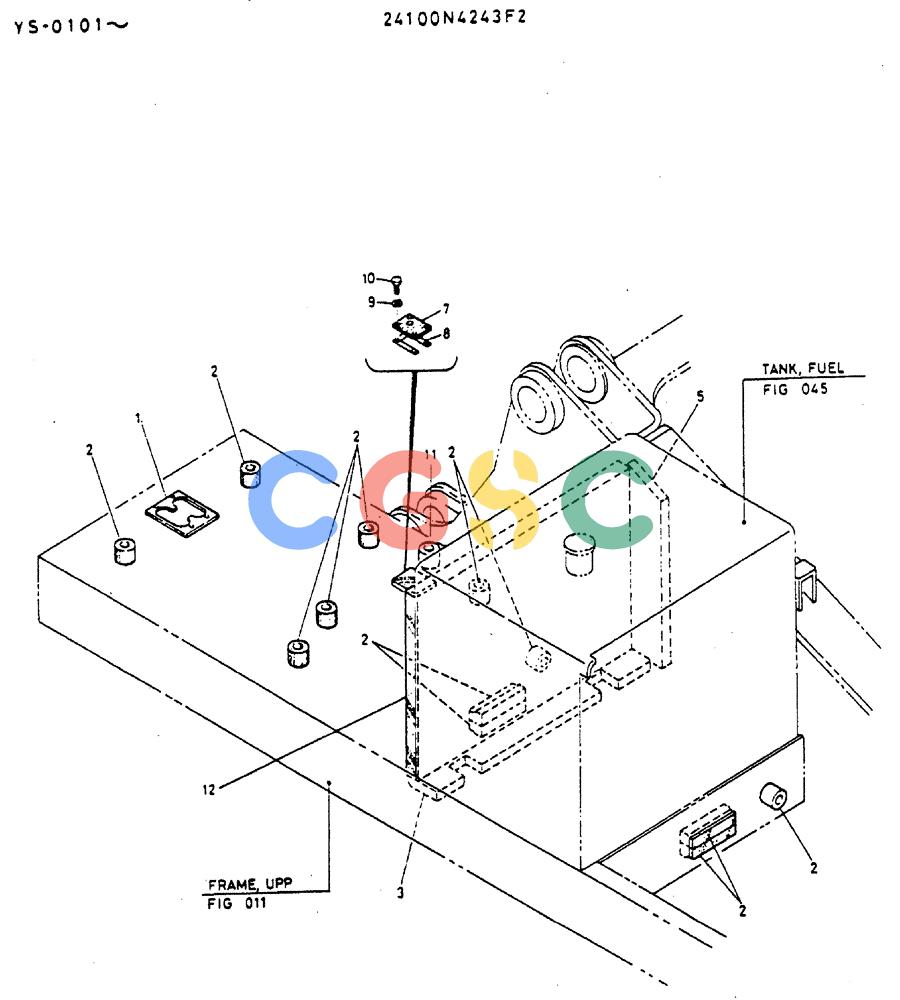

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100N4243F2 | [1] | INSULATOR ASSY, SOUND | |
| 1. | 2416T16004 | [1] | SHEET, RUBBER | |
| 2. | 2474T1511 | [11] | INSULATION, SOUND | |
| 3. | 2479T1519 | [1] | INSULATOR | |
| 5. | 2479T1521 | [1] | INSULATOR | |
| 7. | 2416T1 7259 | [1] | SHEET, RUBBER | |
| 8. | 2418T15297 | [1] | PLATE | |
| 9. | ZW26X06000 | [4] | LOCK WASHER | KOBID 06 x OD 07 x Th 1.5mm |
| 10. | ZS18C06015 | [4] | BOLT | |
| 11. | 2420Z1042 | [1] | GROMMET | KOB Superseded by part number: 2420Z1301 |
| 12. | 2416Z567 | [1] | INSULATOR | |
