神钢零件查询(MD400LC) - EXCAVATOR BTW YS0101 - YS0200 (1/80-12/06) (02-011) - COVER ASSY, UNDER/ P.N. 24100J7759F6 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
330 次

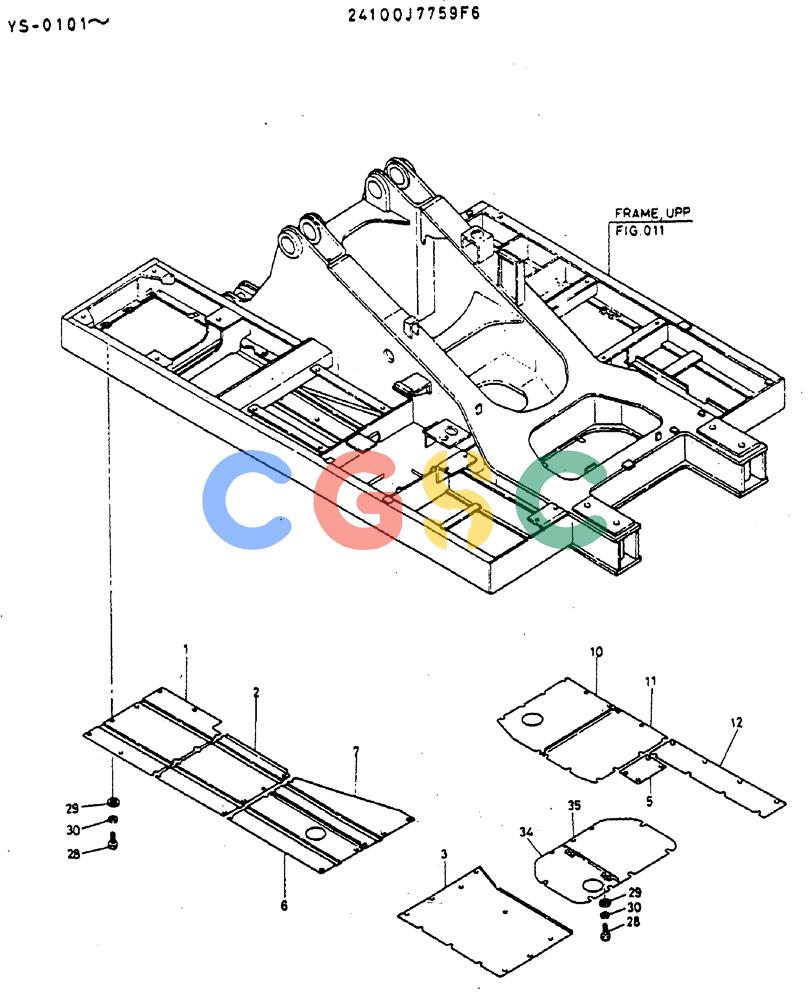

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J7759F6 | [1] | COVER ASSY, UNDER | |
| 1. | 2414P4800 | [1] | COVER | COVER |
| 2. | 2414P5369 | [1] | COVER | COVER |
| 3. | 2414P4838 | [1] | COVER | |
| 5. | 2414P3499 | [1] | COVER | |
| 6. | 2414P4803 | [1] | COVER | COVER |
| 7. | 2414P4804 | [1] | COVER | COVER |
| 10. | 2414P4807 | [1] | COVER | |
| 11. | 2414P4809 | [1] | COVER | |
| 12. | 2414P481001 | [1] | COVER | |
| 28. | ZS18C10030 | [73] | SCREW,Hex, M10 x 30mm | KOBM10x1.50x30mm |
| 29. | 2418T5373C2 | [73] | WASHER | KOBID 11 x OD 30 x Th 3.20mm Superseded by part number: 2418T12346 |
| 30. | ZW26X10000 | [173] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 34. | 2414P5069 | [1] | COVER | KOB |
| 35. | 2414P5370 | [1] | COVER | COVER |
