神钢零件查询(MD400LC) - EXCAVATOR BTW YS0101 - YS0200 (1/80-12/06) (09-033) - VALVE ASSY, CONTROL Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
262 次

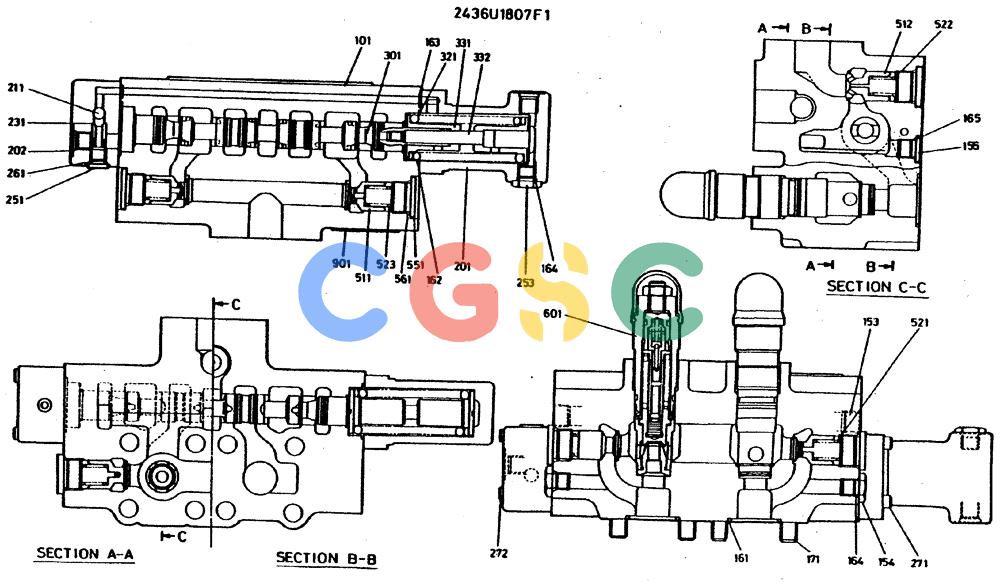

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2436U1807F1 | [1] | VALVE | KOBCONSITS OF THE FOLLOWING PARTS |
| 101. | 2436U1745S101 | [1] | CASING | |
| 153. | ZS62T06000 | [2] | PLUG | |
| 155. | 2436U1807S155 | [1] | PLUG | PLUG |
| 161. | ZD12G03500 | [2] | O-RING,34.40mm ID x 40.60mm OD x 3.10mm | KOBID 34.40 ± 0.33 x OD 40mm |
| 162. | 2436U665S262 | [2] | O-RING | KOB Superseded by part number: 2436U1457S162 |
| 163. | ZD12P00700 | [2] | O-RING,1.6mm Thk x 6.8mm ID, 90 Duro | KOBO-Ring -- ID 06.80 ± 0.16 x OD 10mm |
| 164. | ZD12P01100 | [5] | O-RING | KOBID 10.8mm x OD 13.2mm |
| 165. | ZD12P01200 | [1] | O-RING | KOBID 11.80 ± 0.19 x OD 16mm |
| 171. | ZS23C12110 | [8] | SCREW,Hex Socket Head, M12 x 110mm | KOBM12x1.75x110mm Superseded by part number: ZS28C12110 |
| 201. | 2436U1745S201 | [1] | COVER | |
| 202. | 2436U1745S202 | [1] | COVER | |
| 211. | 2483U172S19 | [1] | BALL | KOB |
| 231. | 2436U1745S231 | [1] | SEAT | |
| 251. | 2436U1807S251 | [1] | PLUG | PLUG |
| 253. | 2441U667S466 | [3] | PLUG | KOB1/4" PF |
| 246. | ZD12P01000 | [1] | O-RING | KOBID 09.80 ± 0.17 x OD 13mm |
| 271. | ZS23C06025 | [4] | SCREW,Hex Socket Head, M6 x 25mm | KOBM06x1.0x25mm |
| 272. | ZS23C06040 | [4] | SCREW,Hex Socket Head, M6 x 40mm | KOBM06x1.0x40mm |
| 301. | 2436U1807S301 | [1] | SPOOL | |
| 321. | 2436U1745S321 | [1] | SPRING | SPRING |
| 331. | 2436U1745S331 | [2] | SEAT, SPRING | |
| 332. | 2436U665S334 | [1] | SCREW | KOB Superseded by part number: 2436U1431S332 |
| 511. | 2436U666S511 | [4] | POPPET | POPPET |
| 512. | 2436U666S512 | [1] | POPPET | POPPET |
| 521. | 2436U666S521 | [2] | SPRING | SPRING |
| 522. | 2436U1745S522 | [1] | SPRING | KOB |
| 523. | 2436U1745S523 | [2] | SPRING | |
| 551. | 2436U1795S151 | [5] | PLUG | |
| 561. | ZD12P02200 | [5] | O-RING | KOBID 21.80 ± 0.24 x OD 26mm |
| 601. | 2436R1158F1 | [2] | VALVE PRESSURE RELIE | KOBVALVE, RELIEF |
| 901. | 2436U1807S901 | [1] | NAME-PLATE | |
| . . | 2436U1807R10 | [1] | KIT | KOBREPAIR KIT CONSITS OF REF101, 153, 155, 164, 165, 301, 321, 331, 332, 511, 512, 521, 522, & 551 |
| . . | 2436U1807R20 | [1] | REPAIR KIT | KOBREPAIR KIT CONSIST OF REF 202, 211, 231, 251, & 261 |
