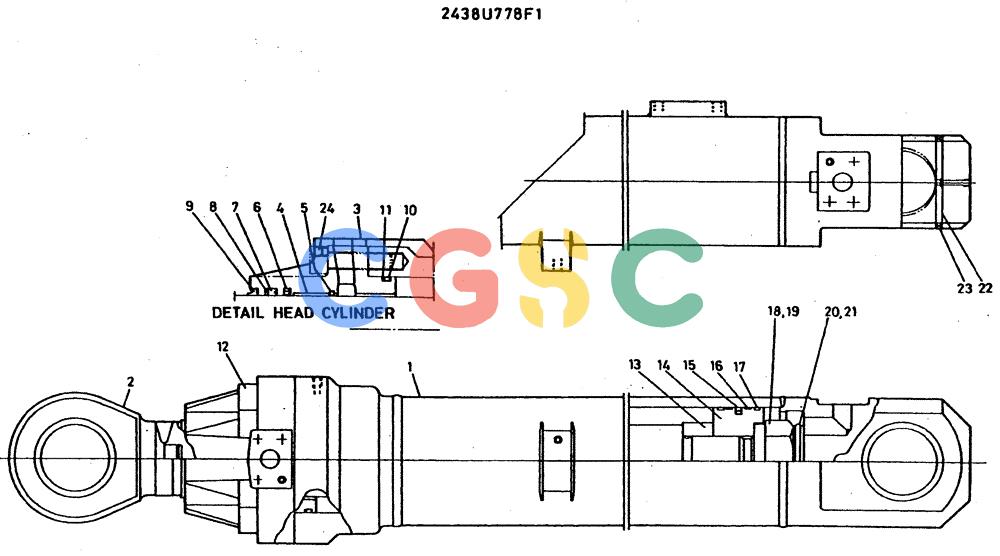

神钢零件查询(MD400LC) - EXCAVATOR BTW YS0101 - YS0200 (1/80-12/06) (09-048) - CYLINDER ASSY, BUCKET/ P.N. 2438U778F1 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
164 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2438U778F1 | [1] | BUCKET CYLINDER | KOBCONSITS OF THE FOLLOWING PARTS |
| 1. | 2438U778S1 | [1] | TUBE, CYLINDER | |
| 2. | 2438U778S2 | [1] | ROD, PISTON | ROD, PISTON |
| 3. | 2438U778S3 | [1] | CYLINDER HEAD | KOB |
| 4. | 2438U1324S4 | [1] | BUSHING | KOB |
| 5. | 2438U1324S5 | [1] | SNAP RING | KOB |
| 6. | 2438U1324S6 | [1] | RING | KOB |
| 7. | 2438U1324S7 | [1] | O-RING | KOB |
| 8. | 2438U1324S8 | [1] | RING | KOB |
| 9. | 2438U1324S9 | [1] | WIPER ARM | KOB Superseded by part number: 2438U1170S32 |
| 10. | 2438U1324S10 | [1] | O-RING | O-RING |
| 11. | 2438U1324S11 | [1] | BACK-UP RING | KOB |
| 12. | 2438U1324S12 | [8] | CAPSCREW | CAPSCREW |
| 13. | 2438U1324S13 | [1] | SPACER | KOB |
| 14. | 2438U1324S14 | [1] | PISTON | KOB |
| 15. | 2438U1324S15 | [1] | SEALING RING | KOB |
| 16. | 2438U1324S16 | [2] | RING | KOB |
| 17. | 2438U1324S17 | [2] | RING | KOB |
| 18. | 2438U1324S18 | [1] | NUT | KOB |
| 19. | 2438U1324S19 | [1] | SHIM | KOB |
| 20. | 2438U1324S20 | [1] | PIN | KOB |
| 21. | 2438U1324S21 | [1] | SNAP RING | KOB |
| 22. | 2438U1324S22 | [2] | BUSHING | KOB |
| 23. | 2438U1323S23 | [4] | WIPER BLADE | KOB Superseded by part number: 2445R138D8 |
| 24. | ZE82T04000 | [1] | PLUG | KOB1/4" PT |
| . . | 2438U1324R10 | [1] | REPAIR KIT | KOBREPAIR KIT CONSISTS OF REF 4 - 11, 15, 16, 17, 19, & 23 |
| . . | 2438U778R20 | [1] | PARTS KIT REPAIR KIT CONSISTS OF REF 1 - 22 | PARTS KIT REPAIR KIT CONSISTS OF REF 1 - 22 |
| . . | 2438U778R30 | [1] | PARTS KIT REPAIR KIT CONSISTS OF REF 2 - 22 | PARTS KIT REPAIR KIT CONSISTS OF REF 2 - 22 |
