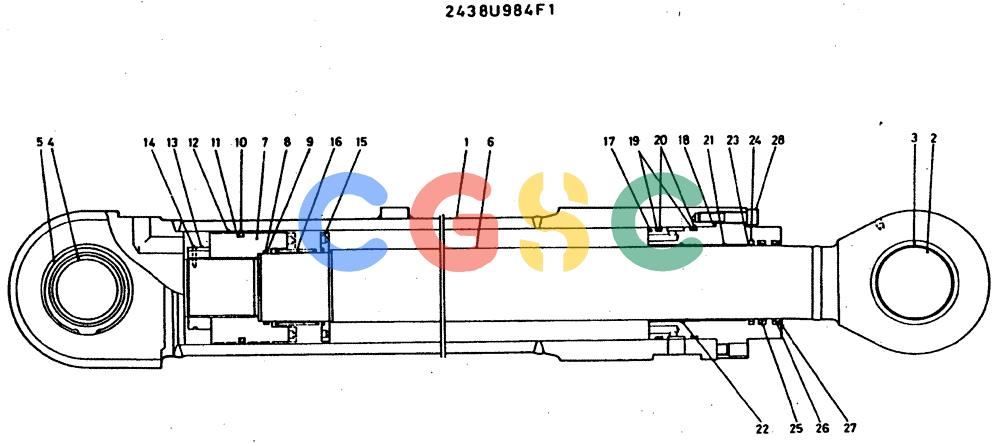

神钢零件查询(MD400LC) - EXCAVATOR BTW YS0101 - YS0200 (1/80-12/06) (09-049) - CYLINDER ASSY, BOOM Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
528 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2438U984F1 | [1] | CYLINDER, BOOM CONSITS OF THE FOLLOWING PARTS | CYLINDER, BOOM CONSITS OF THE FOLLOWING PARTS |
| 1. | 2438U984S1 | [1] | TUBE | KOB |
| 2. | 2438U662S2 | [1] | BUSHING | KOB |
| 3. | 2438U662S3 | [2] | SEAL | KOB Superseded by part number: 2445R138D10 |
| 4. | 2438U662S4 | [1] | BEARING, SPHERICAL | BEARING, SPHERICAL |
| 5. | 2438U662S5 | [2] | SNAP RING | KOB |
| 6. | 2438U662S6 | [1] | PISTON ASSY | KOBROD, PISTON |
| 7. | 2438U662S7 | [1] | MANIFOLD | MANIFOLD |
| 8. | ZD12G10500 | [1] | O-RING,104.40mm ID x 110.60mm OD x 3.10mm | KOBID 14.80 ± 0.20 x OD 19mm |
| 9. | ZD75G10500 | [2] | BACK-UP RING | KOB |
| 10. | 2438U984S10 | [1] | SEAL | KOB |
| 12. | R45T0014D8 | [4] | WEAR RING | KOB |
| 13. | 2438U662S13 | [1] | NUT | KOB |
| 14. | 2438U662S14 | [1] | RING | KOBRING Superseded by part number: 2438U324S35 |
| 15. | 2438U662S15 | [1] | PLATE | PLATE |
| 16. | 2438U662S16 | [1] | SPRING | KOB |
| 17. | 2438U662S17 | [1] | COVER | |
| 18. | 2438U324S32 | [1] | O-RING | KOB |
| 19. | ZD12G16000 | [2] | O-RING,159.30mm ID x 170.70mm OD x 5.70mm | KOB |
| 20. | 2445R216D22 | [2] | RING, BACK-UP | RING, BACK-UP |
| 21. | 2438U334S16 | [1] | BUSHING | KOB |
| 22. | 2418U112D81 | [1] | CIRCLIP | KOB |
| 23. | R45P0050D12 | [1] | SEAL | KOB |
| 24. | R45P0051D28 | [1] | O-RING | O-RING |
| 25. | 2418U130D23 | [1] | KIT | KOB |
| 26. | 2438U510S29 | [1] | SEAL, DUST | SEAL, DUST |
| 27. | 2438U323S22 | [1] | CLIP | KOB |
| 28. | ZS23C16070 | [16] | SCREW,Hex Socket Head, M16 x 70mm | KOBM16x2.0x70mm |
| . . | 2438U662R100 | [1] | REPAIR KIT | KOBREPAIR KIT CONSISTS OF REF 18, 19, 20, 23, 24, 25, & 26 |
| . . | 2438U984R200 | [1] | REPAIR KIT REPAIR KIT CONSISTS OF REF 8, 9, 10, & 12 | REPAIR KIT REPAIR KIT CONSISTS OF REF 8, 9, 10, & 12 |
