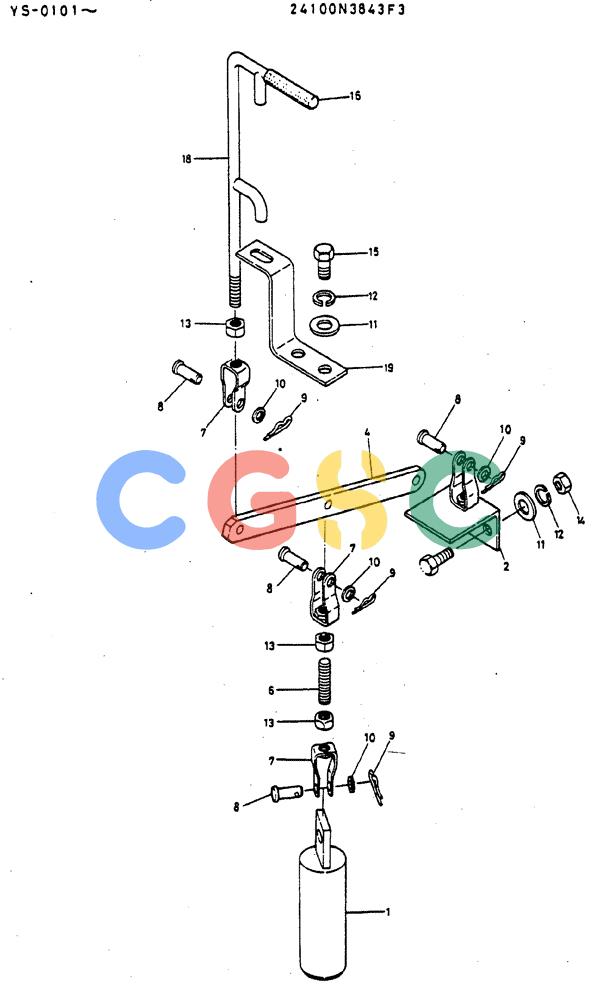

神钢零件查询(MD400LC) - EXCAVATOR BTW YS0101 - YS0200 (1/80-12/06) (03-005) - LOCK ASSY, SWING Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
810 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100N3843F3 | [1] | LOCK ASSY, SWING | |
| 1. | 2419T4527 | [1] | LOCK PIN | KOB |
| 2. | 2416T15425 | [1] | BRACKET | BRACKET |
| 4. | 2406T2236 | [1] | LEVER | KOB |
| 6. | 2420T5554D1 | [1] | ROD | KOB |
| 7. | ZJ11F10045 | [3] | YOKE | KOB |
| 8. | ZP45X10027 | [4] | PIN | KOB |
| 9. | 2419R9D3 | [4] | PIN | KOBHair -- OD 10mm x 32.6mm Long |
| 10. | ZW16K10000 | [4] | WASHER | KOBID 10.5 x OD 18 x Th 2.0mm |
| 11. | 2418T5373C2 | [4] | WASHER | KOBID 11 x OD 30 x Th 3.20mm Superseded by part number: 2418T12346 |
| 12. | ZW26X10000 | [4] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 13. | ZN18F10008 | [3] | NUT | KOBM10x1.25mm |
| 14. | ZN18C10008 | [2] | NUT | KOBM10x1.50mm |
| 15. | ZS18C10025 | [2] | SCREW,Hex, M10 x 25mm | KOBM10x1.50x25mm |
| 16. | 2414Z270D2 | [1] | CAP | KOB |
| 18. | 2420T5885 | [1] | ROD | KOB |
| 19. | 2416T18000 | [1] | BRACKET | BRACKET |
