神钢零件查询(MD400LC) - EXCAVATOR BTW YS0101 - YS0200 (1/80-12/06) (04-002) - HYDR LINES, UPP/ P.N. 24100X1369F1 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
844 次

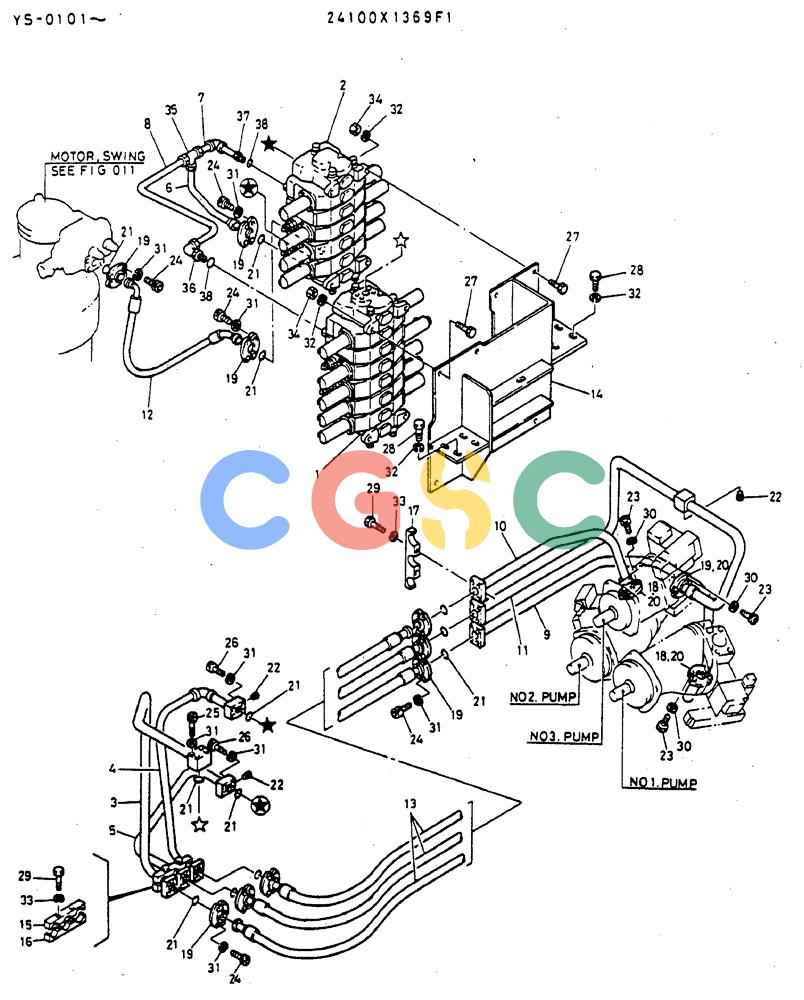

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100X1369F1 | [1] | HYDR LINES, UPP | |
| 1. | 2436U1257F1 | [1] | VALVE, CONTROL | VALVE, CONTROL |
| 2. | 2436U1256F1 | [1] | CONTROL VALVE | KOB |
| 3. | 2418P12395 | [1] | TUBE | KOB |
| 4. | 2418P17288 | [1] | TUBE | KOB |
| 5. | 2418P17289 | [1] | TUBE | TUBE |
| 6. | 2418P17290 | [1] | TUBE | |
| 7. | 2418T15716 | [1] | TUBE | TUBE |
| 8. | 2418T17689 | [1] | TUBE | TUBE |
| 9. | 2418P14598 | [1] | TUBE | KOB |
| 10. | 2418P14599 | [1] | TUBE | KOB |
| 11. | 2418P10916 | [1] | RIGID TUBE | KOB |
| 12. | 2444R958D1 | [1] | HOSE | KOB |
| 13. | ZX28P16110 | [3] | FLEXIBLE HOSE | KOB |
| 14. | 2416J822 | [1] | STAND, VALVE | |
| 15. | 2432T2711D1 | [1] | CLAMP | CLAMP |
| 16. | 2432T2711D2 | [1] | CLAMP | CLAMP |
| 17. | 2432T1923D2 | [1] | CLAMP | KOB |
| 18. | ZE13X20001 | [4] | CLAMP | KOBHalf -- (Incls. Capscrew & Lockwasher) Superseded by part number: ZE13X20000 |
| 19. | ZE13X16000 | [20] | FLANGE | KOBClamp, Half -- (Incls. Capscrew & Lockwasher) |
| 20. | ZD12P03800 | [2] | O-RING | KOBID 37.70 ± 0.37 x OD 44.7mm |
| 21. | ZD12P03400 | [13] | O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro | KOBID 33.70 ± 0.33 x OD 40mm |
| 22. | ZE82T04000 | [4] | PLUG | KOB1/4" PT |
| 23. | 2420N458D14045 | [8] | CAPSCREW | |
| 24. | 2420N458D12040 | [40] | SCREW,Hex Socket Head, M12 x 40mm | KOB Superseded by part number: ZS28C12040 |
| 25. | 2420N458D12060 | [4] | CAPSCREW | |
| 26. | 2420N458D12045 | [8] | SCREW,Hex Socket Head, M12 x 45mm | KOB Superseded by part number: ZS28C12045 |
| 27. | ZS18C16060 | [6] | SCREW,Hex, M16 x 60mm | KOBM16x2.0x60mm |
| 26. | ZS18C16035 | [8] | SCREW,Hex, M16 x 35mm | KOBM16x2.0x35mm |
| 29. | ZS18C12045 | [4] | SCREW,Hex, M12 x 45mm | KOBM12x1.75x45mm |
| 30. | ZW26K14000 | [8] | LOCK WASHER | KOBID 14 x OD 21.8 x Th 3.5mm |
| 31. | ZW26K12000 | [52] | LOCK WASHER | KOBID 12 x OD 17.8 x Th 2.5mm |
| 32. | ZW26X16000 | [14] | LOCK WASHER | KOBID 16 x OD 28 x Th 4.0mm |
| 33. | ZW26X12000 | [4] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm |
| 34. | ZN18C16013 | [6] | NUT | KOBM16x2.0mm |
| 35. | ZF53B28000 | [1] | TEE | TEE |
| 36. | ZF33F28012 | [1] | ELBOW | KOBCONNECTOR Superseded by part number: ZA33F28012 |
| 37. | ZF23F28012 | [1] | HYD CONNECTOR | KOB |
| 38. | ZD12P02400 | [2] | O-RING | KOBID 23.70 ± 0.24 x OD 30mm |
