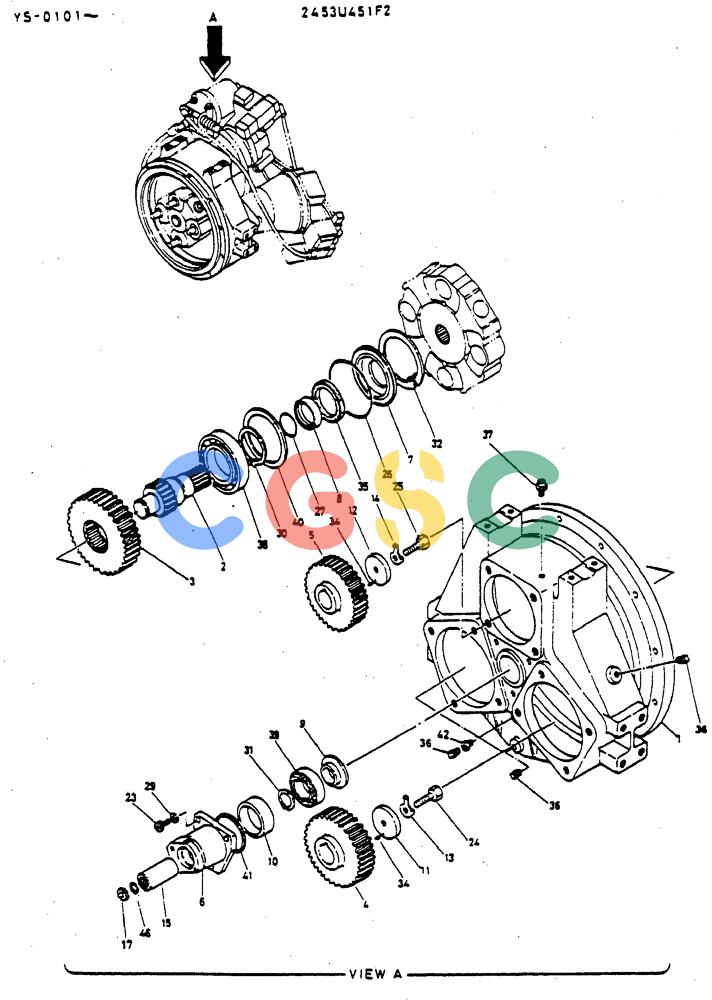

Pos.	Part No	Qty	Parts name	Comments
. .	2453U451F2	[1]	REDUCER	KOB
1.	2453U451S1	[1]	CASE	CASE
2.	2453U451S2	[1]	SHAFT	KOB
3.	2453U451S3	[1]	GEAR	KOB
4.	2453U451S4	[2]	GEAR	KOB
5.	2453U451S5	[1]	GEAR	GEAR
6.	2453U410S7	[1]	BASE	KOB
7.	2453U451S7	[1]	CASE	CASE
8.	2453U451S8	[1]	PIECE	PIECE
9.	2453U451S9	[1]	SPACER	KOB
10.	2453U451S10	[1]	COLLAR	KOB
11.	2453U410S14	[2]	PLATE	PLATE
12.	2453U410S15	[1]	PLATE	KOB
13.	2453U417S16	[2]	PLATE	PLATE
14.	2453U417S15	[1]	PLATE	PLATE
15.	2453U451S15	[1]	COUPLING	KOB
17.	2453U230S20	[1]	COUPLING	KOB
23.	ZS23C10050	[3]	SCREW,Hex Socket Head, M10 x 50mm	KOBM10x1.50x50mm
24.	ZS13C16040	[2]	SCREW	KOBM16x2.0x40mm
25.	ZS13C12035	[1]	CAPSCREW	KOBSCREW M12x1.75x35mm Superseded by part number: ZS18C12035
26.	ZD11G13000	[1]	O-RING,129.40mm ID x 135.60mm OD x 3.10mm	KOB
27.	ZD11G05500	[1]	O-RING,54.40mm ID x 60.60mm OD x 3.10mm	KOBID 54.40 ± 0.49 x OD 60mm
29.	ZW22K10000	[3]	LOCK WASHER	KOBLock -- ID 10.2 x OD 15.7 x Th 2.5mm
30.	ZR16X06500	[1]	SNAP RING	KOBRetaining -- ID 65 x OD 81 x Th 2.5mm
31.	ZR16X04000	[1]	RING	KOBRetaining -- ID 37 x OD 40 x Th 1.8mm
32.	2453U451S32	[1]	RING, RETAINER	RING, RETAINER
34.	2453U147S33	[3]	PIN	KOB
35.	2453U451S35	[1]	SEAL, OIL	SEAL, OIL
36.	ZE72T08000	[3]	PLUG	KOB
37.	2453U147S36	[1]	BREATHER	KOB
38.	2453U451S38	[1]	BEARING	BEARING
39.	2453U451S39	[1]	BEARING	BEARING
40.	2453U451S10	[1]	COLLAR	KOB
41.	2453U410S22	[1]	PACKING	PACKING
42.	2453U451S42	[1]	BUSHING	KOB
46.	ZR26X02800	[1]	RING	KOB
