神钢零件查询(MD400LC) - EXCAVATOR BTW YS0101 - YS0200 (1/80-12/06) (05-008) - PANEL ASSY, INST Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
411 次

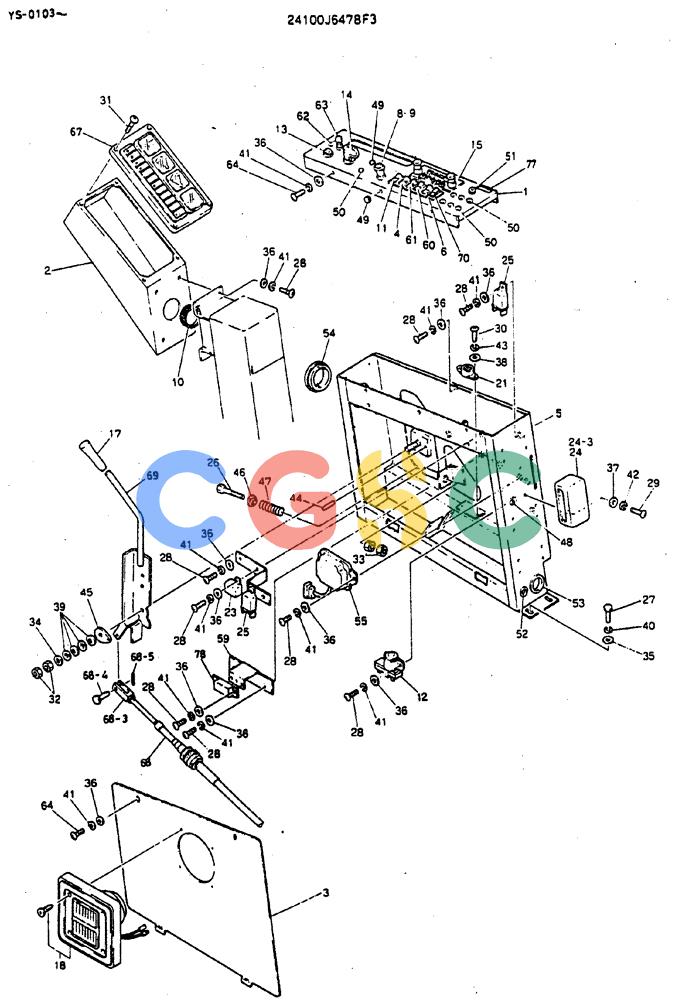

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J6478F3 | [1] | PANEL ASSY, INST | |
| 1. | 2416P8565 | [1] | INSTRUMENT PANEL | KOBPANEL INSTRUMENT |
| 2. | 2416P8633 | [1] | BOX BOX | BOX BOX |
| 3. | 2414P3965 | [1] | COVER | KOB |
| 4. | 2479U314D2 | [1] | SWITCH | KOBSWITCH, LIGHT |
| 5. | 2416N3249 | [1] | BRACKET BRACKET | BRACKET BRACKET |
| 6. | 2479U317 | [1] | SWITCH | KOBSWI TCH |
| 8. | 2479Z956 | [1] | LIGHTER LIGHTER | LIGHTER LIGHTER |
| 9. | 2479R708 | [1] | FUSE | KOBFUSE |
| 10. | 2405Z153D5 | [1] | BUSHING | BUSHING |
| 1 1. | 2479U326 | [1] | SWITCH | KOBSWI TCH |
| 15. | 2479U253D2 | [1] | RADIO | KOBTUNER |
| 17. | 2406Z305 | [1] | GRIP | KOBGRIP |
| 18. | 2479U244 | [1] | SPEAKER | KOBSPEAKER |
| 21. | 2479Z699D8 | [1] | BUZZER | KOBBUZZER |
| 23. | 2489U178 | [1] | DIPSTICK | KOBUNIT |
| 24. | 2479R714F1 | [1] | FUSE BOX | KOBBOX, FUSE |
| 24-3. | 2479R714S3 | [7] | FUSE | KOBFUSE |
| 25. | 2479U229 | [2] | RELAY | KOBRELAY ASSY |
| 26. | 2420T4333D7 | [1] | SCREW | KOBCAPSCREW |
| 27. | ZS18C10025 | [4] | SCREW,Hex, M10 x 25mm | KOBM10x1.50x25mm |
| 28. | ZS31C06012 | [11] | SCREW,Phillips Drive, Pan HD, M6 x 12mm | KOBM06x1.0x12mm |
| 29. | ZS31C05016 | [2] | BOLT,Phillips Drive, Pan HD, M5 x 16mm | KOBM05x0.8x16mm |
| 30. | ZS31C04010 | [2] | SCREW,Phillips Drive, Pan HD, M4 x 10mm | KOBM04x0.7x10mm |
| 31. | ZS41C06025 | [4] | SCREW,M6 x 25mm | KOBM06x1.0x25mm |
| 32. | ZN11C12007 | [2] | NUT | KOBM12x1.75mm Superseded by part number: ZN18C12007 |
| 33. | ZN17C10008 | [2] | NUT | KOBM10x1.50mm Superseded by part number: ZN18C10008 |
| 34. | R16T0040 | [1] | WASHER | KOBWASHER Superseded by part number: 2418T12345, 77266155 |
| 35. | ZW16X10000 | [4] | WASHER | KOBID 10 x OD 21 x Th 2.0mm |
| 36. | ZW16K06000 | [15] | WASHER | KOBID 06 x OD 11.5 x Th 1.6mm |
| 37. | ZW16K05000 | [2] | WASHER | KOBID 05 x OD 10 x Th 1.0mm |
| 38. | ZW16K04000 | [2] | WASHER | KOBID 04 x OD 08 x Th 0.8mm |
| 39. | R16T0137D2 | [4] | WASHER | KOBCone Disk Spring -- ID 12.2 x OD 25 x Th 1.6mm |
| 40. | ZW26X10000 | [4] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 41. | ZW26X06000 | [15] | LOCK WASHER | KOBID 06 x OD 07 x Th 1.5mm |
| 42. | ZW2 6X05000 | [2] | LOCKWASHER | |
| 43. | ZW26X04000 | [2] | LOCK WASHER | KOBID 04 x OD 7.6 x Th 1.0mm |
| 44. | ZP26D06032 | [1] | ROLL PIN | KOB |
| 45. | 2418T12715 | [1] | WASHER | KOBWASHER |
| 46. | 2418T12294 | [1] | WASHER | KOBWASHER |
| 47. | 2417T509 | [1] | SPRING | KOBSPRING |
| 48. | R16T0063D3 | [1] | GROMMET | KOBGROMMET |
| 49. | 2420R429D14 | [2] | GROMMET | KOBGROMMET |
| 50. | 2420R429D15 | [7] | GROMMET | KOBGROMMET |
| 51. | 2420R429D4 | [1] | GROMMET | KOBGROMMET |
| 52. | 2420R372D108 | [1] | GROMMET | KOBGROMMET |
| 53. | 2420R372D120 | [1] | GROMMET GROMMET | GROMMET GROMMET |
| 54. | 2420Z1617 | [1] | PLUG | KOBGROMMET |
| 59. | 2416T13190 | [1] | BRACKET | KOBBRACKET |
| 60. | 2479U333 | [1] | THERMOSTAT | KOBWASHER SWITCH, WINDOW |
| 61. | 2479U334 | [1] | THERMOSTAT | KOB |
| 62. | 2432T2289 | [1] | LABEL | KOBSTICKER |
| 64. | ZS18C06012 | [4] | SCREW,Hex, M6 x 12mm | KOBM06x1.0x12mm |
| 67. | 2479U437F3 | [1] | CLUSTER | KOBSEE FIGURE 05-009 |
| 68. | 2406U159D4 | [1] | FLEXIBLE CONTROL | KOB |
| 68-3. | R06T0042D2 | [2] | END | KOB |
| 68-4. | 2419T3314 | [2] | PIN | KOB |
| 68-5. | ZP15K01610 | [2] | COTTER PIN | KOB Superseded by part number: ZP15K01615 |
| 69. | 2406N1108D1 | [1] | LEVER | KOBTHROTTLE |
| 70. | 2479U626 | [1] | SWITCH | KOB |
| 78. | 2479U716 | [1] | RELAY | KOB |
| 12. | ME067624 | [1] | RELAY | SUMHEATER (MITSUBISHI PARTS NO.) Superseded by part number: 346943A1 |
| 13. | ME059701 | [1] | INDICATOR, HEATER (MITSUBISHI PARTS NO.) | |
| 14. | 30890-05200 | [1] | SWITCH, STARTER (MITSUBISHI PARTS NO.) | |
| 55. | ME049103 | [1] | STARTER SAFETY RELAY (MITSUBISHI PARTS NO.) | |
