神钢零件查询(MD400LC) - EXCAVATOR BTW YS0101 - YS0200 (1/80-12/06) (05-009) - CLUSTER ASSY, GUAGE Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
265 次

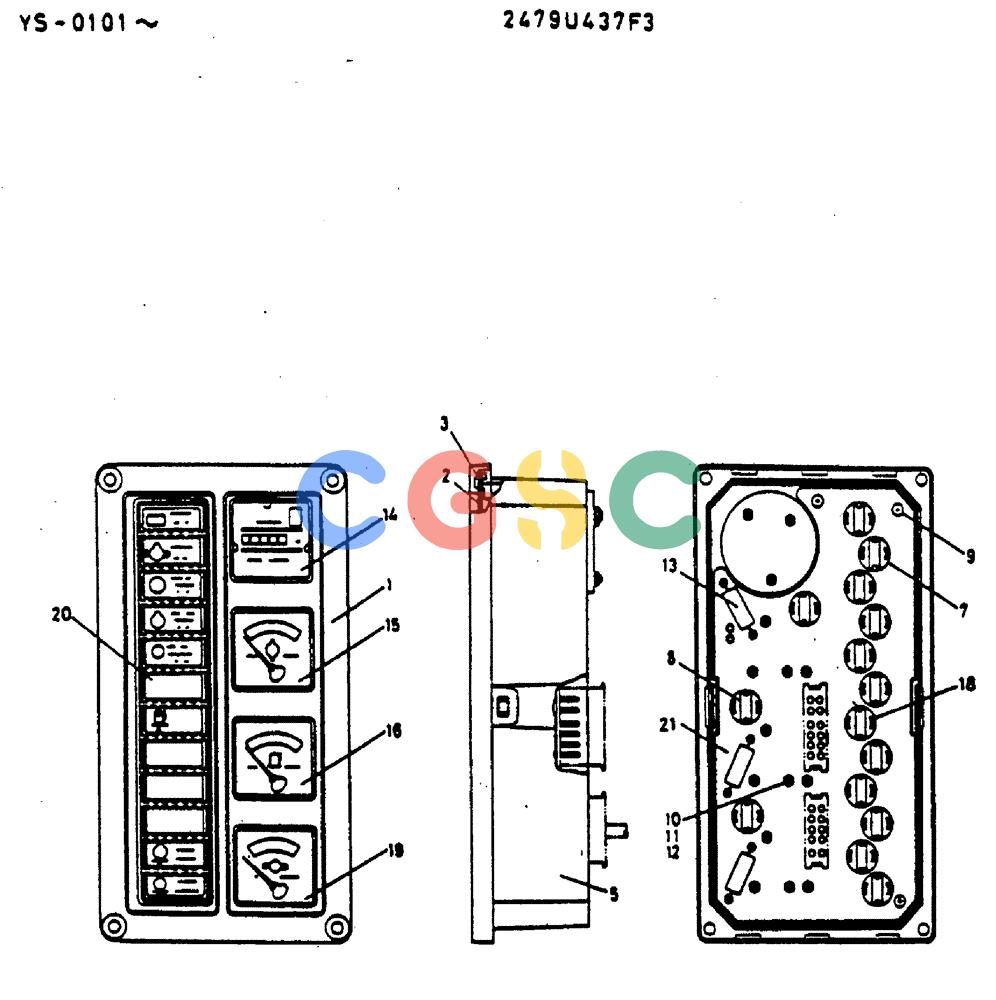

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2479U437F3 | [1] | CLUSTER | KOB |
| 1. | 2479U437S1 | [1] | COVER | KOB |
| 2. | 2479U437S2 | [1] | COVER | KOB |
| 3. | 2479U437S3 | [1] | PLATE | KOB |
| 7. | 2479U437S7 | [11] | BULB | KOB |
| 8. | 2479U437S8 | [3] | BULB | KOB |
| 9. | 2479U437S9 | [3] | SCREW, TAPPING | |
| 10. | 2479U437S10 | [15] | WASHER | |
| 11. | 2479U437S11 | [15] | LOCKWASHER | |
| 12. | 2479U437S12 | [15] | NUT | |
| 14. | 2479U437S14 | [1] | HOURMETER | KOB |
| 15. | 2479U437S15 | [1] | SWITCH | KOB |
| 16. | 2479U437S16 | [1] | FUEL GAUGE | KOB |
| 18. | 2479U437S18 | [1] | BULB | KOB |
| 19. | 2479U437S19 | [1] | GAUGE, AIR PRESS | GAUGE, AIR PRESS |
| 20. | 2479U437S20 | [1] | LENS | KOB |
