神钢零件查询(MD400LC) - EXCAVATOR BTW YS0101 - YS0200 (1/80-12/06) (05-010) - HEATER AND DEFROSTER Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
578 次

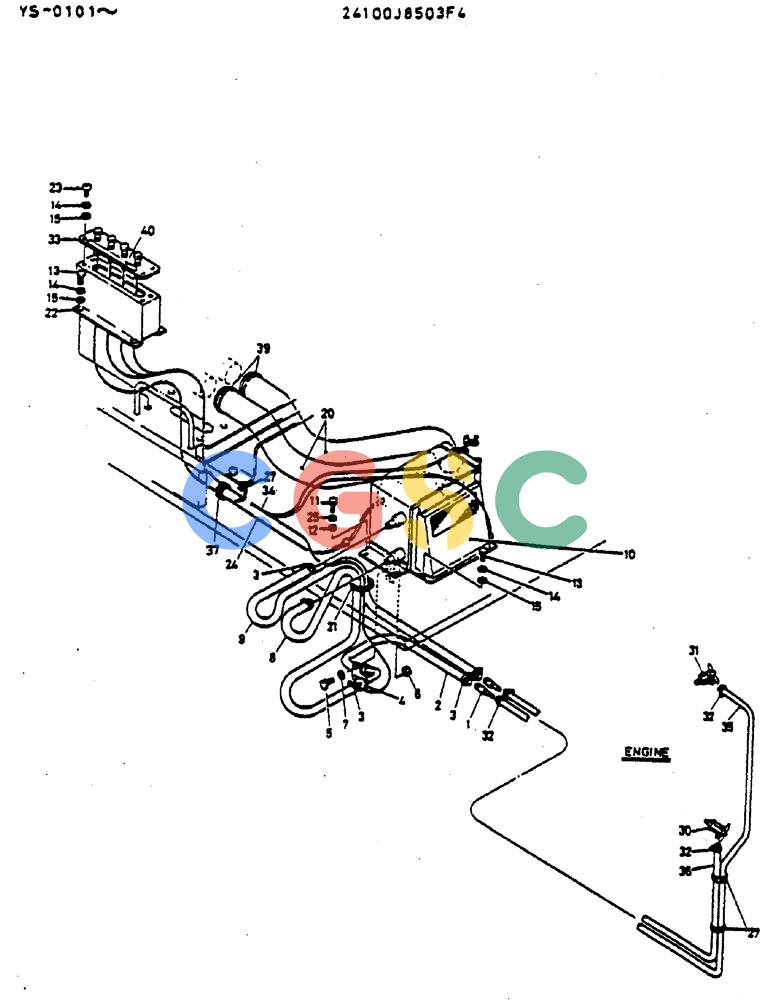

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J8503F4 | [1] | HEATER AND DEFROSTER | |
| 1. | 2418T10455 | [2] | PIPE | KOB |
| 2. | 2444Z2220D1 | [1] | HOSE | KOB |
| 3. | ZC15X02300 | [6] | CLIP | KOB |
| 4. | 2479Z961 | [1] | VALVE | KOB |
| 5. | ZS18C08020 | [2] | SCREW,Hex, M8 x 20mm | KOBM08x1.25x20mm |
| 6. | ZN18C08007 | [2] | NUT | KOBM08x1.25mm |
| 7. | ZW26X08000 | [2] | LOCK WASHER | KOBLock -- ID 08 x OD 15 x Th 2.0mm Superseded by part number: 83990583 |
| 8. | 2444Z2220D5 | [1] | FLEXIBLE HOSE | KOB |
| 9. | 2444Z2220D3 | [1] | HOSE | KOBSEE FIGURE 05-011 |
| 10. | 24100J6257F1 | [1] | HEATER | KOB |
| 1 1. | ZS18C10025 | [4] | SCREW,Hex, M10 x 25mm | KOBM10x1.50x25mm |
| 12. | ZW16X10000 | [4] | WASHER | KOBID 10 x OD 21 x Th 2.0mm |
| 13. | ZS18C06025 | [6] | SCREW,Hex, M6 x 25mm | KOBM06x1.0x25mm |
| 14. | ZW26X06000 | [10] | LOCK WASHER | KOBID 06 x OD 07 x Th 1.5mm |
| 15. | ZW16X06000 | [10] | WASHER | KOBID 06 x OD 12.5 x Th 1.6mm Superseded by part number: 86588450 |
| 20. | 2444Z2354D1 | [2] | HOSE | KOB |
| 21. | 2420Z699 | [1] | GROMMET | KOB |
| 22. | 2416P8644 | [1] | BRACKET | BRACKET |
| 23. | ZS31C06016 | [4] | SCREW,Phillips Drive, Pan HD, M6 x 16mm | KOBM06x1.0x16mm |
| 24. | 2479Z962 | [1] | WIRE HARNESS | KOB |
| 25. | ZW26X10000 | [4] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 27. | 2432Z290 | [10] | CLIP | KOBWire Ties -- 185mm Long Superseded by part number: PY01P01043D3 |
| 30. | R44T0180 | [1] | COCK | KOB |
| 31. | R44T0201 | [1] | HYD CONNECTOR | KOB Superseded by part number: 113700-1381 |
| 32. | R16T0238D1 | [4] | CLIP | KOB |
| 33. | 2418T12752 | [1] | PLATE | |
| 34. | 2406R240 | [1] | FLEXIBLE CONTROL | KOB |
| 35. | R18T0026D39 | [1] | HOSE | KOBID 12 x OD 22 x 4000mm |
| 36. | R18T0026D40 | [1] | FLEXIBLE HOSE | KOB |
| 37. | 2420R372D106 | [1] | GROMMET | KOBGROMMET |
| 39. | ZC15X06000 | [2] | CLIP | KOBCLIP |
| 40. | 2418P12315 | [1] | PLATE | PLATE |
