神钢零件查询(MD400LC) - EXCAVATOR BTW YS0101 - YS0200 (1/80-12/06) (05-011) - HEATER ASSY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
279 次

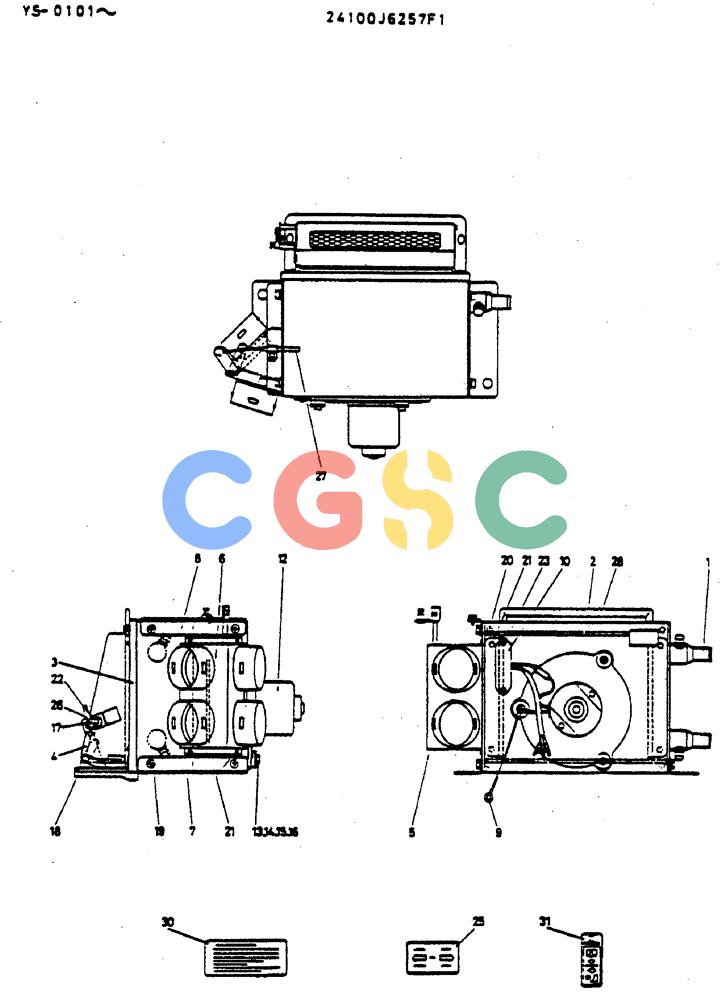

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J6257F1 | [1] | HEATER | KOB |
| 1. | 24100J6257S1 | [1] | PIPE ASSY | PIPE ASSY |
| 2. | 24100J6257S2 | [1] | CASE | |
| 3. | 24100J6257S3 | [1] | COVER | KOB |
| 4. | 2479U371S4 | [1] | DUCT | KOB |
| 5. | 24100J6257S5 | [1] | DUCT | KOB |
| 6. | 2479U371S6 | [1] | FAN | KOB |
| 7. | 24100J6257S7 | [2] | BRACKET | |
| 8. | 24100J6257S8 | [1] | BRACKET | |
| 9. | 2479U371S9 | [1] | HARNESS | KOB |
| 10. | 24100J6257S10 | [1] | RESISTOR | KOB |
| 12. | 2479U371S12 | [1] | MOTOR | KOB |
| 13. | 2479U371S13 | [3] | SCREW | KOB |
| 14. | 2479U371S14 | [3] | INSERT | KOB |
| 15. | 2479U371S15 | [3] | BUSHING | KOB |
| 16. | 24100J6257S16 | [1] | PACKING | KOB |
| 17. | 2479U371S17 | [2] | BRACKET | KOB |
| 18. | 2479U371S18 | [1] | PACKING | KOB |
| 19. | 2479U371S19 | [1] | SET SCREW | KOB |
| 20. | 24100J6257S20 | [4] | SETSCREW | |
| 21. | 2479U371S21 | [8] | SCREW, TAPPING | |
| 22. | 2479U371S22 | [2] | SCREW | KOB |
| 23. | 2479U371S23 | [2] | SCREW | KOBSCREW, TAPPING |
| 25. | 2479U371S25 | [1] | LABEL | KOB |
| 26. | 2406R242 | [1] | WIRE HARNESS | KOBCONTROL |
| 27. | 2406R241 | [1] | WIRE HARNESS | KOBCONTROL |
| 28. | 2479U371S28 | [1] | AIR FILTER | KOB |
| 30. | 2479U371S30 | [1] | PLATE | KOB |
| 31. | 2479U371S31 | [1] | LABEL | KOB |
