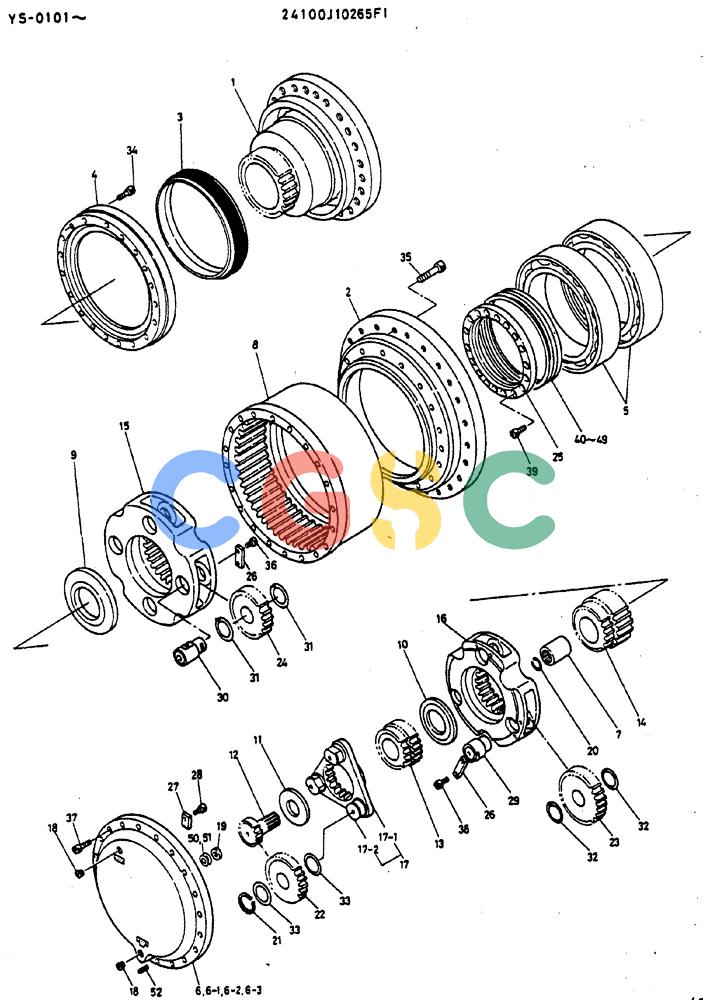

神钢零件查询(MD400LC) - EXCAVATOR BTW YS0101 - YS0200 (1/80-12/06) (06-008) - REDUCTION UNIT/ P.N. 24100J10265F1 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
447 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J10265F1 | [1] | REDUCER | KOB |
| 1. | 2410J271 | [1] | SPINDLE | |
| 2. | 2418J262 | [1] | HUB | |
| 3. | ZD57F34040 | [1] | FLOAT | KOBFLOATING Superseded by part number: ZD58F34040 |
| 4. | 2418N2014 | [1] | RETAINER | KOB |
| 5. | 2425R214 | [2] | BEARING | |
| 6. | 2414J1130F1 | [1] | COVER ASSY | |
| 6-1. | 2414J1131 | [1] | COVER | |
| 6-2. | 2401P670 | [1] | GEAR, RING | |
| 6-3. | A19P0009D103 | [8] | PIN | PIN |
| 7. | 2418P8839 | [1] | COUPLING | KOB |
| 8. | 2401N458 | [1] | GEAR, RING | |
| 9. | 2418P19173 | [1] | WASHER, THRUST | |
| 10. | 2418T16897 | [1] | WASHER, THRUST | |
| 11. | 2418P12837 | [1] | THRUST WASHER | KOB |
| 12. | 2401N457 | [1] | GEAR, SUN | |
| 13. | 2401P665 | [1] | GEAR, SUN | |
| 14. | 2401P666 | [1] | GEAR, SUN | |
| 15. | 2413T364 | [1] | SPIDER | |
| 16. | 2413T365 | [1] | SPIDER | |
| 17. | 2413N433F1 | [1] | SPIOER ASSY | |
| 17-1. | 2413N433 | [1] | SPIDER | |
| 17-2. | 2410P696 | [3] | SHAFT | |
| 18. | 2444Z1137D5 | [2] | PLUG | PLUG |
| 19. | 2418T13629 | [1] | BUTTON | KOB |
| 20. | ZR26X03800 | [1] | SNAP RING | KOB |
| 21. | ZR16X05000 | [3] | RING | KOBRetaining -- ID 50 x OD 64 x Th 2.0mm |
| 22. | 2401P667 | [3] | PINION, PLANETARY | |
| 23. | 2401P668 | [3] | PINION, PLANETARY | |
| 24. | 2401P669 | [4] | PINION, PLANETARY | |
| 25. | 2418P13444 | [1] | RETAINER | RETAINER |
| 26. | 2418T14735 | [7] | PLATE, LOCK | |
| 27. | 2418T9478 | [8] | LOCKING PLATE | KOB |
| 28. | ZS23C06014 | [8] | CAPSCREW M06x1.0x14mm | CAPSCREW M06x1.0x14mm |
| 29. | 2410P779 | [3] | SHAFT | |
| 30. | 2410P780 | [4] | SHAFT | |
| 31. | 2418T16898 | [8] | WASHER, THRUST | |
| 32. | 2418T16899 | [6] | WASHER, THRUST | |
| 33. | 2418T5414 | [6] | THRUST WASHER | KOB |
| 34. | ZS23C10025 | [18] | SCREW,Hex Socket Head, M10 x 25mm | KOBM10x1.50x25mm Superseded by part number: ZS28C10025 |
| 35. | ZS23C20085 | [20] | SCREW,Hex Socket Head, M20 x 85mm | KOBM20x2.5x85mm |
| 36. | ZS23C08016 | [8] | SCREW,Hex Socket Head, M8 x 16mm | KOBM08x1.25x16mm |
| 37. | ZS23C12040 | [20] | SCREW,Hex Socket Head, M12 x 40mm | KOBM12x1.75x40mm |
| 38. | ZS23C08014 | [6] | SCREW,Hex Socket Head, M8 x 14mm | KOBM08x1.25x14mm |
| 39. | ZS23C12030 | [18] | SCREW,Hex Socket Head, M12 x 30mm | KOBM12x1.75x30mm |
| 40. | 2420T4734D1 | [1] | SHIM | KOB |
| 41. | 2420T4734D2 | [1] | SHIM | KOB |
| 42. | 2420T4734D3 | [1] | SHIM | KOB |
| 43. | 2420T4734D4 | [1] | SHIM | KOB |
| 44. | 2420T4734D5 | [1] | SHIM | KOB |
| 45. | 2420T4734D6 | [1] | SHIM | KOB |
| 47. | 2420T4734D8 | [1] | SHIM | KOB |
| 48. | 2420T4734D9 | [1] | SHIM | KOB |
| 49. | 2420T4734D10 | [1] | SHIM | KOB |
| 5O. | 2420T5341D1 | [1] | SHIM | KOB |
| 51. | 2420T5341D2 | [1] | SHIM | KOB |
| 52. | ZS83C12035 | [2] | SCREW | KOB |
| . . | 24010P61F4 | [1] | SHAFT KIT CONSISTS OF REF 29 | |
| . . | 24010P61F5 | [1] | SHAFT KIT CONSISTS OF REF 30 | |
