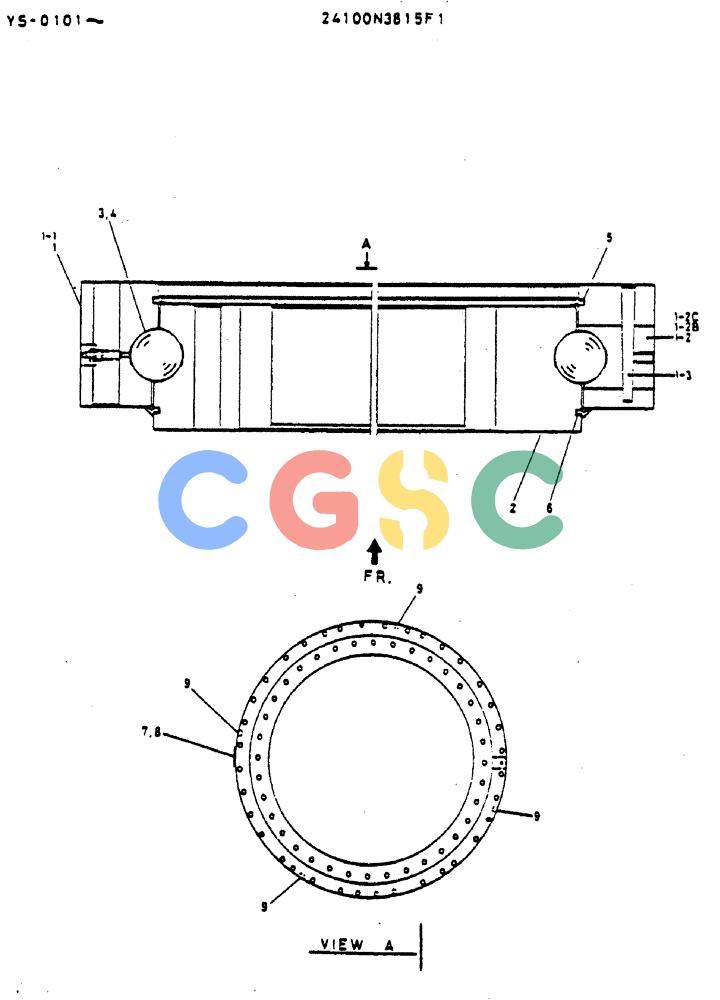

神钢零件查询(MD400LC) - EXCAVATOR BTW YS0101 - YS0200 (1/80-12/06) (06-009) - BEARING ASSY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
290 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100N3815F1 | [1] | RING, SLEWING BEARING ASSY | RING, SLEWING BEARING ASSY |
| 1. | 2425N318F1 | [1] | RACE, OUTER | |
| 1-1. | 2425N318 | [1] | RACE, OUTER . | |
| 1-2. | 2420T5531 | [1] | PLUG | |
| 1-2B. | ZS13C20200 | [1] | SCREW | KOBM20x2.50x200mm |
| 1-2C. | ZW11X20000 | [1] | WASHER | KOB |
| 1-2. | 2420T5531-1 | [1] | ROD, PUSH | |
| 1-3. | 2419T1964D8 | [1] | PIN, TAPER OD 10 x 110mm Long | PIN, TAPER OD 10 x 110mm Long |
| 2. | 2401N609 | [1] | RACE, INNER | |
| 3. | 2425T277 | [75] | BALL | KOB |
| 4. | 2425T309 | [75] | RETAINER | |
| 5. | 2445P114D20 | [1] | SEAL | SEAL |
| 6. | 2445P114D21 | [1] | SEAL | SEAL |
| 7. | 2432T1265 | [1] | LABEL | KOB Superseded by part number: YN22T00191P1 |
| 8. | 4020Z64 | [2] | RIVET | KOBOD 5.0 x 6.0mm Long Superseded by part number: 2420P623D7 |
| 9. | ZG91S02000 | [4] | LUBE NIPPLE,1/8" NPT x 1/8" NPT | KOB1/8" PT -- Straight |
