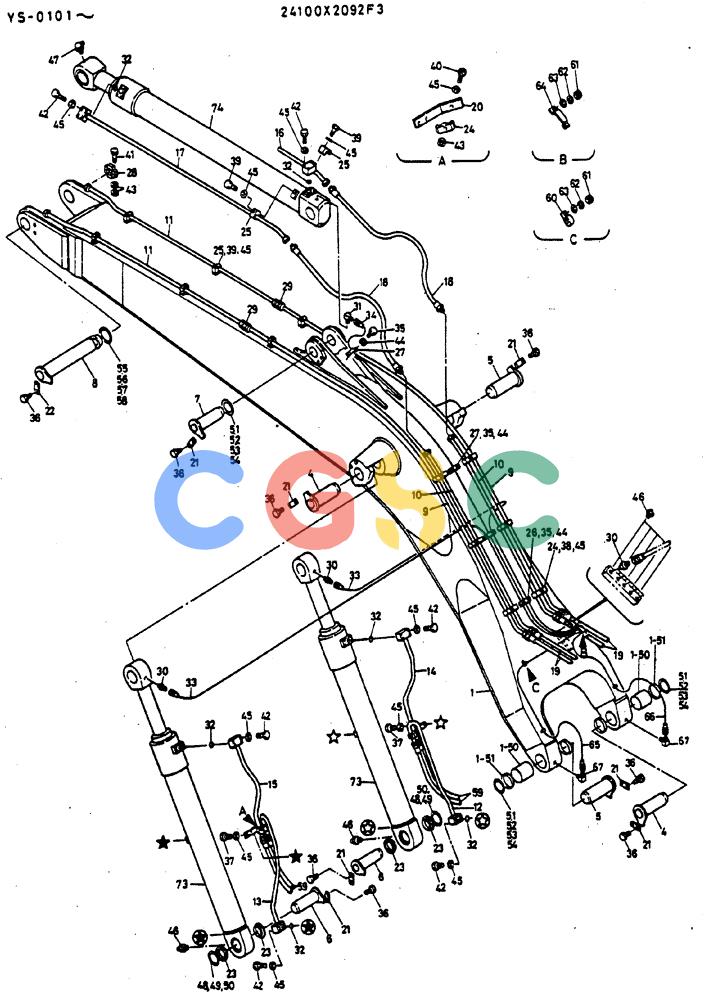

| . . | 24100X2092F3 | [1] | BOOM ASSY, 23'-1" | |
| 1. | 2411X933F1 | [1] | BOOM | |
| 1-50. | 2405T918 | [2] | BUSHING | KOB |
| 1-51. | 2445R138D10 | [4] | SEAL,110mm ID x 130mm OD x 4mm Thk | KOBDust -- ID 110 x OD 130 x Th 4mm |
| 4. | 2419P2190D1 | [2] | PIN | KOB |
| 5. | 2419P2190D2 | [2] | PIN | KOB |
| 6. | 2419P2192 | [2] | PIN | KOB |
| 7. | 2419P2194 | [1] | PIN | KOB |
| 6. | 2419P2196 | [1] | PIN | KOB |
| 9. | 2418N1978 | [2] | RIGID TUBE | KOB |
| 10. | 2418N2663 | [2] | TUBE | KOB |
| 11. | 2418P8649 | [2] | RIGID TUBE | KOB |
| 12. | 2418N2156D1 | [2] | TUBE | KOB |
| 13. | 2418N2156D2 | [2] | TUBE | KOB |
| 14. | 2418N1981D1 | [2] | TUBE | KOB |
| 15. | 2418N1981D2 | [2] | TUBE | KOB |
| 16. | 2418P14481 | [2] | TUBE | KOB |
| 17. | 2418P14482 | [2] | TUBE | TUBE |
| 18. | ZX58N16120 | [2] | HOSE | KOB1200mm Long (47-1/4in) |
| 19. | ZX58N16160 | [4] | FLEXIBLE HOSE | KOB1600mm Long (63 in) |
| 20. | 2416P6933 | [2] | BRACKET | KOB |
| 21. | 2418T3887D1 | [7] | PLATE | KOB |
| 22. | 2418T3887D3 | [1] | PLATE | KOB |
| 23. | 2418T6869 | [4] | SPACER | SPACER |
| 24. | 2432T1264 | [8] | CLAMP | KOB |
| 25. | 2432T1213D2 | [8] | CLAMP | KOB |
| 26. | 2416T3655 | [2] | CLAMP | KOB |
| 27. | 2416T4333 | [2] | CLAMP | KOB |
| 28. | 2432P824 | [2] | CLAMP | KOB |
| 29. | ZF23835000 | [2] | CONNECTOR | |
| 30. | ZH22Z04000 | [7] | HYD CONNECTOR | KOB1/4"PTx1/4"PFx37mm Long |
| 31. | ZH32Z04000 | [1] | ELBOW | KOB90° -- (1/4" PT - 1/4" PT), (Incls. O-Ring ZD12P01100) |
| 32. | ZD12P03400 | [6] | O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro | KOBID 33.70 ± 0.33 x OD 40mm |
| 33. | 2420R349D10 | [2] | FLEXIBLE HOSE | KOB Superseded by part number: 2420R349D350 |
| 34. | 2420R349D440 | [1] | HOSE | KOBHOSE |
| 35. | ZS18C08012 | [8] | SCREW,Hex, M8 x 12mm | KOBM08x1.25x12mm |
| 36. | ZS18C12025 | [16] | SCREW,Hex, M12 x 25mm | KOBM12x1.75x25mm |
| 37. | ZS18C12035 | [4] | SCREW,Hex, M12 x 35mm | KOBM12x1.75x35mm |
| 38. | ZS18C12050 | [4] | SCREW,Hex, M12 x 50mm | KOBM12x1.75x50mm |
| 39. | ZS18C12065 | [8] | SCREW,Hex, M12 x 65mm | KOBM12x1.75x65mm |
| 40. | ZS18C12080 | [2] | SCREW,Hex, M12 x 80mm | KOBM12x1.75x80mm |
| 41. | ZS18C12100 | [2] | SCREW,Hex, M12 x 100mm | KOBM12x1.75x100mm |
| 42. | ZS18C12075 | [24] | SCREW,Hex, M12 x 75mm | KOBM12x1.75x75mm |
| 43. | ZN18C12010 | [6] | NUT | KOBM12x1.75mm |
| 44. | ZW26X08000 | [8] | LOCK WASHER | KOBLock -- ID 08 x OD 15 x Th 2.0mm Superseded by part number: 83990583 |
| 45. | ZW26X12000 | [60] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm |
| 46. | ZG91S02000 | [7] | LUBE NIPPLE,1/8" NPT x 1/8" NPT | KOB1/8" PT -- Straight |
| 47. | ZG91U02000 | [7] | LUBE NIPPLE | KOB90° x 1/8" PT |
| 48. | B16T0442D13 | [1] | SHIM,160mm OD x 92mm ID x 1.2mm Thk | KOBID 92 x OD 160 x Th 1.2mm |
| 49. | B16T0442D14 | [1] | SHIM,160mm OD x 92mm ID x 1.6mm Thk | KOBID 92 x OD 160 x Th 1.6mm |
| 50. | B16T0442D15 | [1] | SHIM,160mm OD x 92mm ID x 2.3mm Thk | KOBID 92 x OD 160 x Th 2.3mm |
| 51. | 2420T2747D7 ; | [1] | SHIM | |
| 53. | 2420T2747D9 | [1] | SHIM,112mm ID x 180mm OD x 2.3mm Thk | KOBID 112 x OD 180 x Th 2.3mm |
| 54. | 2420T2747D10 | [1] | SHIM,112mm ID x 180mm OD x 3.2mm Thk | KOBID 112 x OD 180 x Th 3.2mm |
| 55. | 2418T5223D1 | [1] | SHIM | KOB Superseded by part number: 2420T2571D3 |
| 56. | 2418T5223D2 | [1] | SHIM | KOB Superseded by part number: 2420T2571D4 |
| 57. | 2418T5223D3 | [1] | SHIM | KOB Superseded by part number: 2420T2571D5 |
| 58. | 2418T5223D4 . | [1] | SHIM | |
| 59. | ZX58N16140 | [4] | FLEXIBLE HOSE | KOB1400mm Long (55-1/8 in) |
| 60. | ZC45X11009 | [3] | CLIP | KOBClamp, Single Line -- ID 11x35.5mm Long Superseded by part number: ZC46X11009 |
| 61. | ZN18C06005 | [5] | NUT | KOBM06x1.0mm |
| 62. | ZW26X06000 | [5] | LOCK WASHER | KOBID 06 x OD 07 x Th 1.5mm |
| 63. | ZW16X06000 | [5] | WASHER | KOBID 06 x OD 12.5 x Th 1.6mm Superseded by part number: 86588450 |
| 64. | 2432T1476 | [1] | CLAMP | KOB |
| 65. | 2420R349D210 | [1] | FLEXIBLE HOSE | KOB2100mm Long (82-11/16 in) |
| 66. | 2420R349D140 | [1] | HOSE,6.35mm ID x 1400mm L | KOB1/4" PF |
| 67. | 2444T2032 | [2] | HYD CONNECTOR | KOBElbow, 90° -- 1/4" PF - 1/8" PT x 20mm Long |
| 73. | 2438U984F1 | [2] | CYLINDER, BOOM | CYLINDER, BOOM |
| 74. | 2438U985F1 | [1] | ARM | KOB |
