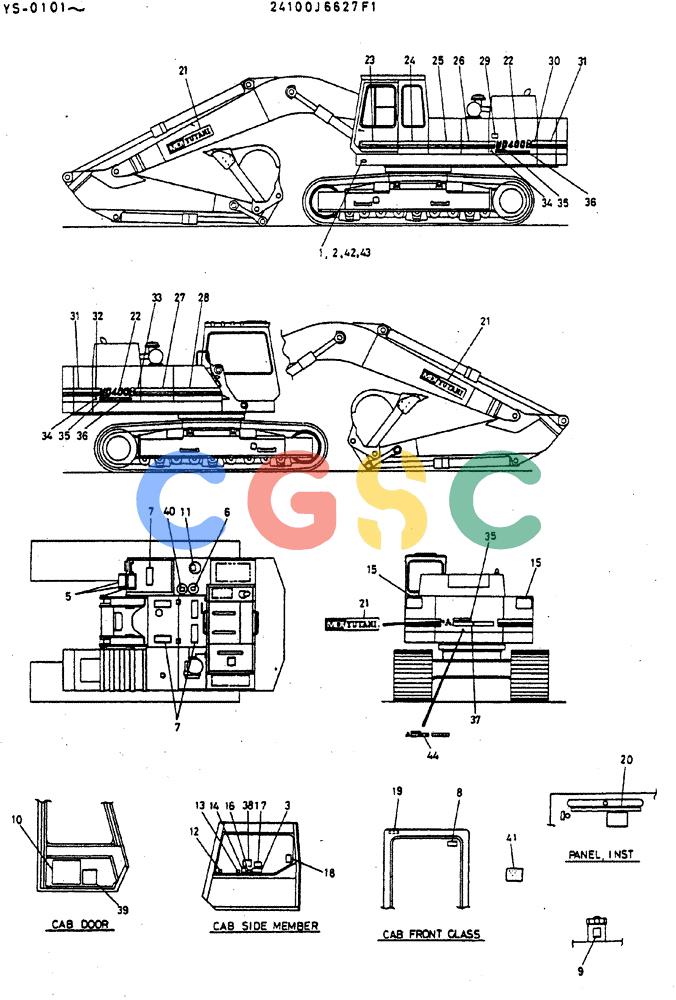

神钢零件查询(MD400LC) - EXCAVATOR BTW YS0101 - YS0200 (1/80-12/06) (08-014) - LABEL, NAME-PLATE Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
613 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J6627F1 | [1] | LABEL, NAME PLATE | LABEL, NAME PLATE |
| 1. | 4020Z64 | [2] | RIVET | KOBOD 5.0 x 6.0mm Long YS. 0101 to YS. 0112 Superseded by part number: 2420P623D7 |
| . . | 4020Z64 | [4] | RIVET | KOBOD 5.0 x 6.0mm Long YS., Start Serial: 0113 Superseded by part number: 2420P623D7 |
| 2. | 2432T1530 | [1] | IDENTITY PLATE | KOBLABEL YS. 0101 to YS. 0112 |
| 3. | 2432N578 | [1] | PLATE | KOB |
| 4. | 24105J3657 | [1] | SCHEME, PAINTING | |
| 5. | 2427Z329 | [2] | SHEET | KOBAnti-Slip (300x150mm) |
| 6. | 2432T884 | [1] | LABEL | KOB |
| 7. | 2427Z329D2 | [5] | SHEET | KOBAnti-Slip (400x150mm) |
| 8. | 2432T892 | [1] | LABEL | KOBPLATE, CAUTION |
| 9. | 2432T2283 | [1] | LABEL | KOBDecal, Fuel location |
| 10. | 2432J1339 | [1] | LABEL | KOB |
| 11. | 2432T1231 | [1] | DATA PLAQUE | KOBDecal, Warning - |
| 12. | 2432T2415 | [1] | LABEL | KOB |
| 13. | 2432T2342 | [1] | LABEL PLATE, CAUTION | LABEL PLATE, CAUTION |
| 14. | 2432T1215 | [1] | DATA PLAQUE | KOBDecal, Caution - To prevent accidents and bodily injury … |
| 15. | 2432N1097 | [2] | LABEL | KOBDecal, Danger - Stay out of the swing area. |
| 16. | 2432T1426 | [1] | PLATE, CAUTION | PLATE, CAUTION |
| 17. | 2432P1014 | [1] | LABEL | KOB |
| 18. | 2432T2991D1 | [1] | LABEL | KOB |
| 19. | 2432T2341 | [1] | LABEL | KOB |
| 20. | 2432T2316 | [1] | LABEL | KOB |
| 21. | 2432J1346 | [2] | LABEL | KOBYS. 0101 to YS. 0112 |
| . . | 2432J1346 | [3] | LABEL | KOBYS., Start Serial: 0113 |
| 22. | 2432J1352 | [2] | NAME PLATE | NAME PLATE |
| 23. | 2432T2444 | [1] | LABEL | LABEL |
| 24. | 2432P1025D3 | [1] | LABEL | KOB |
| 25. | 2432P1025D9 | [1] | LABEL | KOB |
| 26. | 2432P1025D12 | [1] | LABEL | KOB |
| 27. | 2432P1025D14 | [1] | LABEL | KOB |
| 28. | 2432T2463 | [1] | LABEL | KOB |
| 29. | 2432T2453 | [1] | LABEL | LABEL |
| 30. | 2432T2454 | [1] | LABEL | LABEL |
| 31. | 2432P1025D13 | [2] | LABEL | KOB |
| 32. | 2432T2461 | [1] | LABEL | KOB |
| 33. | 2432T2462 | [1] | LABEL | KOB |
| 34. | 2432T2456 | [2] | LABEL | KOBYS. 0101 to YS. 0112 |
| 35. | 2432T2457 | [3] | LABEL | KOBYS. 0101 to YS. 0112 |
| 36. | 2432T2458 | [2] | LABEL | KOBYS. 0101 to YS. 0112 |
| 37. | 2432P1023 | [1] | LABEL YS. 0101 to YS. 0112 | LABEL YS. 0101 to YS. 0112 |
| 38. | 2432P1029 | [1] | LABEL | KOB |
| 39. | 2432T1759 | [1] | PLATE | KOBLABEL |
| 40. | 2432T1202 | [1] | PLATE | KOB |
| 41. | 2432T1142 | [18] | LABEL | KOB |
| 42. | 2432T2526 | [1] | NAME PLATE YS., Start Serial: 0113 | NAME PLATE YS., Start Serial: 0113 |
| 43. | 2422T572 | [1] | REWORK, FRAME YS., Start Serial: 0113 | |
| 44. | 2432P1053 | [1] | LABEL YS., Start Serial: 0113 | LABEL YS., Start Serial: 0113 |
