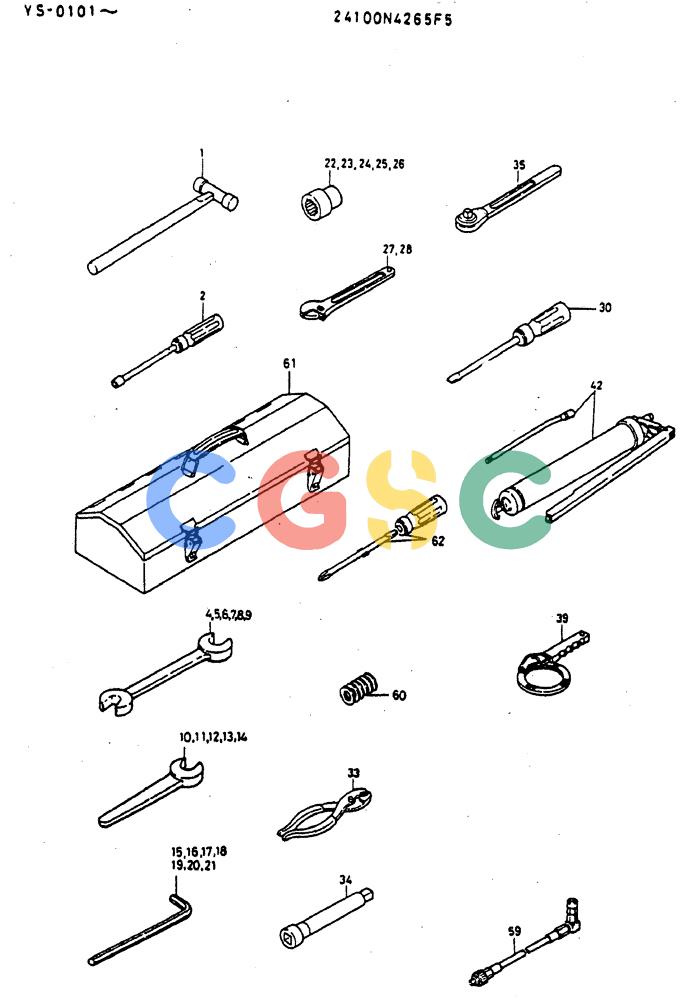

神钢零件查询(MD400LC) - EXCAVATOR BTW YS0101 - YS0200 (1/80-12/06) (08-015) - TOOL ASSY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
297 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100N4265F5 | [1] | TOOL ASSY | TOOL ASSY |
| 1. | ZT71A15000 | [1] | HAMMER | KOB |
| 2. | 2421T8 | [1] | TIGHTENER | KOB |
| 4. | ZT12B07008 | [1] | SPANNER | SPANNER |
| 5. | ZT12B10013 | [1] | WRENCH SPANNER | WRENCH SPANNER |
| 6. | ZT12B13017 | [1] | WRENCH, PIPE SPANNER | WRENCH, PIPE SPANNER |
| 7. | ZT12B19022 | [1] | WRENCH, PIPE SPANNER | WRENCH, PIPE SPANNER |
| 8. | ZT12B24027 | [1] | WRENCH, PIPE SPANNER | WRENCH, PIPE SPANNER |
| 9. | ZT12B30032 | [1] | WRENCH SPANNER | WRENCH SPANNER |
| 10. | ZT12A36000 | [1] | SEAT BACK | KOBSpanner, 36mm |
| 11. | ZT12A46000 | [1] | POINT | KOB46mm |
| 12. | ZT12A41000 | [1] | ADJUSTING WRENCH | KOBSpanner, 41mm |
| 13. | ZT12A50000 | [1] | POINT | KOBSpanner -- 50mm Long (1-31/32 in) |
| 14. | ZT12A55000 | [1] | SPECIAL WRENCH | KOBSpanner -- 55mm |
| 15. | ZT22A05000 | [1] | KEY | KOBScrew -- 05mm |
| 16. | ZT22A06000 | [1] | KEY, SCREW 06mm | KEY, SCREW 06mm |
| 17. | ZT22A08000 | [1] | KEY | KOBScrew -- 08mm |
| 18. | ZT22A10000 | [1] | KEY | KOB10mm |
| 19. | ZT22A12000 | [1] | KEY, SCREW 12mm | KEY, SCREW 12mm |
| 20. | ZT22A14000 | [1] | KEY | KOB14mm |
| 21. | ZT22A17000 | [1] | KEY, SCREW 17mm | KEY, SCREW 17mm |
| 22. | ZT31A17000 | [1] | SOCKET | KOB(17) |
| 23. | ZT31A19000 | [1] | SOCKET | KOB(19) |
| 24. | ZT31A22000 | [1] | SOCKET | KOB(22) |
| 25. | ZT31A24000 | [1] | SOCKET | KOB(24) |
| 26. | ZT31A30000 | [1] | SOCKET | KOB(30) |
| 27. | ZT12D20000 | [1] | WRENCH, ADJUST 24mm Maximum | WRENCH, ADJUST 24mm Maximum |
| 28. | ZT12D30000 | [1] | WRENCH, ADJUST 34mm Maximum | WRENCH, ADJUST 34mm Maximum |
| 30. | ZT41A09200 | [1] | DRIVER | |
| 33. | ZT51A20000 | [1] | PLIERS | KOB |
| 34. | ZT31D13150 | [1] | BAR | KOB |
| 35. | ZT31B13250 | [1] | HANDLE | KOB |
| 39. | 2421R127 | [1] | SPECIAL WRENCH | KOB |
| 42. | 2421R154 | [1] | GREASE GUN | KOB Superseded by part number: EAPN17125A |
| 59. | 2444Z2703 | [1] | HOSE | KOB |
| 60. | 24100T427F1 | [1] | SHIM KIT | |
| 61. | 4027R1D2 | [1] | CAM | CAM |
| 62. | 2421Z294 | [1] | BLOCK DRIVER | KOBDRIVER Screw, 165mm Long |
