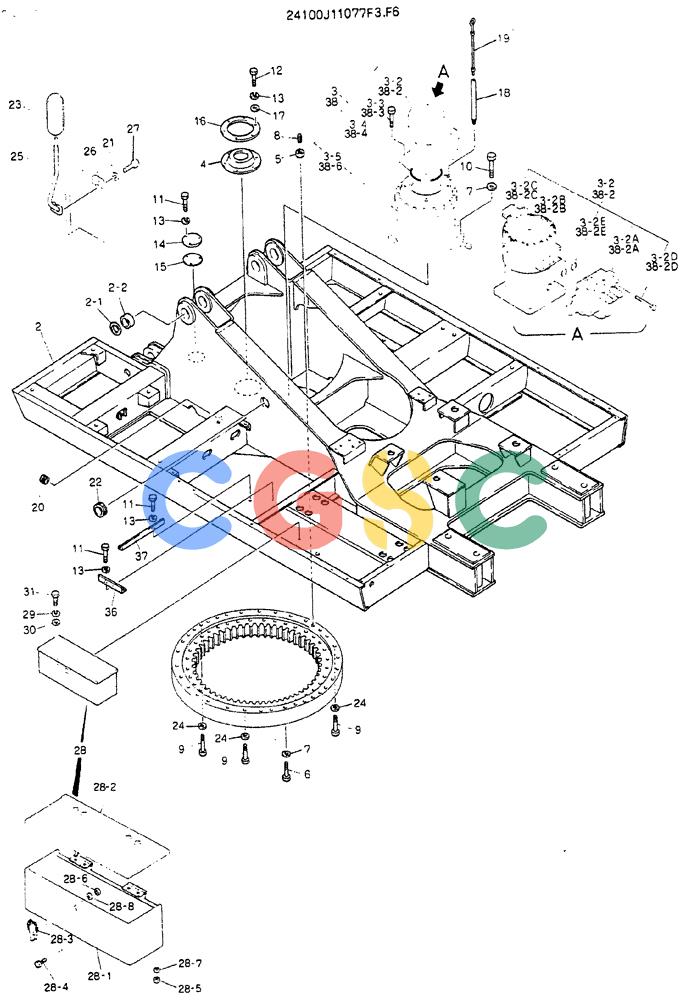

| . . | 24100J11077F3 | [1] | FRAME ASSY, UPP, Serial Range: YS0201-YS0263 | |
| . . | 24100J11077F6 | [1] | FRAME ASSY, UPP, Start Serial: YS0264 | |
| 2. | 2422J2952 | [1] | FRAME, UPP | |
| 2-1. | 2418T17021 | [2] | PLATE | KOB |
| 2-2. | 2405T1232 | [4] | BUSHING | KOB |
| 3. | 24100J10432F2 | [1] | MOTOR ASSY, SWING, Serial Range: YS0201-YS0263 | MOTOR ASSY, SWING, Serial Range: YS0201-YS0263 |
| 3-2. | 2441U775F1 | [1] | HYDRAULIC MOTOR | KOB |
| 3-2A. | 2436U1368F1 | [1] | CONTROL VALVE | KOB |
| 3-2B. | 2441U777F1 | [1] | MOTOR | KOB |
| 3-2C. | 2436U1352F1 | [1] | BRAKE VALVE | KOBBRAKE |
| 3-2D. | ZS23C12110 | [8] | SCREW,Hex Socket Head, M12 x 110mm | KOBM12x1.75x110mm Superseded by part number: ZS28C12110 |
| 3-2E. | ZD12G03500 | [2] | O-RING,34.40mm ID x 40.60mm OD x 3.10mm | KOBID 34.40 ± 0.33 x OD 40mm |
| 3-3. | ZS23C20050 | [4] | SCREW,Hex Socket Head, M20 x 50mm | KOBM20x2.5x50mm |
| 3-4. | ZD11G20000 | [1] | O-RING,5.7mm Thk x 199.3mm ID, 70 Duro | KOBID 199.30 ± 1.55 x OD 210mm |
| 3-5. | NSS | [1] | NOT SOLD SEPARAT | CONREDUCTION UNIT, SEE FIGURE 01-003 |
| 4. | 2414Z234 | [1] | COVER | KOB |
| 5. | ZN18C24014 | [1] | NUT | KOBM24x3.0mm |
| 6. | 2420Z1620 | [33] | SCREW | KOB |
| 7. | ZW16H24000 | [49] | WASHER | KOBID 25 x OD 48 x Th 6.0mm |
| 8. | 2420T3998D1 | [1] | SETSCREW | SETSCREW |
| 9. | 2420Z1606 | [3] | SPECIAL BOLT | KOBREAMER |
| 10. | 2420Z1621 | [16] | SCREW | KOB |
| 11. | ZS18C10020 | [11] | SCREW,Hex, M10 x 20mm | KOBM10x1.50x20mm |
| 12. | ZS18C10030 | [6] | SCREW,Hex, M10 x 30mm | KOBM10x1.50x30mm |
| 13. | ZW26X10000 | [17] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 14. | 2414T3276 | [1] | COVER | COVER |
| 15. | 2414Z257 | [1] | SEAL | KOB |
| 16. | 2414T2341 | [1] | COVER | KOB Superseded by part number: YN52F01158P1 |
| 17. | 2418T5373C2 | [6] | WASHER | KOBID 11 x OD 30 x Th 3.20mm Superseded by part number: 2418T12346 |
| 18. | 2420P1519D2 | [1] | PIPE | PIPE |
| 19. | 2489R312D1 | [1] | DIPSTICK | KOB |
| 20. | 2420Z699 | [1] | GROMMET | KOB |
| 21. | ZW26X08000 | [2] | LOCK WASHER | KOBLock -- ID 08 x OD 15 x Th 2.0mm Superseded by part number: 83990583 |
| 22. | 2420T5653 | [1] | GROMMET | GROMMET |
| 23. | 2456Z253 | [1] | MIRROR | KOBBACK |
| 24. | 2418T15235 | [3] | WASHER | KOB |
| 25. | 2416P13732 | [1] | STAY | KOB Superseded by part number: 2416P13732D2 |
| 26. | 2432T4113 | [1] | CLAMP | KOB Superseded by part number: 2432T4113D2 |
| 27. | ZS18C08040 | [2] | SCREW,Hex, M8 x 40mm | KOBM08x1.25x40mm |
| 28. | 24100P2570F1 | [1] | BOX ASSY, TOOL, Serial Range: YS0201-YS0375 | BOX ASSY, TOOL, Serial Range: YS0201-YS0375 |
| . . | 24100P3397F1 | [1] | COMPLETE TOOL BOX | KOB, Start Serial: YS0376 |
| 28-1. | 2414N3807 | [1] | BOX, TOOL, Serial Range: YS0201-YS0375 | |
| . . | 2414N4737 | [1] | BOX, TOOL, Start Serial: YS0376 | |
| 28-2. | 2414N3808 | [1] | COVER, Serial Range: YS0201-YS0375 | |
| . . | 2414N4738 | [1] | COVER, Start Serial: YS0376 | |
| 28-3. | 2432Z451 | [1] | CATCH | KOB |
| 28-4. | ZS31C03008 | [2] | SCREW,Phillips Drive, Pan HD, M3 x 8mm | KOBM03x0.5x08mm |
| 28-5. | ZN16C08007 | [4] | NUT | KOBM08x1.25mm Superseded by part number: ZN18C08007 |
| 28-6. | ZN11C03003 | [2] | NUT | KOBM03x0.5mm |
| 28-7. | ZW22X08000 | [4] | LOCK WASHER | KOBID 08 x OD 15.4 x Th 2.0mm Superseded by part number: 83990583 |
| 28-8. | ZW26X03000 | [2] | LOCK WASHER | HIT |
| 29. | ZW26X12000 | [2] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm |
| 30. | 2418T10357 | [2] | WASHER | KOBID 13 x OD 30 x Th 3.2mm Superseded by part number: 2418T12345 |
| 31. | ZS18C12020 | [2] | SCREW,Hex, M12 x 20mm | KOBM12x1.75x20mm |
| 36. | 2430T177 | [2] | ANGLE | ANGLE |
| 37. | 2430T176 | [2] | ANGLE | ANGLE |
| 38. | 24100J10432F3 | [1] | MOTOR ASSY, SWING, Start Serial: YS0264 | MOTOR ASSY, SWING, Start Serial: YS0264 |
| 38-2. | 2441U775F1 | [1] | HYDRAULIC MOTOR | KOB |
| 38-2A. | 2436U1368F1 | [1] | CONTROL VALVE | KOB |
| 38-2B. | 2441U777F1 | [1] | MOTOR | KOB |
| 38-2C. | 2436U1352F1 | [1] | BRAKE VALVE | KOBBRAKE |
| 38-2D. | ZS23C12110 | [8] | SCREW,Hex Socket Head, M12 x 110mm | KOBM12x1.75x110mm Superseded by part number: ZS28C12110 |
| 38-2E. | ZD12G03500 | [2] | O-RING,34.40mm ID x 40.60mm OD x 3.10mm | KOBID 34.40 ± 0.33 x OD 40mm |
| 38-3. | ZS23C20050 | [4] | SCREW,Hex Socket Head, M20 x 50mm | KOBM20x2.5x50mm |
| 38-4. | ZD11G20000 | [1] | O-RING,5.7mm Thk x 199.3mm ID, 70 Duro | KOBID 199.30 ± 1.55 x OD 210mm |
