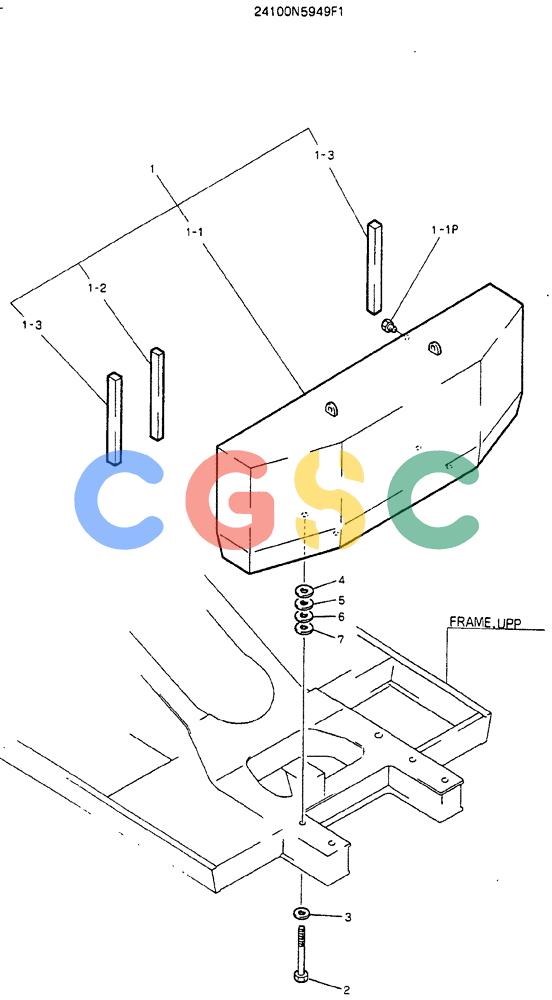

神钢零件查询(MD450BLC) - EXCAVATOR BTW TS0201 - TS0394 (1/80-12/06) (01-002) - COUNTER-WEIGHT ASSY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
346 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100N5949F1 | [1] | COUNTER-WEIGHT ASSY | |
| 1. | 24100P2670F1 | [1] | COUNTER-WEIGHT ASSY | |
| 1-1. | 2422J2962 | [1] | COUNTER-WEIGHT | |
| 1-1P. | 2420T4532 | [1] | PLUG | |
| 1-2. | 2479Z1742 | [1] | INSULATOR | KOB |
| 1-3. | 2479Z1743 | [2] | INSULATOR | KOB |
| 2. | 2420T3031D4 | [4] | SCREW | KOB |
| 3. | ZW13H42000 | [4] | WASHER | KOB |
| 4. | 2418T17697D1 | [1] | SPACER | KOB |
| 5. | 2418T17697D2 | [1] | SPACER | KOB |
| 6. | 2418T17697D3 | [1] | SPACER | KOB |
| 7. | 2418T17697D4 | [1] | SPACER | KOB |
