神钢零件查询(MD450BLC) - EXCAVATOR BTW TS0201 - TS0394 (1/80-12/06) (11-009) - VALVE ASSY, RELIEF Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
463 次

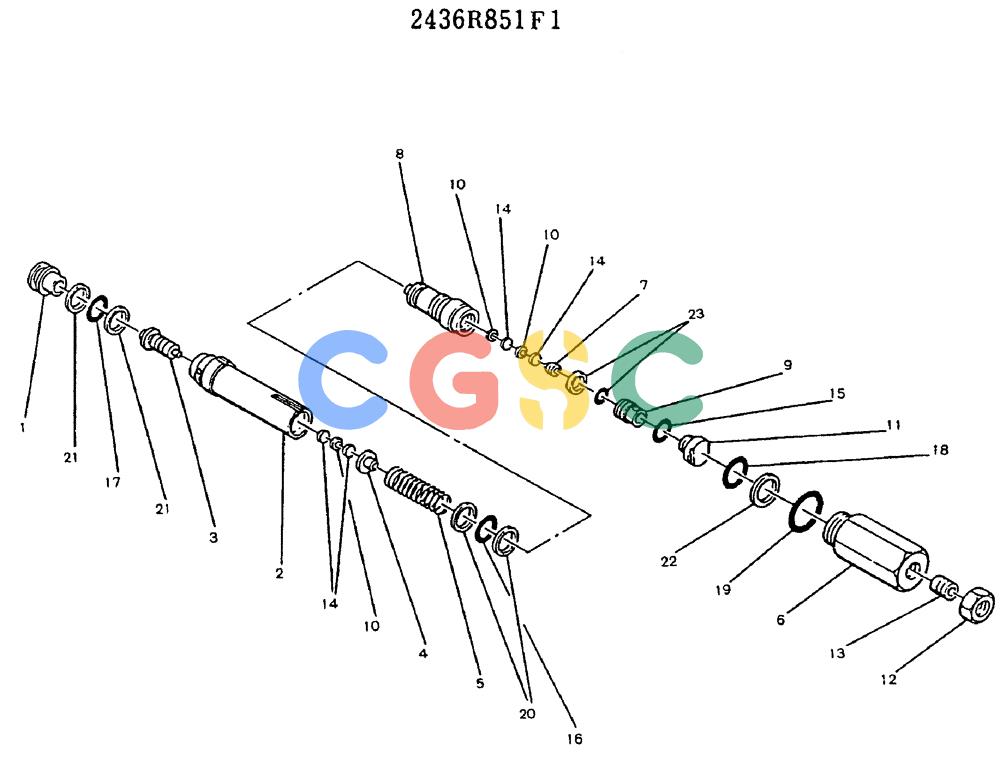

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2436R851F1 | [1] | VALVE | KOBCONSISTS OF THE FOLLOWING PARTS |
| 1. | 2436U1027S71 | [1] | SPRING SEAT | KOBPOPPET |
| 2. | NSS | [1] | NOT SOLD SEPARAT | CONHOUSING ASSY |
| 3. | NSS | [1] | NOT SOLD SEPARAT | CONPOPPET |
| 4. | NSS | [1] | NOT SOLD SEPARAT | CONSEAT, SPRING |
| 5. | 2436U1027S75 | [1] | SPRING | KOB |
| 6. | NSS | [1] | NOT SOLD SEPARAT | CONPLUG |
| 7. | NSS | [1] | NOT SOLD SEPARAT | CONSETSCREW |
| 8. | NSS | [1] | NOT SOLD SEPARAT | CONGUIDE, PISTON |
| 9. | NSS | [1] | NOT SOLD SEPARAT | CONPISTON |
| 10. | NSS | [3] | NOT SOLD SEPARAT | CONORIFICE |
| 11. | NSS | [1] | NOT SOLD SEPARAT | CONPLUG |
| 12. | NSS | [1] | NOT SOLD SEPARAT | CONNUT |
| 13. | NSS | [1] | NOT SOLD SEPARAT | CONSETSCREW |
| 14. | NSS | [4] | NOT SOLD SEPARAT | CONORIFICE |
| 15. | ZD12P01400 | [1] | O-RING | KOBID 13.80 ± 0.19 x OD 18mm |
| 16. | ZD12P01500 | [1] | O-RING | KOBID 14.80 ± 0.20 x OD 19mm |
| 17. | ZD12P01800 | [1] | O-RING | KOBID 17.8mm x OD 20.2mm |
| 18. | ZD12P02200 | [1] | O-RING | KOBID 21.80 ± 0.24 x OD 26mm |
| 19. | 2436U618S13 | [1] | O-RING | KOB |
| 20. | ZD85P01500 | [2] | RING | KOB |
| 21. | ZD85P01800 | [2] | RING | KOBBack-Up -- ID 18 x OD 22 x Th 1.25mm |
| 22. | ZD85P02200 | [1] | BACK-UP RING | KOB |
| 23. | 2436R851S23 | [1] | SEAL RETAINER | KOB |
