神钢零件查询(200-8) - EXCAVATOR S/N YN11-45001 - (1/06-12/09) (242-01-1) - GUARD INSTAL Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
643 次

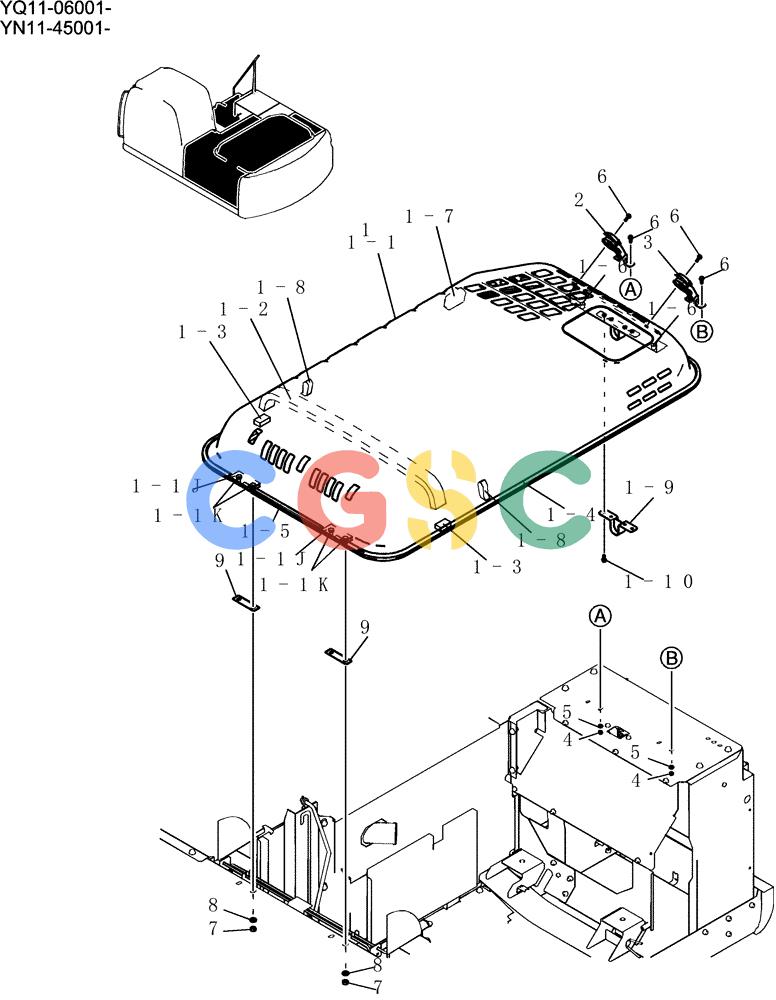

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN21C00094F1 | [1] | GUARD | KOBInstal |
| 1. | YN22C00022F1 | [1] | HOOD | KOBBonnet Assy |
| 1-1. | YN22C01296P1 | [1] | HOOD | KOBBonnet Superseded by part number: YN22C01296P2 |
| 1-1J. | LC22C01028P1 | [2] | HINGE | KOB |
| 1-1K. | ZS12C12030 | [4] | SCREW,Hex, M12 x 30mm | KOBCap Superseded by part number: ZS18C12030 |
| 1-2. | YN22C01295P1 | [1] | FOAM INSULATION | KOB |
| 1-3. | YN22C01225P1 | [2] | FOAM INSULATION | KOB |
| 1-4. | YN22C01283D1 | [1] | WEATHERSTRIP | KOB |
| 1-5. | YR21C01251D4 | [1] | WEATHERSTRIP | KOB |
| 1-6. | 2416T13435 | [2] | RUBBER | KOBCushion |
| 1-7. | 2406Z304 | [1] | HANDLE | KOB |
| 1-8. | YN22C01297P1 | [2] | FOAM INSULATION | KOBInsulation |
| 1-9. | YN22C01287P1 | [1] | PLATE | KOB |
| 1-10. | ZM73C08020 | [4] | BOLT,M8x20mm - Course Thread | KOBSems |
| 2. | LC21C01811P1 | [1] | CATCH | KOB, Serial Range: YQ11-06001-YQ11-06126 Superseded by part number: LC21C01811P2 |
| . . | LC21C01811P2 | [1] | LATCH | SMCatch, Start Serial: YQ11-06127 |
| 3. | LC21C01812P1 | [1] | CATCH | KOB, Serial Range: YQ11-06001-YQ11-06126 Superseded by part number: LC21C01811P2 |
| 4. | ZN18C08007 | [4] | NUT | KOBM08x1.25mm |
| 5. | ZW16H08000 | [4] | WASHER | KOB |
| . . | LC21C01812P2 | [1] | HANDLE | SMCatch, Start Serial: YQ11-06127 Superseded by part number: LC21C01811P2 |
| 6. | ZM73C08020 | [8] | BOLT,M8x20mm - Course Thread | KOBSems |
| 7. | ZN18C12010 | [4] | NUT | KOB |
| 8. | 2418T10357 | [4] | WASHER | KOB Superseded by part number: 2418T12345 |
| 9. | YN21C03749P1 | [2] | SHIM | KOB |
