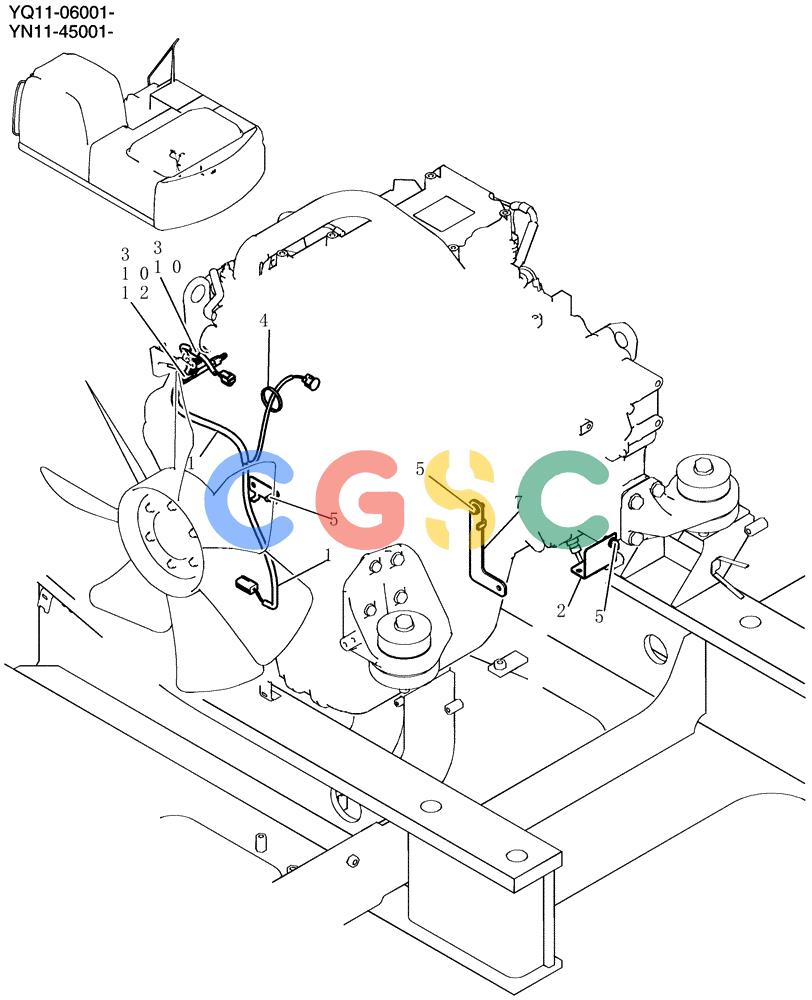

神钢零件查询(200-8) - EXCAVATOR S/N YN11-45001 - (1/06-12/09) (325-01-1) - HARNESS ASSY, ENGINE Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
130 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | LQ16E00010F1 | [1] | HARNESS | KOBAssy, Engine |
| 1. | LQ16E01015P1 | [1] | HARNESS | KOB |
| 2. | LC16E01026P1 | [1] | BRACKET | KOB |
| 3. | EW02E01016D2 | [2] | CLIP | KOB |
| 4. | PY01P01043D3 | [1] | CABLE TIE,188mm L | KOB |
| 5. | ZM73C08020 | [3] | BOLT,M8x20mm - Course Thread | KOBSems |
| 7. | LQ16E01019P1 | [1] | BRACKET | KOB |
| 8. | LQ16E01018P1 | [1] | BRACKET | KOB Superseded by part number: LQ13E01238P1 |
| 10. | ZM73C06020 | [2] | BOLT,M6x20mm - Course Thread | KOBSems |
| 12. | ZY26X04010 | [1] | SPACER | KOB |
