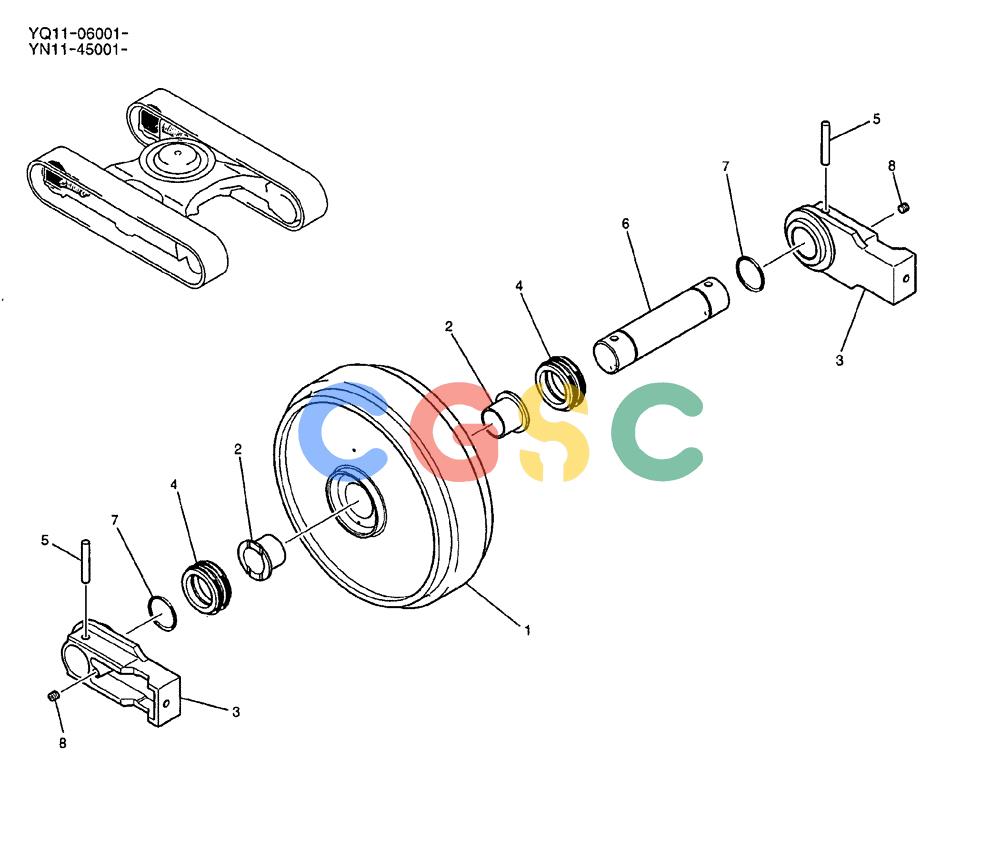

神钢零件查询(200-8) - EXCAVATOR S/N YN11-45001 - (1/06-12/09) (356-01-1) - IDLER ASSY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
443 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN52D00009F1 | [1] | IDLER | KOBAssy, Incl 1 - 8 Superseded by part number: LQ52D00044F1 |
| 1. | YN52D01006P1 | [1] | IDLER | KOB |
| 2. | 2405P482 | [2] | BUSHING | KOB |
| 3. | YN52D01011P1 | [2] | COLLAR | KOB |
| 4. | 2445R442F1 | [2] | SEAL,110mm ID x 133.4mm OD x 33mm Thk | KOB |
| 5. | YN52D01008P1 | [2] | PIN,16mm OD x 102mm L | KOB |
| 6. | YN52D01001P1 | [1] | SHAFT | KOB |
| 7. | ZD11G07000 | [2] | O-RING,69.40mm ID x 75.60mm OD x 3.10mm | KOB |
| 8. | ZE82T02000 | [2] | PLUG | KOB |
