神钢零件查询(200-8) - EXCAVATOR S/N YN11-45001 - (1/06-12/09) (360-01-1) - IDLER ADJUST ASSY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
576 次

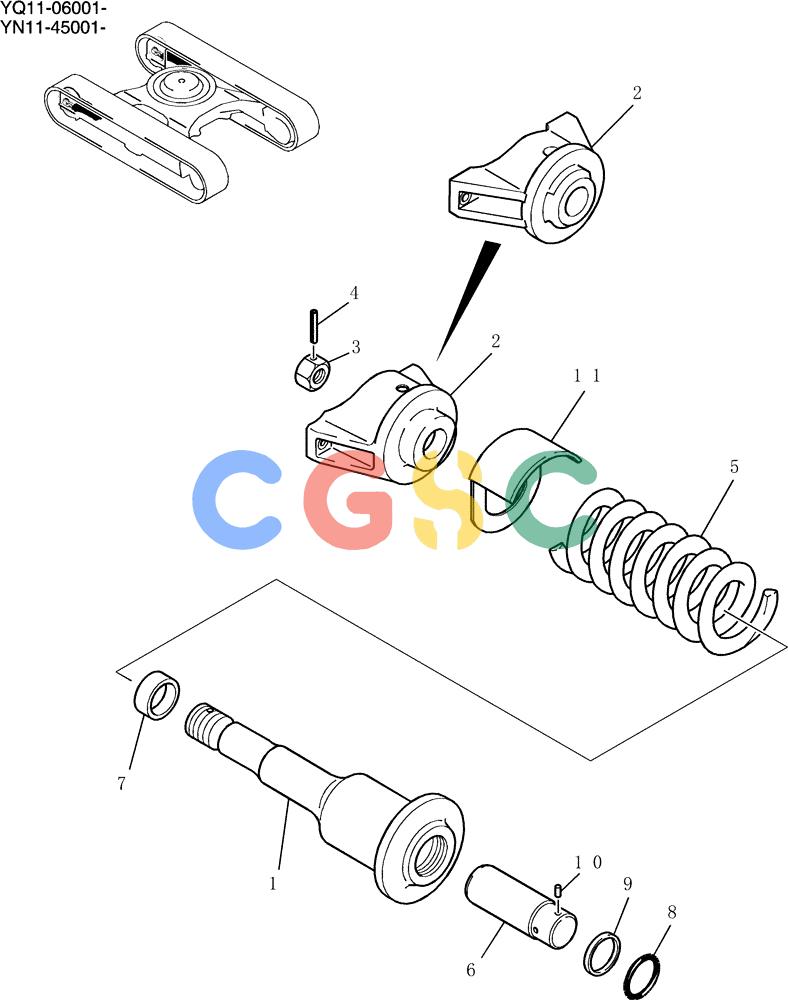

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN54D00013F1 | [1] | IDLER | KOBAdjust Assy, Serial Range: YQ11-06001-YQ11-06070 Superseded by part number: YN54D00015F2 |
| . . | YN54D00014F1 | [1] | ADJUSTER | KOBAdjust Assy, Start Serial: YQ11-06071 Superseded by part number: YN54D00015F2 |
| 1. | YN70V00006P1 | [1] | GREASE | KOBCylinder, Grease |
| 2. | YN54D01041P1 | [1] | BRACKET | KOB, Serial Range: YQ11-06001-YQ11-06070 Superseded by part number: YN54D01051P1 |
| . . | YN54D01051P1 | [1] | YOKE | SMBracket, Start Serial: YQ11-06071 |
| 3. | YN54D01038P1 | [1] | NUT | KOB |
| 4. | ZP26D08080 | [1] | PIN | KOBSpring |
| 5. | YN54D01047P1 | [1] | SPRING,124mm ID x 214mm OD x 540.10mm L | KOB Superseded by part number: YN54D01063P1 |
| 6. | YN01V01099P1 | [1] | PISTON | KOB |
| 7. | YN54D01042P1 | [1] | COLLAR | KOB |
| 8. | ZD12G08000 | [1] | O-RING,79.40mm ID x 85.60mm OD x 3.10mm | KOB |
| 9. | 2418U130D35 | [1] | PACKING | KOBOil Seal |
| 10. | 2419T4748 | [2] | PIN | KOB, Serial Range: YQ11-06001-YQ11-06070 Superseded by part number: LQ54D01023P1 |
| . . | LQ54D01023P1 | [2] | PIN | SM, Start Serial: YQ11-06071 |
| 11. | YN54D01029P1 | [1] | COVER | KOBCover |
