神钢零件查询(200-8) - EXCAVATOR S/N YN11-45001 - (1/06-12/09) (366-01A-1) - ROLLER ASSY, TRACK Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
481 次

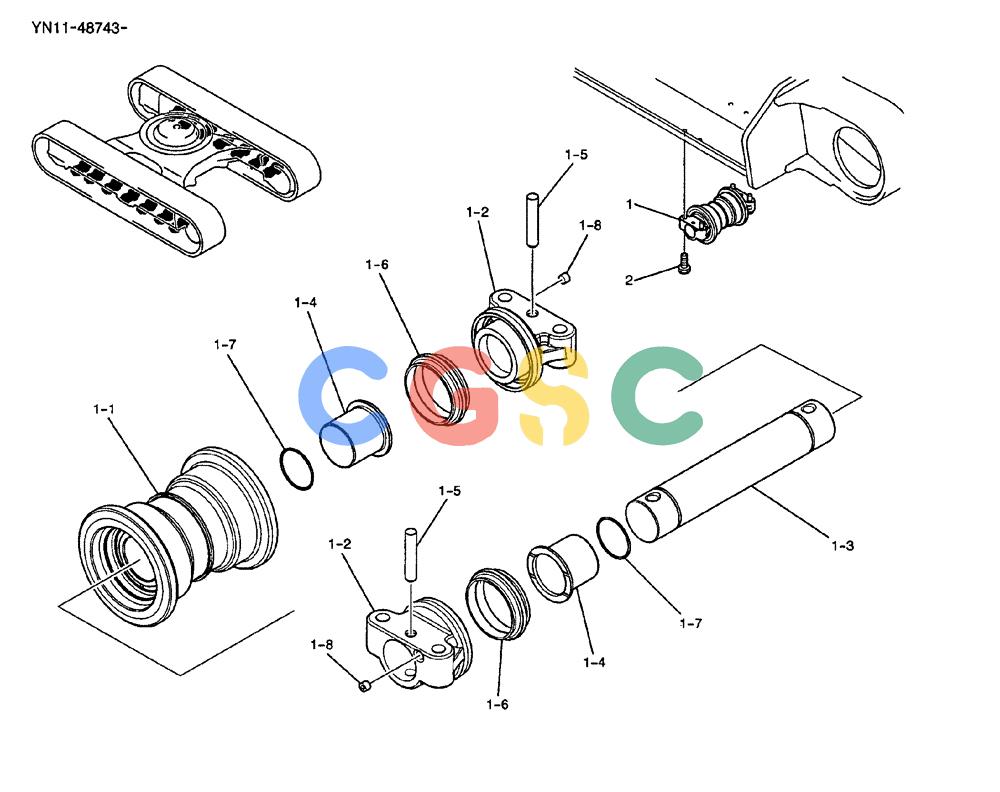

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN64D00033F1 | [1] | Track | |
| 1. | LQ64D00029F1 | [14] | ROLLER, TRACK | KOBAssy, Low Superseded by part number: LQ64D00054F1 |
| 1-1. | LQ64D01027P1 | [1] | ROLLER,185mm OD x 220mm L | KOB Superseded by part number: LQ64D01029P1 |
| 1-2. | YN64D01020P1 | [2] | COLLAR | KOB Superseded by part number: YN64D01041P1 |
| 1-3. | 2410N862 | [1] | SHAFT,65mm OD x 354mm L | KOB Superseded by part number: 77279670, LQ64D01028P1 |
| 1-4. | 2405P489 | [2] | BUSHING,66mm ID x 87mm OD x 64.5mm L | KOB |
| 1-5. | 2419T7353 | [2] | PIN,16mm OD x 83mm L | KOB |
| 1-6. | 2445R441F1 | [2] | SEAL,90mm ID x 114.45mm OD x 33mm Thk | KOBAssy, Floating |
| 1-7. | ZD11G06000 | [2] | O-RING,59.40mm ID x 65.60mm OD x 3.10mm | KOB |
| 1-8. | ZE82T04000 | [2] | PLUG | KOB |
| 2. | 2420P1580D4 | [56] | BOLT,Hex, M18 x 1.5 x 80mm | KOBCap |
