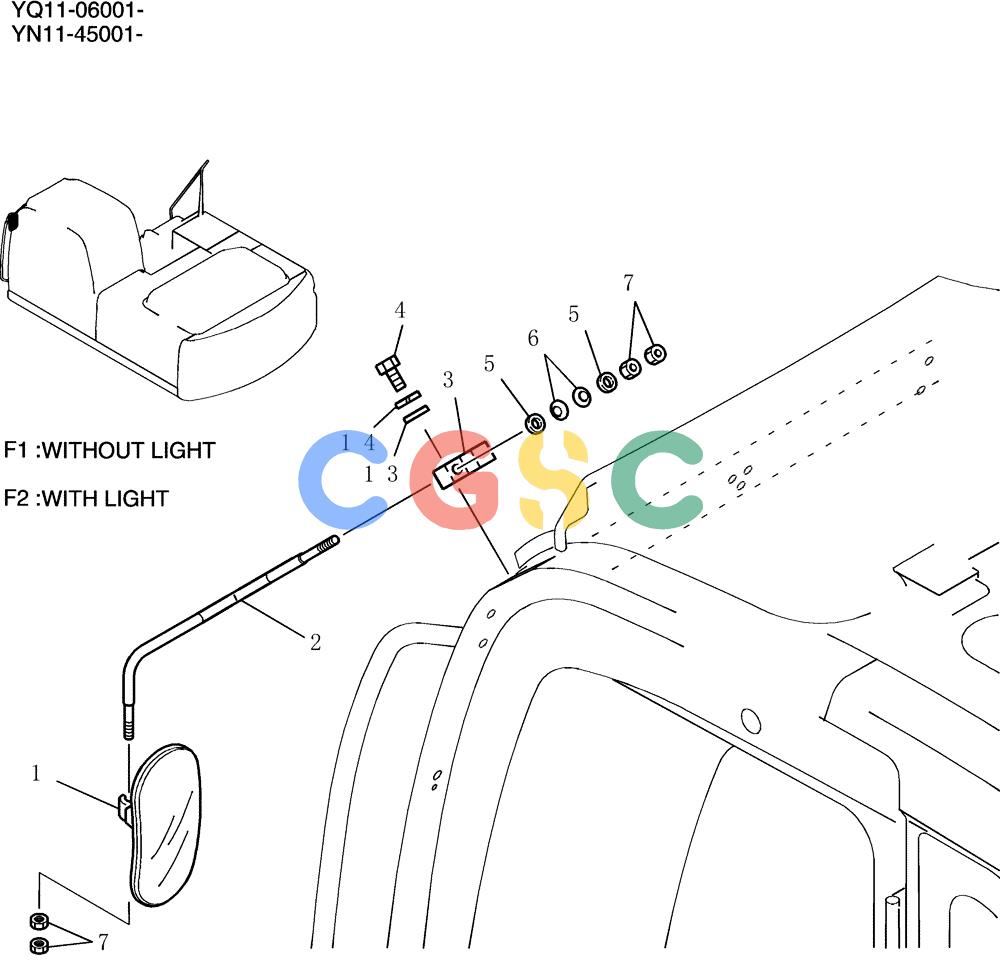

神钢零件查询(200-8) - EXCAVATOR S/N YN11-45001 - (1/06-12/09) (738-01-1) - MIRROR INSTAL Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
456 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN52C00004F1 | [1] | MIRROR | KOBInstal |
| . . | YN52C00004F2 | [1] | MIRROR | KOBInstal |
| 1. | 2456Z253 | [1] | MIRROR | KOBBack |
| 2. | YN52C01007P1 | [1] | STAY | KOBStay |
| 3. | YN02C01762P1 | [1] | BRACKET | KOB |
| 4. | ZS18C10050 | [2] | SCREW,Hex, M10 x 50mm | KOBCap |
| 5. | ZW16X12000 | [2] | WASHER | KOB |
| 6. | R16T0137D1 | [2] | WASHER | KOB |
| 7. | ZN18C12010 | [4] | NUT | KOB |
| 13. | ZW16H10000 | [2] | WASHER | KOB |
| 14. | ZW26X10000 | [2] | LOCK WASHER | KOB |
