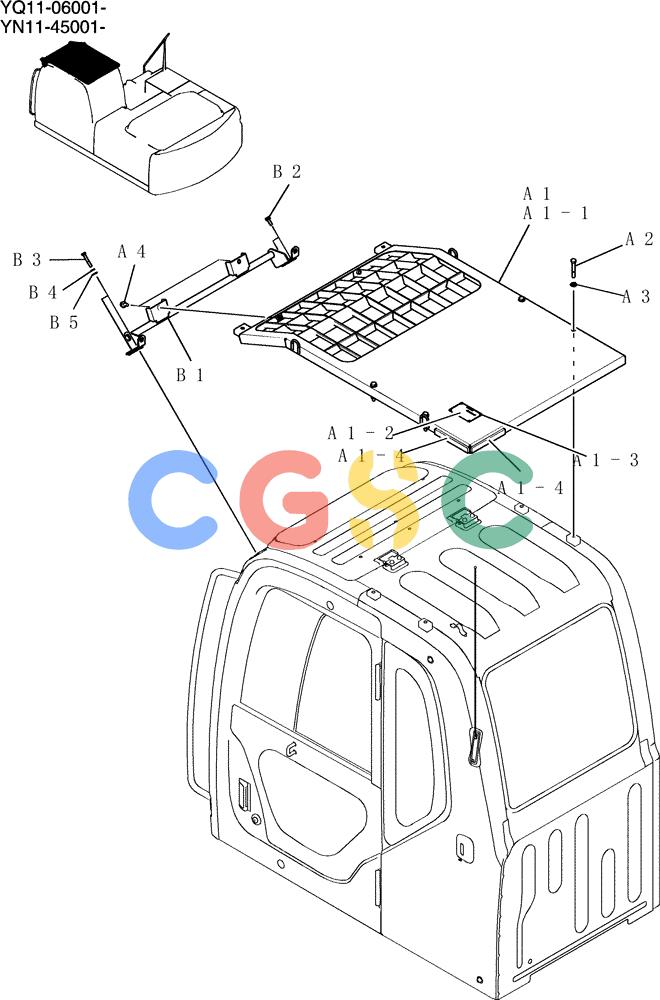

神钢零件查询(200-8) - EXCAVATOR S/N YN11-45001 - (1/06-12/09) (741-02-1) - CAB & GUARD ASSY (HEAD GUARD) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
642 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN01C00014F1 | [1] | Cab & Guard Assy | |
| . . | YN02C03341F1 | [1] | Guard Assy | |
| A1. | YN25C00009F1 | [1] | GUARD | KOBGuard Assy, Head |
| A1-1. | YN02C03337P1 | [1] | GUARD | KOBGuard |
| A1-2. | YN20T01328P2 | [1] | NUMBER PLATE LAMP | KOB |
| A1-3. | 4020Z64 | [4] | RIVET | KOB Superseded by part number: 2420P623D7 |
| A1-4. | YN25C01016D1 | [2] | FOAM INSULATION | KOBInsulation |
| A2. | ZS18C12080 | [4] | SCREW,Hex, M12 x 80mm | KOBCap |
| A3. | ZW16H12000 | [4] | WASHER | KOB |
| A4. | ZM73C12025 | [2] | BOLT,M12x25mm - Course Thread | KOBSems |
| . . | YN02C03480F1 | [1] | SUPPORT | KOBSupport Assy |
| B1. | YN02C03335P1 | [1] | SUPPORT | KOBSupport |
| B2. | ZM73C10030 | [2] | BOLT,M10x30mm - Course Thread | KOBSems |
| B3. | ZS18C10060 | [2] | SCREW,Hex, M10 x 60mm | KOBCap |
| B4. | ZW26X10000 | [2] | LOCK WASHER | KOB |
| B5. | ZW16H10000 | [2] | WASHER | KOB |
