神钢零件查询(200-8) - EXCAVATOR S/N YN11-45001 - (1/06-12/09) (HC120-62-1) - VALVE ASSY, CONTROL Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
835 次

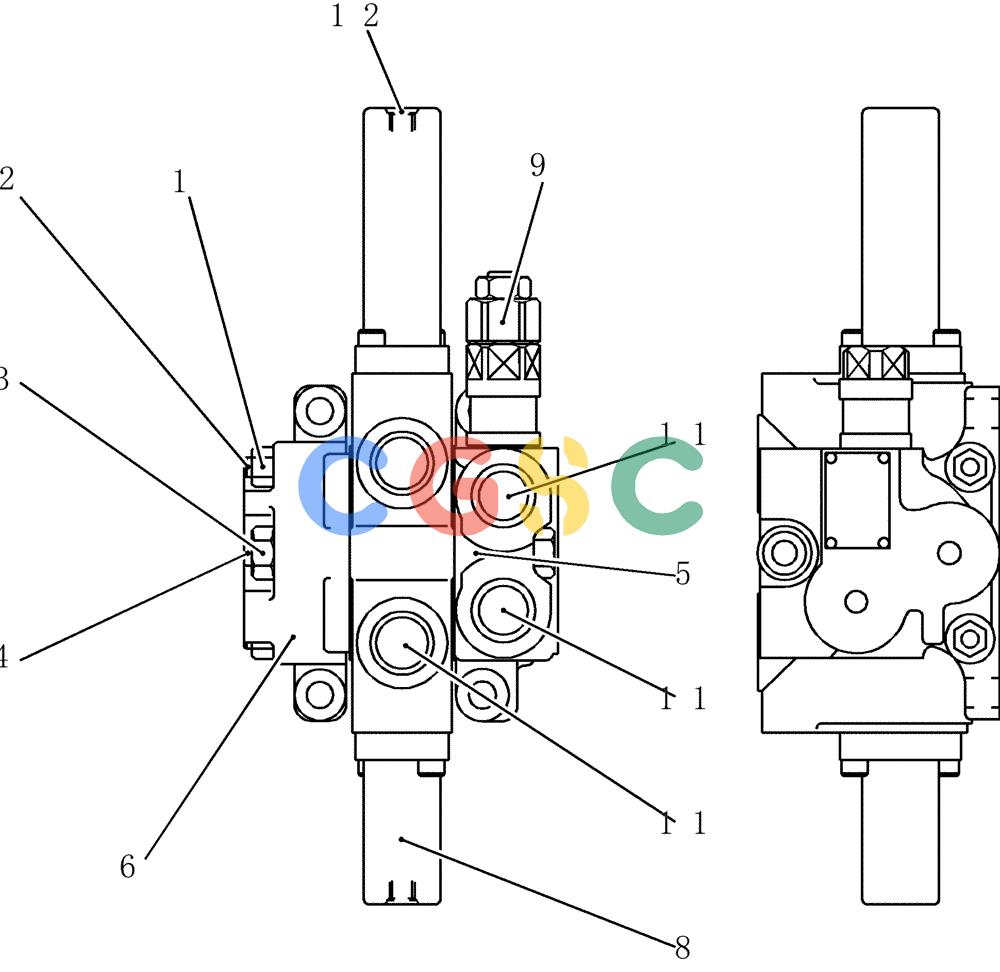

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YT30V00022F1 | [1] | CONTROL VALVE | KOBAssy.Control |
| 1. | ZN18C08007 | [4] | NUT | KOBM08x1.25mm |
| 2. | 2436U880S6 | [2] | TIE-ROD | KOB |
| 3. | 2436U424S9 | [2] | NUT | KOB |
| 4. | 2436U880S8 | [1] | TIE-ROD | KOB |
| 5. | YR20V00001F1 | [1] | VALVE | KOBSection Assy Inlet (See Fig No183) |
| 6. | 2436R329F1 | [1] | OUTLET | KOBSection Assy |
| 8. | YT30V00028F1 | [1] | Spool (See Fig No 121) | |
| 9. | 2436R1119F3 | [1] | VALVE | KOBAssy, Relief (See Fig No 181) |
| 11. | YR30V00014S010 | [4] | PLUG | KOB |
| 12. | 2436U2937S18 | [2] | PLUG | KOB |
