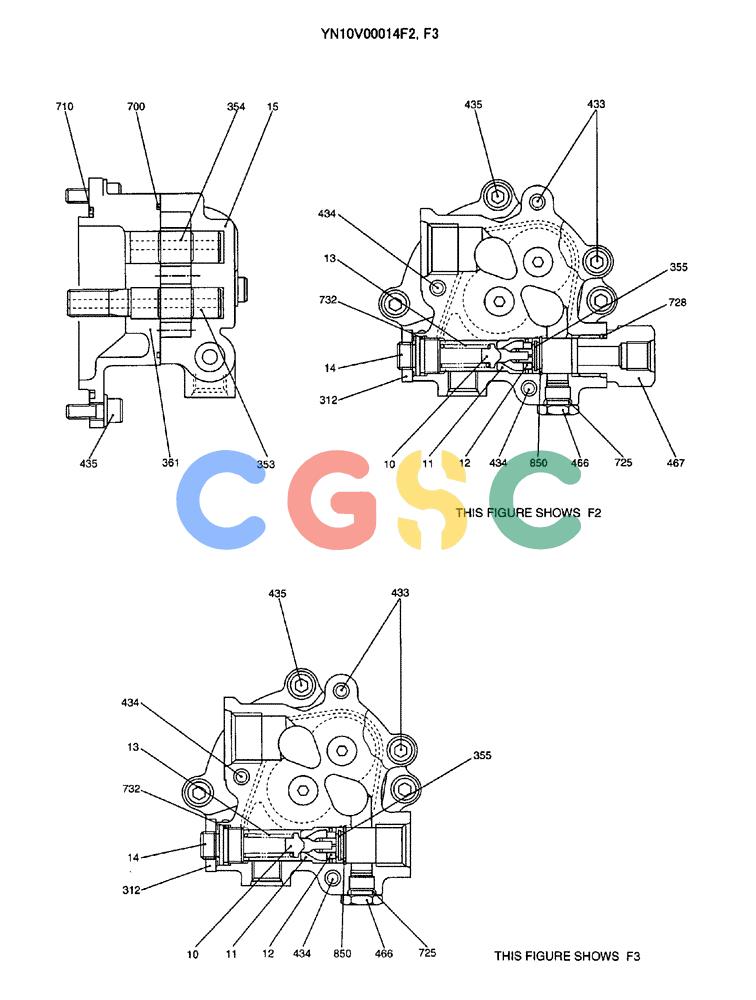

神钢零件查询(200-8) - EXCAVATOR S/N YN11-45001 - (1/06-12/09) (HC420-01-1) - PUMP ASSY, GEAR Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
421 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN10V00014F2 | [1] | PUMP | KOBAssy, Gear |
| . . | YN10V00014F2R | [1] | REMAN-HYD PUMP | RAC200-8, SK210D-8, Both S/N YN11-45001, SK210DLC-8, SK210LC-8, Both S/N YQ11-06001, All EXCAVATOR, Assy, Gear |
| . . | YN10V00014F2C | [1] | CORE-HYDRAULIC PUMP | RACReturn Number |
| . . | YN10V00014F3 | [1] | PUMP | KOBAssy, Gear |
| 10. | NSS | [1] | NOT SOLD SEPARAT | CONPoppet |
| 11. | NSS | [1] | NOT SOLD SEPARAT | CONSeat |
| 12. | YN10V00014S012 | [1] | RING | KOB |
| 13. | YN10V00014S013 | [1] | SPRING | KOB |
| 14. | YN10V00014S014 | [1] | SCREW | KOBAdjust |
| 15. | NSS | [1] | NOT SOLD SEPARAT | CONCase |
| 312. | YN10V00006S312 | [1] | LOCK NUT | KOB |
| 353. | NSS | [1] | NOT SOLD SEPARAT | CONGear, Drive |
| 354. | NSS | [1] | NOT SOLD SEPARAT | CONGear, Driven |
| 355. | YN10V00006S355 | [1] | FILTER | KOB |
| 361. | NSS | [1] | NOT SOLD SEPARAT | CONCase |
| 433. | YN10V00006S433 | [2] | SOCKET | KOBSems-bolt |
| 434. | YN10V00006S434 | [2] | SOCKET | KOBSems-bolt |
| 435. | YN10V00014S435 | [4] | BOLT | KOBCapscrew |
| 466. | 2441U667S466 | [1] | PLUG | KOB |
| 467. | YN10V00006S467 | [1] | ADAPTER | KOB(F2 ONLY) |
| 700. | YN10V00006S700 | [1] | RING | KOB |
| 710. | ZD12G09500 | [1] | O-RING,3.1mm Thk x 94.4mm ID, 90 Duro | KOBO-ring |
| 725. | ZD12P01100 | [1] | O-RING | KOBID 10.8mm x OD 13.2mm |
| 728. | ZD12P01800 | [1] | O-RING | KOBID 17.8mm x OD 20.2mm (F2 ONLY) |
| 732. | ZD12P01600 | [1] | O-RING | KOB |
| 850. | ZR26X01800 | [1] | RING | KOBRetaining |
| . . | YN10V00014R300 | [1] | REPAIR KIT | KOBConsists Of Item 10x1, 11x1, 15x1, 353x1, 354x1, 361x1 |
