神钢零件查询(200-8) - EXCAVATOR S/N YN11-45001 - (1/06-12/09) (HC500-01-1) - PUMP ASSY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
290 次

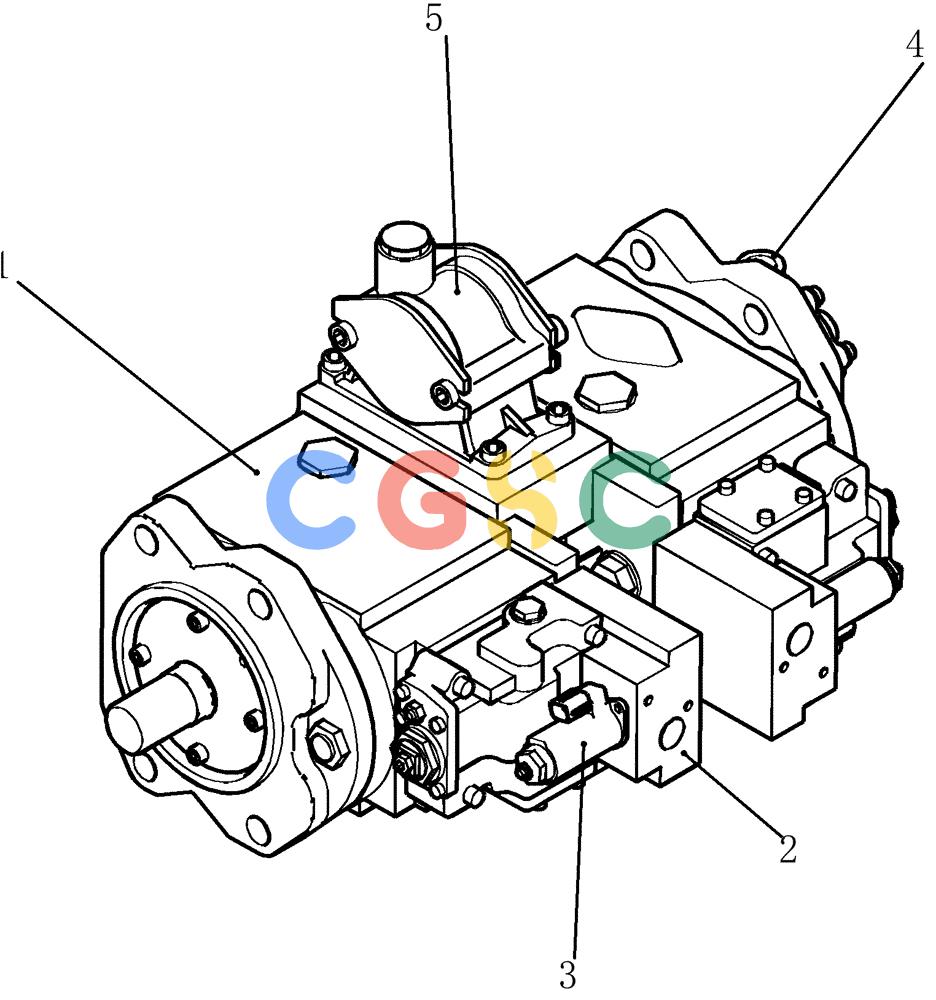

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN10V00040F1 | [1] | PUMP | KOBAssy Superseded by part number: YN10V00040F4 |
| 1. | YN10V00043F1 | [1] | HYDRAULIC PUMP | SMAssy (Not In Service) (See Fig No 405) |
| 2. | YN10V01009F1 | [2] | SPEED GOVERNOR | SMRegulator Assy (See Fig No 410) Superseded by part number: YN10V01009F4 |
| 3. | YN35V00052F1 | [2] | VALVE | KOBAssy, Solenoid (See Fig No 415) Superseded by part number: YN35V00054F1 |
| 4. | YN10V00014F3 | [1] | PUMP | KOBAssy.Gear (See Fig No 420) |
| 5. | YN46W00001F2 | [1] | GEAR | KOBCase Assy (See Fig No 525) |
