神钢零件查询(200-8) - EXCAVATOR S/N YN11-45001 - (1/06-12/09) (HC550-64-1) - PUMP ASSY, GEAR Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
466 次

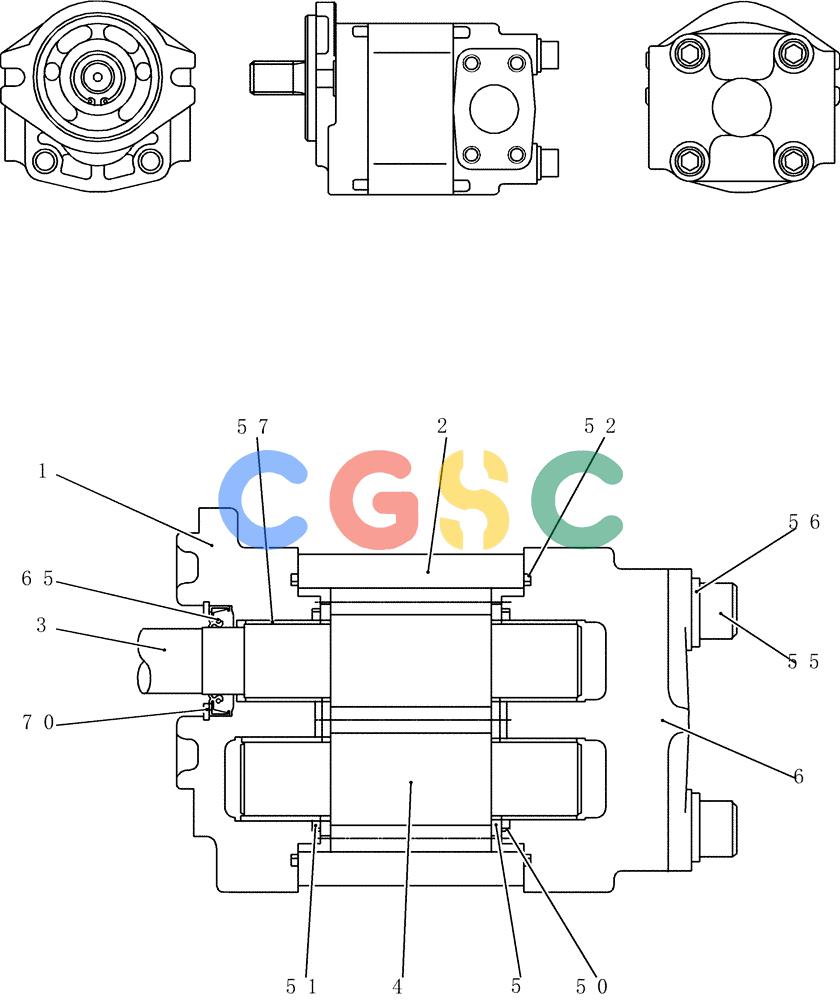

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN10V00019F1 | [1] | PUMP,20.3 CC | KOBAssy, Gear |
| 1. | NSS | [1] | NOT SOLD SEPARAT | CONCover |
| 2. | NSS | [1] | NOT SOLD SEPARAT | CONBody |
| 3. | NSS | [1] | NOT SOLD SEPARAT | CONGear, Drive |
| 4. | NSS | [1] | NOT SOLD SEPARAT | CONGear, Driven |
| 5. | NSS | [2] | NOT SOLD SEPARAT | CONPlate |
| 6. | NSS | [1] | NOT SOLD SEPARAT | CONCover |
| 50. | YN10V00019S050 | [2] | RING | KOBBack Up |
| 51. | YN10V00019S051 | [2] | GASKET | KOB |
| 52. | YN10V00019S052 | [2] | GASKET | KOBGasket |
| 55. | YN10V00019S055 | [4] | SCREW | KOBCapscrew |
| 56. | YN10V00019S056 | [4] | WASHER | KOB |
| 57. | NSS | [4] | NOT SOLD SEPARAT | CONBushing |
| 65. | YN10V00019R100 | [1] | REPAIR KIT | KOBOil Seal |
| 70. | YN10V00019S070 | [1] | RING | KOBRetaining Superseded by part number: YN10V00019R100 |
| . . | YN10V00019R100 | [1] | REPAIR KIT | KOBConsists Of Ref. 50x2, 51x2, 52x2 |
| . . | ZD12G09500 | [1] | O-RING,3.1mm Thk x 94.4mm ID, 90 Duro | KOBSeals between Gear pump and Main Pump |
