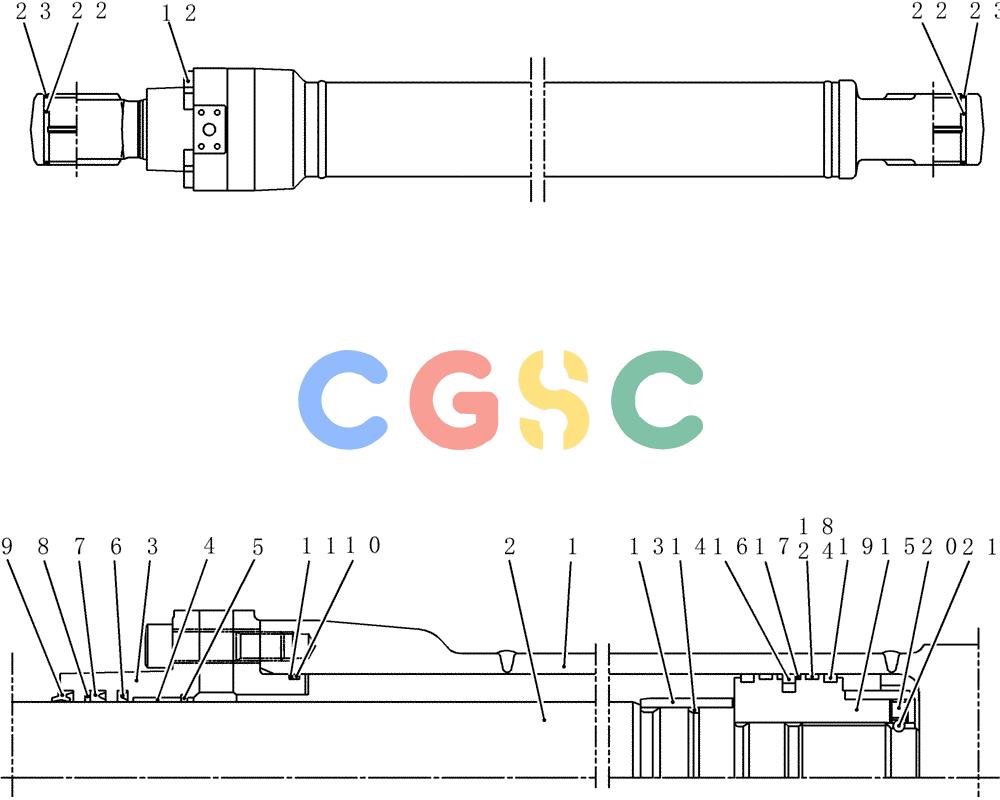

神钢零件查询(200-8) - EXCAVATOR S/N YN11-45001 - (1/06-12/09) (HC600-01-1) - CYLINDER ASSY, BOOM Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
112 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN01V00151F1 | [1] | CYLINDER | KOBAssy, Boom Superseded by part number: YN01V00151F2 |
| . . | YN01V00151F2 | [1] | CYLINDER,Double Acting, 85mm Rod, 1355mm Stroke | KOBAssy, Boom |
| 1. | NSS | [1] | NOT SOLD SEPARAT | CONTube, Cylinder |
| 2. | NSS | [1] | NOT SOLD SEPARAT | CONRod, Piston |
| 3. | YN01V00151S003 | [1] | CYLINDER HEAD | KOB |
| 4. | 2438U1106S17 | [1] | BUSHING | KOB |
| 5. | 2438U959S5 | [1] | RING | KOBRetaining |
| 6. | YN01V00151S006 | [1] | RING | KOBBuffer |
| 7. | YN01V00151S007 | [1] | RING | KOBU |
| 8. | 2438U959S8 | [1] | RING | KOBBack Up |
| 9. | LP01V00008S009 | [1] | RING | KOBWiper |
| 10. | ZD12G11500 | [1] | O-RING,114.40mm ID x 120.60mm OD x 3.10mm | KOB |
| 11. | 2438U1105S12 | [1] | BACK-UP RING | KOB |
| 12. | ZS23C16075 | [12] | SCREW,Hex Socket Head, M16 x 75mm | KOBCap |
| 13. | YN01V00151S013 | [1] | BEARING | KOBCushion |
| 14. | YN01V00103S014 | [1] | SEAL | KOBCushion |
| 15. | YN01V00151S015 | [1] | PISTON | KOB |
| 16. | 2438U1105S16 | [1] | RING ASSY. | KOBSeal |
| 17. | LQ01V00004S017 | [2] | BACK-UP RING | KOB |
| 18. | YN01V00151S018 | [2] | RING | KOBSlide (For F1 ONLY) Superseded by part number: 2438U1105S17 |
| 19. | 2438U1105S18 | [2] | RING | KOBSlide |
| 20. | 2438U999S21 | [1] | SET SCREW | KOBSet |
| 21. | 2436U330S16 | [1] | BALL | KOB |
| 22. | YN01V01109P1 | [4] | BUSHING,85mm ID x 100mm OD x 47mm L | SM |
| 23. | 2438U941S3 | [4] | DUST CAP | KOBSeal |
| 24. | 2438U1105S17 | [2] | RING | KOBSlide (For F2 ONLY) |
| . . | YN01V00151R100 | [1] | REPAIR KIT | KOBRod Side |
| . . | YN01V00151R200 | [1] | REPAIR KIT | KOBPiston Side (For F1 ONLY) Superseded by part number: YN01V00151R600 |
| . . | YN01V00151R300 | [1] | REPAIR KIT | KOBAll (Rod + Piston) (For F1 ONLY) Superseded by part number: YN01V00151R700 |
| . . | YN01V00151R400 | [1] | REPAIR KIT | KOBConsists Of Ref. 1x1, 22x4, 23x4 |
| . . | YN01V00151R500 | [1] | REPAIR KIT | KOBConsists Of Ref. 2x1, 22x4, 23x4 |
| . . | YN01V00151R600 | [1] | SEAL KIT | KOBRepair Consists Of Ref. 14x1, 16x1, 17x2, (For F2 ONLY) |
