神钢零件查询(200-8) - EXCAVATOR S/N YN11-45001 - (1/06-12/09) (HC770-74-1) - CYLINDER ASSY, JIB Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
555 次

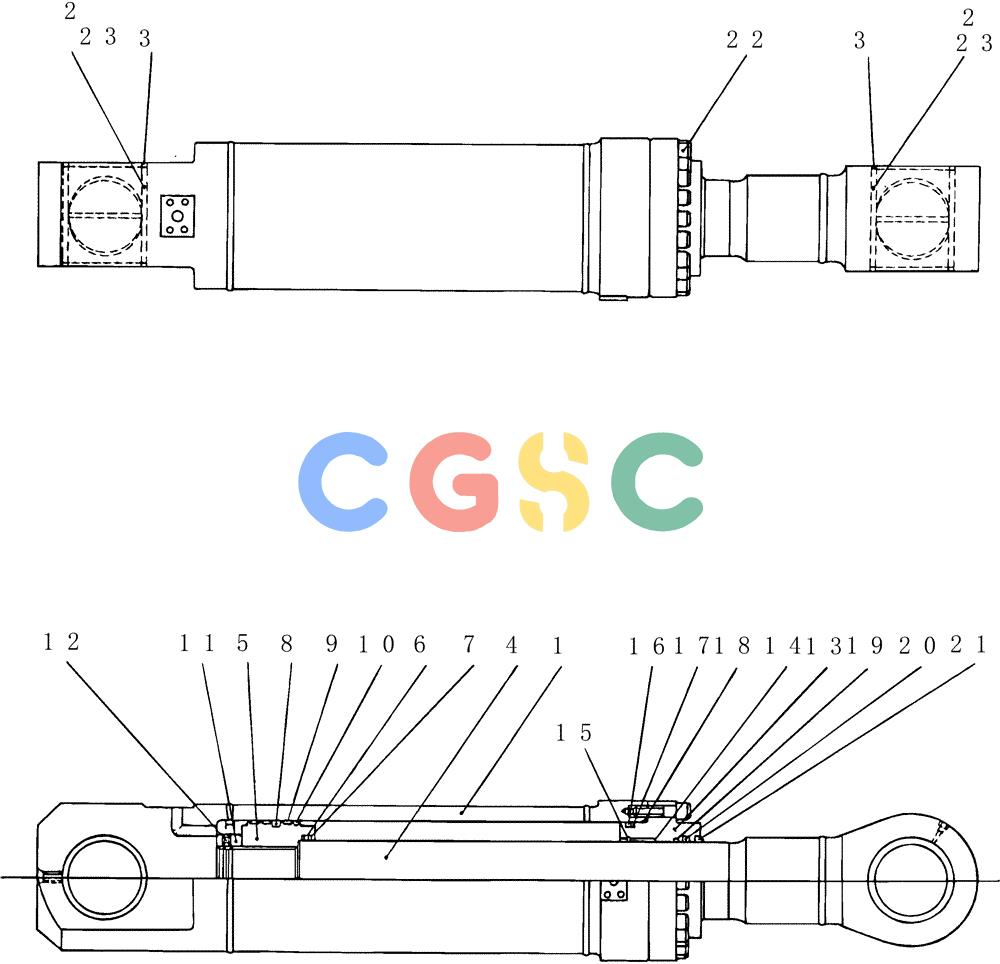

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN01V00090F1 | [1] | CYLINDER | KOBJib Superseded by part number: YN01V00090F2 |
| . . | YN01V00090F2 | [1] | CYLINDER | KOBJib |
| 1. | NSS | [1] | NOT SOLD SEPARAT | CONTube, Cylinder |
| 2. | YN01V00090S002 | [2] | BUSHING | KOB(For F1 ONLY) Superseded by part number: YN01V01089P1 |
| 3. | YN01V00090S003 | [4] | SEAL | KOBDust |
| 4. | NSS | [1] | NOT SOLD SEPARAT | CONRod, Piston |
| 5. | YN01V00090S005 | [1] | PISTON | KOBPiston |
| 6. | ZD12G14000 | [1] | O-RING,139.40mm ID x 145.60mm OD x 3.10mm | KOB |
| 7. | ZD75G14000 | [2] | RING | KOBBack Up |
| 8. | YN01V00090S008 | [1] | SEAL | KOBPiston |
| 9. | YN01V00090S009 | [3] | RING | KOBWear |
| 10. | YN01V00090S010 | [2] | RING | KOB |
| 11. | YN01V00090S011 | [1] | NUT | KOB |
| 12. | YN01V00090S012 | [1] | SET SCREW | KOB |
| 13. | YN01V00090S013 | [1] | COVER | KOB |
| 14. | YN01V00090S014 | [1] | BUSHING | KOB |
| 15. | 2438U402S18 | [1] | CLIP | KOB |
| 16. | ZD12G20000 | [1] | O-RING,199.30mm ID x 210.70mm OD x 5.70mm | KOB |
| 17. | 2438U1366S36 | [1] | RING | KOBBack Up |
| 18. | 2438U1366S45 | [1] | O-RING | KOB |
| 19. | YN01V00090S019 | [1] | SEAL | KOBBuffer |
| 20. | 2438U461S14 | [1] | U-PACKING | KOBU-packing |
| 21. | YN01V00090S021 | [1] | SEAL | KOBDust |
| 22. | ZS23C20080 | [20] | SCREW,Hex Socket Head, M20 x 80mm | KOBCap |
| 23. | YN01V01089P1 | [2] | BUSHING | KOB(For F2 ONLY) |
| . . | YN01V00090R100 | [1] | REPAIR KIT | KOBRepair Kit Rod Side |
| . . | YN01V00090R200 | [1] | REPAIR KIT | KOBRepair Kit Piston Side Superseded by part number: YN01V00090R300 |
| . . | YN01V00090R300 | [1] | REPAIR KIT | KOBRepair Kit All (Rod + Piston) |
| . . | YN01V00090R400 | [1] | REPAIR KIT | KOBRepair Kit Consists Of Ref. 1x1, 2x1, 3x2 (For F1 ONLY) |
| . . | YN01V00090R500 | [1] | REPAIR KIT | KOBRepair Kit Consists Of Ref. 2x1, 3x2, 3x1 (For F1 ONLY) |
