神钢零件查询(200-8) - EXCAVATOR S/N YN11-45001 - (1/06-12/09) (HC780-49-1) - CYLINDER ASSY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
963 次

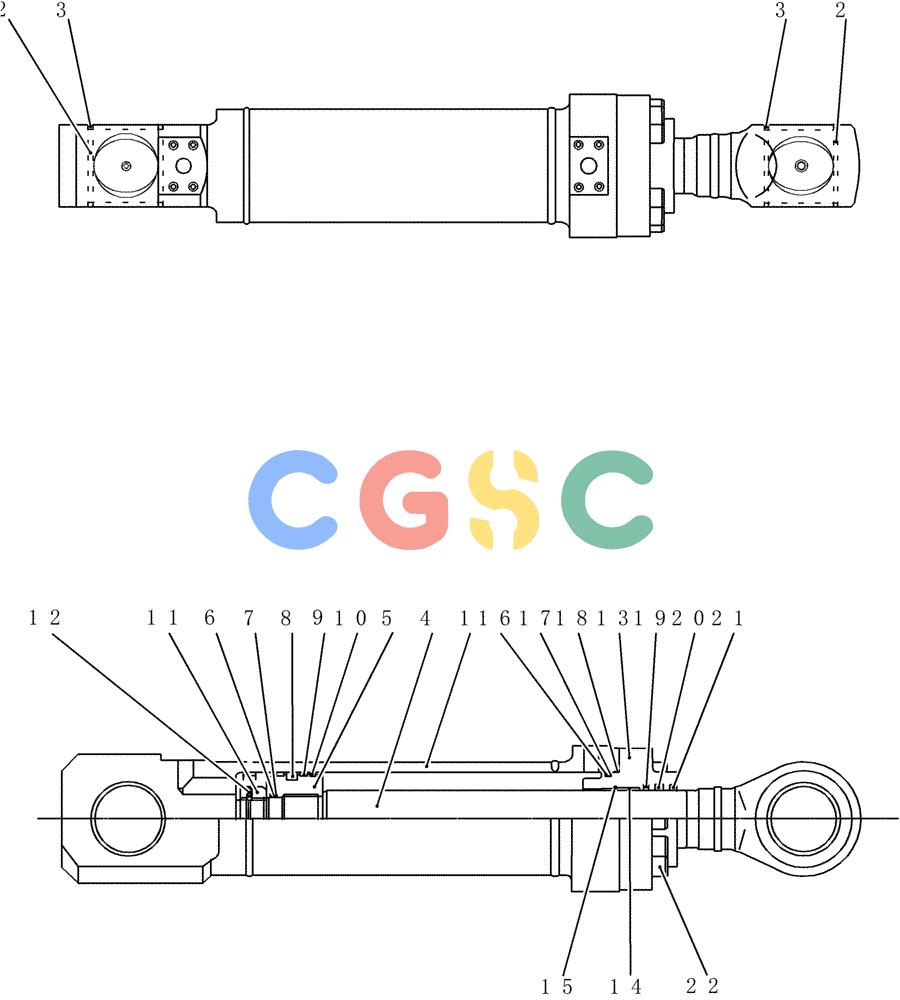

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN01V00086F1 | [1] | CYLINDER | KOB |
| 1. | NSS | [1] | NOT SOLD SEPARAT | CONTube, Cylinder |
| 2. | 2438U1106S2 | [2] | BUSHING | KOBID 79.29mm x OD 90.12mm x H 89.98mm |
| 3. | 2438U1109S28 | [4] | SEAL | KOBDust |
| 4. | NSS | [1] | NOT SOLD SEPARAT | CONRod, Piston |
| 5. | YN01V00086S005 | [1] | PISTON | KOB |
| 6. | LP01V00001S008 | [1] | O-RING | KOB |
| 7. | LP01V00001S009 | [2] | BACK-UP RING | KOB |
| 8. | YN01V00004S029 | [1] | SEAL | KOBPiston Superseded by part number: EY01V00003S006 |
| 9. | YN01V00004S009 | [2] | WEAR RING | KOB |
| 10. | YN01V00004S010 | [2] | RING | KOBSlide |
| 11. | LP01V00001S013 | [1] | NUT | KOBPiston |
| 12. | YN01V00001S014 | [1] | SCREW | KOBSet |
| 13. | YN01V00086S013 | [1] | COVER | KOB |
| 14. | 2438U1099S19 | [1] | BUSHING | KOB |
| 15. | B38K0033E15 | [1] | CLIP | KOB |
| 16. | ZD12G11000 | [1] | O-RING,109.40mm ID x 115.60mm OD x 3.10mm | KOB |
| 17. | YN01V00004S018 | [1] | BACK-UP RING | KOB |
| 18. | ZD12G11500 | [1] | O-RING,114.40mm ID x 120.60mm OD x 3.10mm | KOB |
| 19. | LP01V00001S022 | [1] | SEAL | KOB |
| 20. | 2438U561S11 | [1] | ROD | KOBPacking Superseded by part number: 2438U971S23 |
| 21. | 2438U922S31 | [1] | SEAL | KOBDust |
| 22. | ZS23C16065 | [10] | SCREW,Hex Socket Head, M16 x 65mm | KOB |
| . . | YN01V00086R100 | [1] | REPAIR KIT | KOBRepair Kit Rod Side |
| . . | YN01V00086R200 | [1] | REPAIR KIT | KOBRepair Kit Piston Side |
| . . | YN01V00086R300 | [1] | REPAIR KIT | KOBRepair Kit All (Rod + Piston) |
| . . | YN01V00086R400 | [1] | REPAIR KIT | KOBRepair Kit Consists Of Ref. 1x1, 2x1, 3x2 |
| . . | YN01V00086R500 | [1] | REPAIR KIT | KOBRepair Kit Consists Of Ref. 2x1, 3x2, 4x1 |
