神钢零件查询(200-8) - EXCAVATOR S/N YN11-45001 - (1/06-12/09) (HC781-49-1) - CYLINDER ASSY (CLAMP ARM) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
958 次

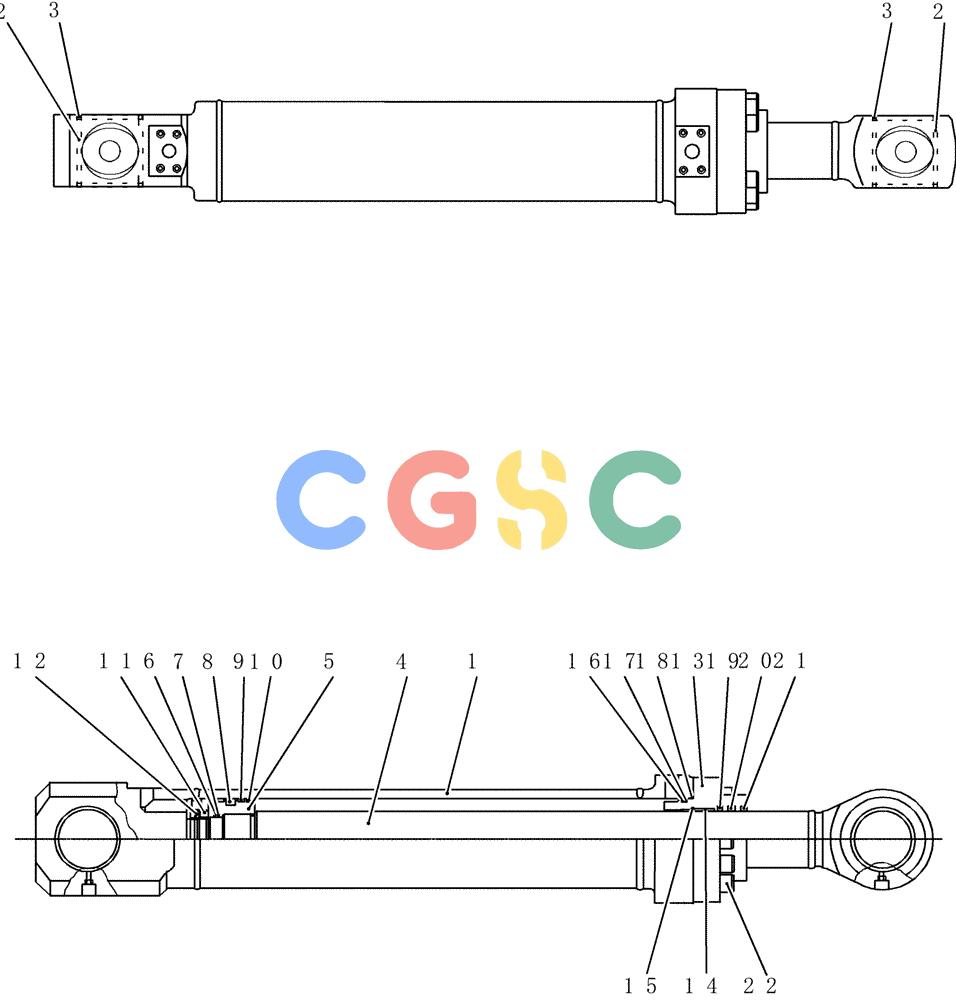

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN01V00087F1 | [1] | CYLINDER | KOB |
| 1. | NSS | [1] | NOT SOLD SEPARAT | CONTube, Cylinder |
| 2. | YN01V00087S002 | [2] | BUSHING | KOB |
| 3. | 2438U1109S28 | [4] | SEAL | KOBDust |
| 4. | NSS | [1] | NOT SOLD SEPARAT | CONRod, Piston |
| 5. | YN01V00087S005 | [1] | PISTON | KOB |
| 6. | ZD12G06500 | [1] | O-RING,64.40mm ID x 70.60mm OD x 3.10mm | KOB |
| 7. | LP01V00004S025 | [2] | BACK-UP RING | KOB |
| 8. | YN01V00052S010 | [1] | WIPER SEAL | KOB Superseded by part number: 2438U980S8 |
| 9. | 2438U1106S11 | [2] | WEAR RING | KOB |
| 10. | YN01V00052S012 | [2] | SEAL RETAINER | KOBSlide |
| 11. | YN01V00052S013 | [1] | NUT | KOBPiston |
| 12. | 2438U1280S18 | [1] | SCREW | KOBSet |
| 13. | YN01V00087S013 | [1] | COVER | KOB |
| 14. | 2438U1106S17 | [1] | BUSHING | KOB |
| 15. | 2438U278S24 | [1] | CLIP | KOBRetaining |
| 16. | ZD12G12000 | [1] | O-RING,3.1mm Thk x 119.4mm ID, 90 Duro | KOBO-ring |
| 17. | YN01V00052S020 | [1] | BACK-UP RING | KOB |
| 18. | ZD12G12500 | [1] | O-RING,124.40mm ID x 130.60mm OD x 3.10mm | KOB |
| 19. | YN01V00052S022 | [1] | SEAL | KOBBuffer |
| 20. | 2438U307S35 | [1] | PACKING | KOBRod |
| 21. | 2438U914D1S22 | [1] | SEAL, DUST | SEAL, DUST |
| 22. | ZS23C16065 | [10] | SCREW,Hex Socket Head, M16 x 65mm | KOB |
| . . | YN01V00087R100 | [1] | REPAIR KIT | KOBRepair Kit Rod Side |
| . . | YN01V00087R200 | [1] | REPAIR KIT | KOBRepair Kit Piston Side |
| . . | YN01V00087R300 | [1] | REPAIR KIT | KOBRepair Kit All (Rod + Piston) |
| . . | YN01V00087R400 | [1] | REPAIR KIT | KOBRepair Kit Consists Of Ref. 1x1, 2x1, 3x2 |
| . . | YN01V00087R500 | [1] | REPAIR KIT | KOBRepair Kit Consists Of Ref. 2x1, 3x2, 4x1 |
