神钢零件查询(200-8) - EXCAVATOR S/N YN11-45001 - (1/06-12/09) (HC781-65-1) - CYLINDER ASSY (TELESCOPIC) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
306 次

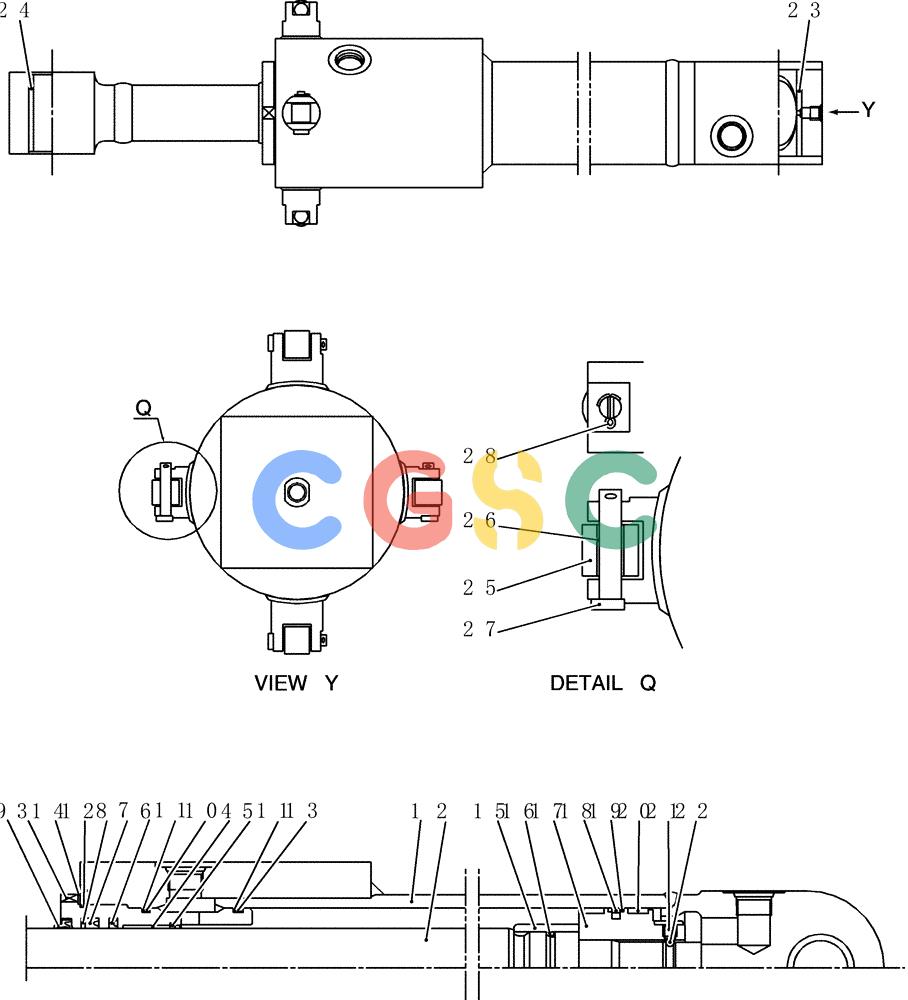

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN01V00125F1 | [1] | CYLINDER | KOB |
| 1. | NSS | [1] | NOT SOLD SEPARAT | CONTube, Cylinder |
| 2. | NSS | [1] | NOT SOLD SEPARAT | CONRod, Piston |
| 3. | YN01V00125S003 | [1] | CYLINDER HEAD | KOBCylinder |
| 4. | LE01V00002S004 | [1] | BUSHING | KOB |
| 5. | 2438U717S6 | [1] | RING | KOBRetaining |
| 6. | YR01V00019S006 | [1] | RING | KOBBuffer |
| 7. | 2438U717S13 | [1] | SNAP RING | KOBU |
| 8. | 2438U717S14 | [1] | RING | KOBBack Up |
| 9. | LE01V00019S009 | [1] | RING | KOBWiper Superseded by part number: 2438U717S12 |
| 10. | ZD12G08500 | [1] | O-RING,84.40mm ID x 90.60mm OD x 3.10mm | KOB |
| 11. | PH01V00006S008 | [3] | BACK-UP RING | KOB |
| 12. | ZD11G09000 | [1] | O-RING,89.40mm ID x 95.60mm OD x 3.10mm | KOB |
| 13. | ZD12G08000 | [1] | O-RING,79.40mm ID x 85.60mm OD x 3.10mm | KOB |
| 14. | 2438U715S8 | [1] | LOCK WASHER | KOB |
| 15. | YN01V00125S015 | [1] | RING | KOBCushion |
| 16. | YN01V00125S016 | [1] | SEAL | KOBCushion |
| 17. | YN01V00125S017 | [1] | PISTON | KOB |
| 18. | 2438U715S24 | [1] | RING | KOBSeal |
| 19. | YN01V00125S019 | [2] | RING | KOBBack Up |
| 20. | 2438U715S25 | [2] | RING | KOBSlide |
| 21. | 2438U986S18 | [1] | SET SCREW | KOBSet |
| 22. | 2436U281S37 | [1] | BALL | KOB |
| 23. | YN01V00125S023 | [1] | BUSHING | KOB |
| 24. | YN01V00125S024 | [1] | BUSHING | KOB |
| 25. | YN01V00125S025 | [4] | ROLLER | KOB |
| 26. | YN01V00125S026 | [8] | BUSHING | KOB |
| 27. | YN01V00125S027 | [4] | PIN | KOB |
| 28. | YN01V00125S028 | [4] | PIN | KOB |
| . . | YN01V00125R100 | [1] | REPAIR KIT | KOBRepair Kit Consists Of Ref. 1x1, 23x1 |
| . . | YN01V00125R200 | [1] | REPAIR KIT | KOBRepair Kit Consists Of Ref. 2x1, 24x1 |
| . . | YN01V00125R300 | [1] | REPAIR KIT | KOBRepair Kit Consists Of Ref. 6x1, 7x1, 8x1, 9x1 |
