神钢零件查询(200-8) - EXCAVATOR S/N YN11-45001 - (1/06-12/09) (HC782-50-1) - CYLINDER ASSY (CLAMP ARM) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
621 次

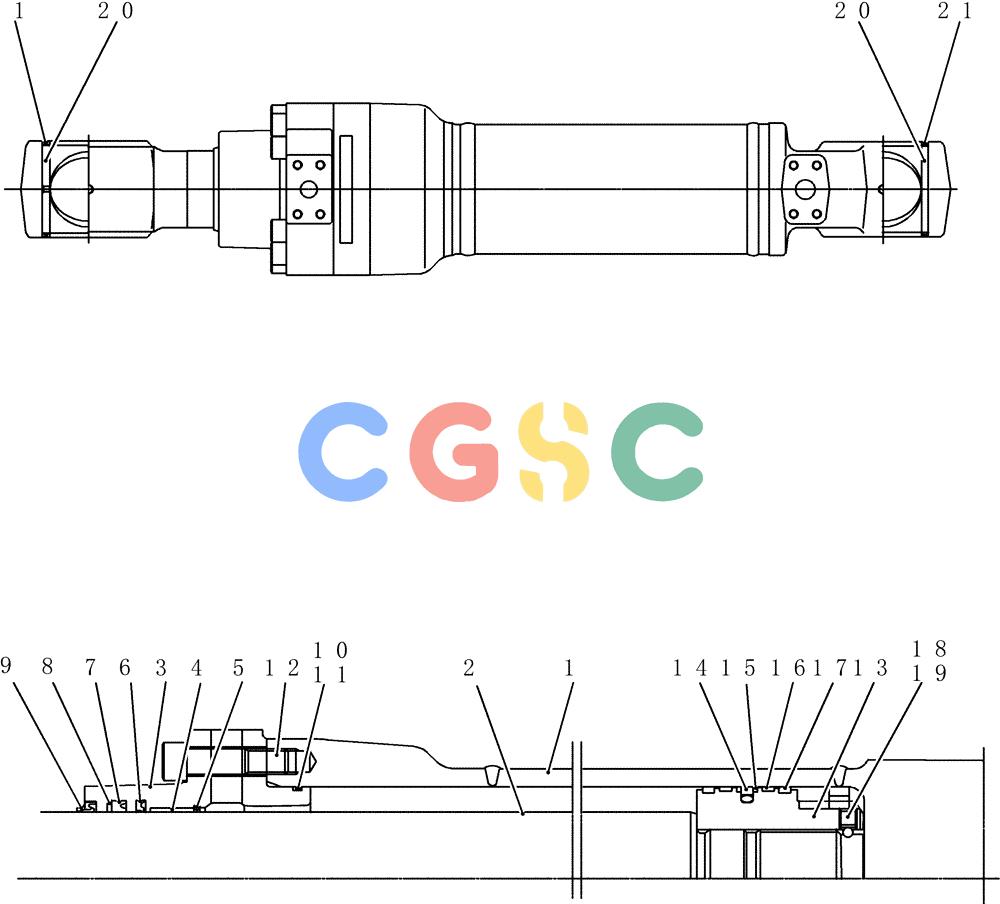

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN01V00184F1 | [1] | CYLINDER | KOB |
| 1. | NSS | [1] | NOT SOLD SEPARAT | CONTube Assy |
| 2. | NSS | [1] | NOT SOLD SEPARAT | CONRod, Piston |
| 3. | YN01V00106S003 | [1] | CYLINDER HEAD | KOBCylinder Head |
| 4. | 2438U1109S14 | [1] | BUSHING | KOB |
| 5. | 2438U1105S5 | [1] | SNAP RING | KOBRetaining |
| 6. | YN01V00153S006 | [1] | RING | KOBBuffer |
| 7. | YN01V00153S007 | [1] | RING | KOBU |
| 8. | 2438U1105S8 | [1] | RING | KOBBack Up |
| 9. | 2438U1105S35 | [1] | RING | KOBWiper |
| 10. | ZD12G11000 | [1] | O-RING,109.40mm ID x 115.60mm OD x 3.10mm | KOBO-Ring |
| 11. | YR01V00001S011 | [1] | RING | KOBBack Up |
| 12. | ZS23C16075 | [10] | SCREW,Hex Socket Head, M16 x 75mm | KOBCap |
| 13. | YN01V00184S013 | [1] | PISTON | KOB |
| 14. | LE01V00006S014 | [1] | RING | KOBSeal |
| 15. | YN01V00106S017 | [2] | BACK-UP RING | KOB |
| 16. | YN01V00184S016 | [2] | RING | KOB |
| 17. | YN01V00106S019 | [2] | SCRAPER RING | KOBSlide |
| 18. | 2438U999S21 | [1] | SET SCREW | KOBSet |
| 19. | 2436U330S16 | [1] | BALL | KOB |
| 20. | YB01V00011S024 | [2] | BUSHING | KOB |
| 21. | YN01V00153S022 | [4] | SEAL | KOBRing |
| . . | YN01V00184R100 | [1] | REPAIR KIT | KOBRepair Kit Consists Of Ref. 6x1, 7x1, 8x1,9x1 |
| . . | YN01V00184R200 | [1] | REPAIR KIT | KOBRepair Kit Consists Of Ref. 14x1, 15x2, 16x2 |
| . . | YN01V00184R300 | [1] | REPAIR KIT | KOBRepair Kit Consists Of Ref. 6x1, 7x1, 8x1, 9x1 |
| . . | YN01V00184R400 | [1] | REPAIR KIT | KOBRepair Kit Consists Of Ref. 1x1, 20x1, 21x2 |
| . . | YN01V00184R500 | [1] | REPAIR KIT | KOBRepair Kit Consists Of Ref. 2x1, 20x1, 21x2 |
