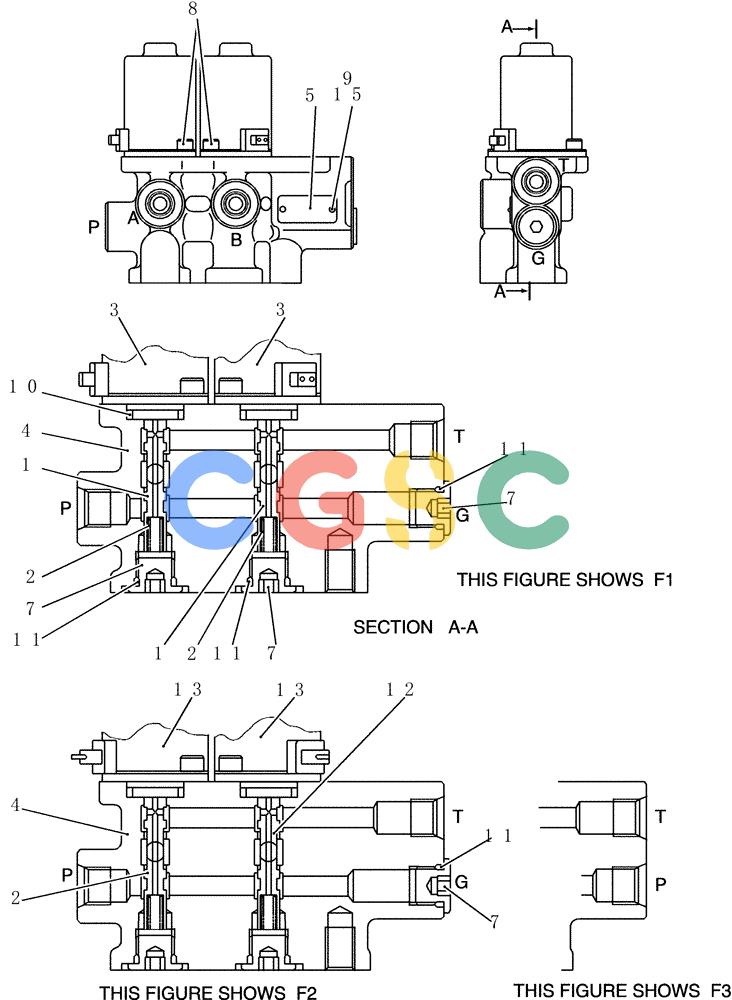

神钢零件查询(200-8) - EXCAVATOR S/N YN11-45001 - (1/06-12/09) (HC865-67-1) - VALVE ASSY, SOLENOID Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
1008 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | LC35V00004F1 | [1] | SOLENOID VALVE | KOBAssy, Solenoid |
| . . | LC35V00004F2 | [1] | SOLENOID VALVE | KOBAssy, Solenoid |
| . . | LC35V00004F3 | [1] | HYDRAULIC VALVE | SMAssy, Solenoid |
| 1. | NSS | [2] | NOT SOLD SEPARAT | CONSpool (For F1 ONLY) |
| 2. | 2436U2802S3 | [2] | SPRING | KOB |
| 3. | LC35V00004S005 | [2] | VALVE | KOBAssy, Solenoid (For F1 ONLY) |
| 4. | NSS | [1] | NOT SOLD SEPARAT | CONBody (For F1 ONLY) |
| 5. | NSS | [1] | NOT SOLD SEPARAT | CONName Plate |
| 7. | LC35V00004S007 | [2] | PLUG | KOB(For F3 ONLY) |
| . . | LC35V00004S007 | [3] | PLUG | KOB(For F1, F2 ONLY) |
| 8. | LC35V00004S008 | [4] | SCREW | KOBCap |
| 9. | EZ30V00001S037 | [2] | SCREW | KOBRivet (For F1 ONLY) |
| 10. | ZD11P01600 | [2] | O-RING | KOB |
| 11. | ZD12P01100 | [2] | O-RING | KOBID 10.8mm x OD 13.2mm (For F3 ONLY) |
| . . | ZD12P01100 | [3] | O-RING | KOBID 10.8mm x OD 13.2mm (For F1, F2 ONLY) |
| 12. | NSS | [2] | NOT SOLD SEPARAT | CONSpool (For F2, F3 ONLY) |
| 13. | YR35V00009S022 | [2] | SOLENOID VALVE | KOBAssy (For F2, F3 ONLY) |
| 14. | NSS | [1] | NOT SOLD SEPARAT | CONBody (For F2, F3 ONLY) |
| 15. | YN30V00080S023 | [2] | SCREW | KOBRivet (For F2, F3 ONLY) |
