神钢零件查询(SK130LC) - EXCAVATOR BTW YPU1001 - YPU2000 (1/98-12/98) (01-004) - COUNTER-WEIGHT ASSEMBLY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
242 次

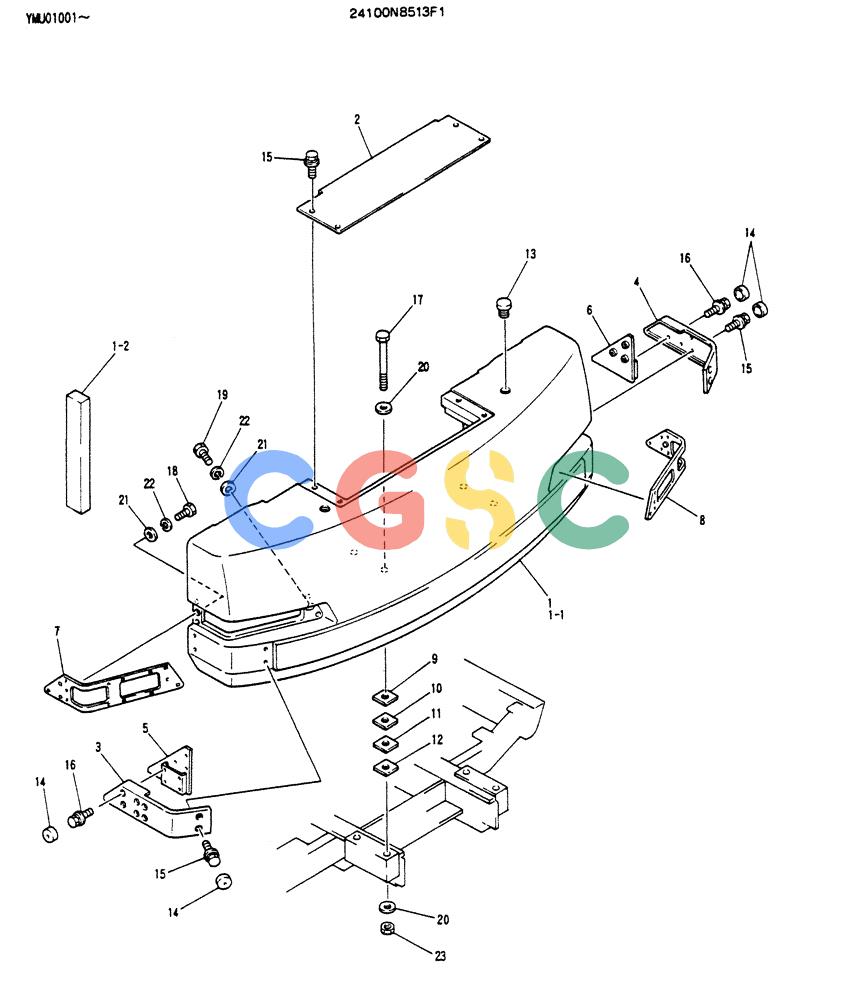

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100N8540F1 | [1] | COUNTERWEIGHT ASSY | |
| . . | 24100N8540F3 | [1] | COUNTERWEIGHT ASSY (GAIN) | |
| 1. | 24100P4382F1 | [1] | COUNTERWEIGHT ASSY (F1 ONLY) | |
| 1-1. | LP60CU0001P1 | [1] | COUNTERWEIGHT | |
| 1-2. | 2427Z1920 | [1] | FOAM INSULATION | KOB |
| 1-3. | 2427Z1956 | [1] | FOAM INSULATION | KOB |
| 3. | 2414P9747 | [1] | COVER | KOBCOVER |
| 4. | 2427J2776D2 | [1] | PROTECTOR | KOB |
| 5. | 2427J2776D1 | [1] | PROTECTOR | KOB |
| 8. | 2416P17004D2 | [1] | U-BRACKET | KOBBRACKET |
| 9. | 2416P17004D1 | [1] | U-BRACKET | KOB |
| 10. | 2418N3901 | [1] | PLATE | KOB |
| 11. | 2418N3902 | [1] | PLATE | KOB |
| 13. | 2418T12306D2 | [2] | SHIM | KOBSHIM (0.6) |
| 14. | 2418T12306D3 | [2] | SHIM | KOBSHIM (0.4) |
| 15. | 2418T12306D5 | [2] | SHIM | KOBSHIM (2.3) |
| 16. | 2418T12306D6 | [8] | SHIM | KOBSHIM (1.6) |
| 17. | 2420T7520 | [16] | PLUG | KOB |
| 18. | 2420T6786 | [12] | BOLT,M12 x 1.75 x 25mm | KOBM12x1.75x25mm (Incls. Washer & Lockwasher) Superseded by part number: ZM32C12025 |
| 19. | 2420T6788 | [8] | SCREW,M10 x 1.5 x 25mm | KOBM10x1.50x25mm (Incls. Washer & Lockwasher) Superseded by part number: ZM32C10025 |
| 20. | 2420T8293D2 | [4] | SCREW | KOBCAPSCREW |
| 21. | ZS18C10020 | [2] | SCREW,Hex, M10 x 20mm | KOBM10x1.50x20mm |
| 22. | ZS18C10045 | [2] | SCREW,Hex, M10 x 45mm | KOBM10x1.50x45mm |
| 23. | ZW13H24000 | [8] | WASHER | KOBID 24 x OD 39 x Th 4.0mm |
| 24. | 2418T21031 | [4] | WASHER | KOB |
| 25. | ZW26X10000 | [4] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 26. | ZN13C24019 | [4] | NUT | KOBM24x3.0mm |
| 29. | 24100P4382F2 | [1] | COUNTERWEIGHT ASSY (F3 ONLY) | |
| 29-2. | 2427Z1920 | [1] | FOAM INSULATION | KOB |
| 29-3. | 2427Z1956 | [1] | FOAM INSULATION | KOB |
| 29-4. | LP60CU0002P1 | [1] | COUNTERWEIGHT | |
