凯斯零件查询(FLX3300B) - FLOATER - 2002 (9/02-10/03) (02-028) - MANIFOLDS Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
143 次

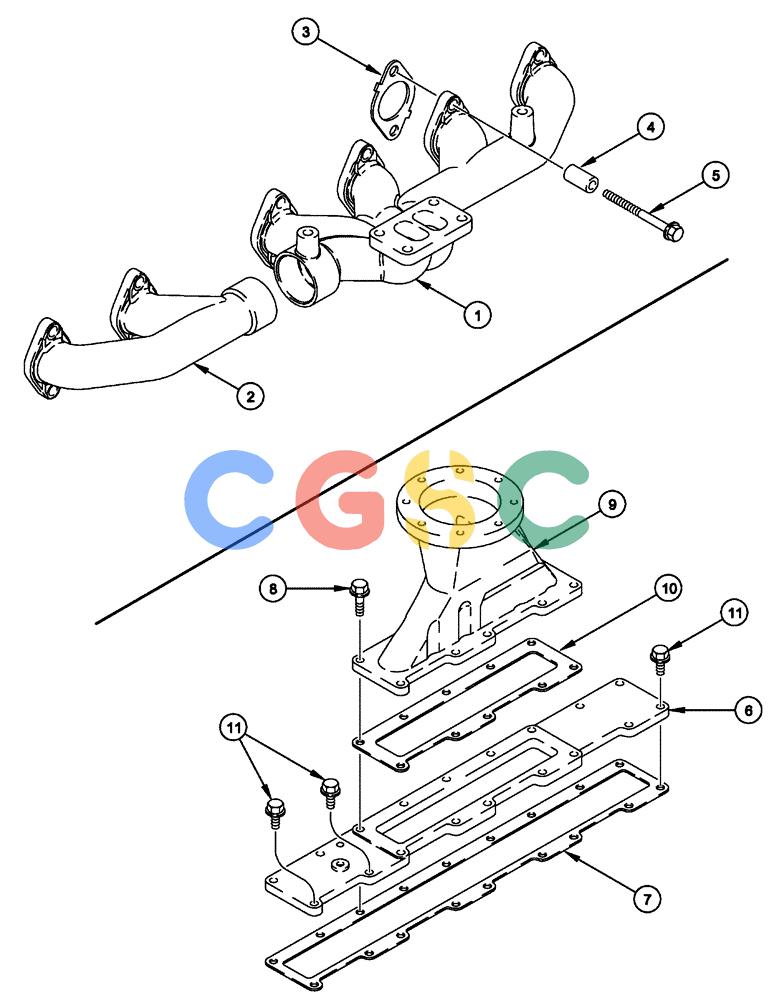

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
J943841
|
[1] |
EXHAUST MANIFOLD
|
CAS
|
| 2. |
J937477
|
[1] |
MANIFOLD
|
CAS
Exhaust
|
| 3. |
J937479
|
[6] |
MANIFOLD GASKET
|
CAS
Exhaust Manifold Superseded by part number: 84368103
|
| 4. |
J945252
|
[12] |
SPACER
|
CAS
Mounting, 35 mm, Exhaust
|
| 5. |
J944593
|
[12] |
BOLT
|
CAS
Hex Flange, 10 - 1.5 X 65 MM, Exhaust Superseded by part number: 504085705
|
| 6. |
J944342
|
[1] |
COVER
|
CAS
Intake Maifold Superseded by part number: CASJ944342, CASJ944342, P4743717
|
| 7. |
J944646
|
[1] |
MANIFOLD GASKET
|
CAS
Intake Manifold Cover
|
| 8. |
86511842
|
[10] |
BOLT,M8 x 1.25 x 48.1mm OAL, Cl 8.8
|
NH
|
| 9. |
J943613
|
[1] |
AIR INTAKE
|
CAS
Air Intake
|
| 10. |
J944647
|
[1] |
GASKET
|
CAS
Connector, Intake Superseded by part number: 87447963
|
| 11. |
9804260
|
[3] |
BOLT,Hex, M8 x 1.25 x 30mm, Full Thd, Cl 8.8
|
NH
|
