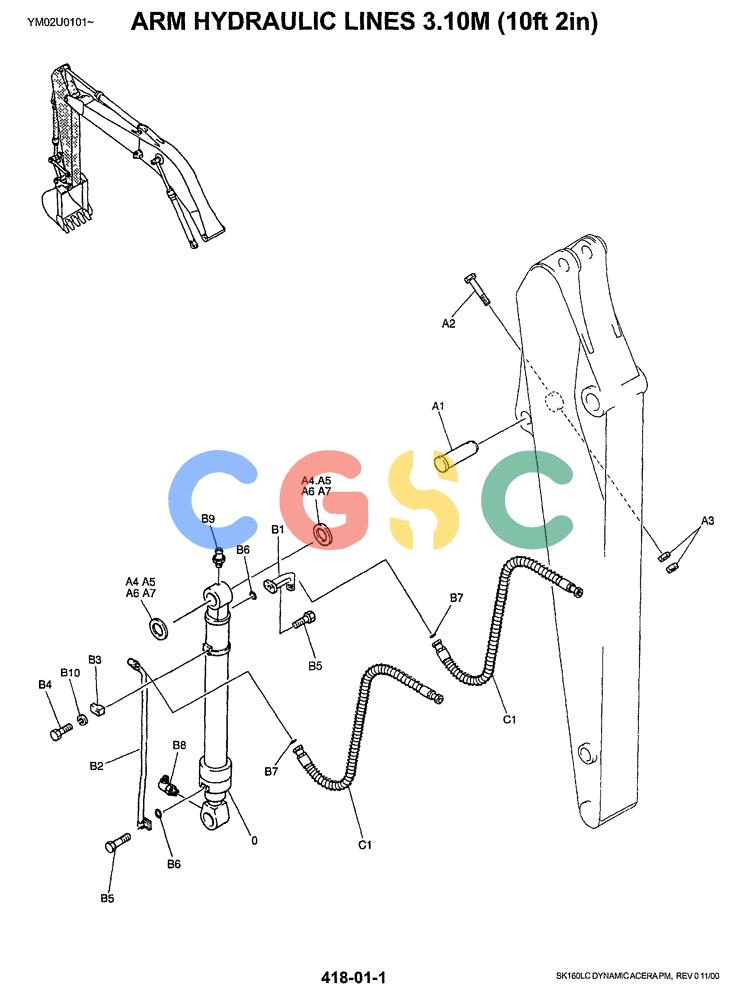

神钢零件查询(SK160LC) - DYNAMIC ACERA EXCAVATOR 11/2000 ASN YM02U0101 (11/00-12/02) (03-008) - HYDRAULIC LINES, ARM 3.10M Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
629 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 0. | YM01V00009F1 | [1] | CYLINDER | KOBBucket Cylinder Assembly,See C.P.M Superseded by part number: YM01V00009F4 |
| A1. | 2419P3898 | [1] | PIN | KOB |
| A2. | HS18C14135G2 | [1] | CAPSCREW | KOBSCREW M14x2.0x135mm |
| A3. | ZN18C14011 | [2] | NUT | KOBM14x2.0mm |
| A4. | YT02B01008D1 | [1] | SHIM,0.5mm Thk | KOB(0.5) |
| A5. | B16T0442D93 | [1] | SHIM,120mm OD x 72mm ID x 0.9mm Thk | KOBID 72 x OD 120 x Th 0.9mm |
| A6. | YT02B01008D2 | [1] | SHIM,1.2mm Thk | KOB(1.2) |
| A7. | YT02B01008D3 | [1] | SHIM,2.0mm Thk | KOB(1.6) |
| B1. | YN43H01093P1 | [1] | RIGID TUBE | KOB |
| B2. | YM43H01013P1 | [1] | TUBE,1214, 81 mm L | KOB1214mm Long (47-51/64 in) |
| B3. | YN43H01097P1 | [1] | CLAMP | KOBSingle -- 58x30x38mm (Ø28mm) |
| B4. | ZS18C10055 | [1] | SCREW,Hex, M10 x 55mm | KOBM10x1.50x55mm |
| B5. | ZS28C10035 | [8] | SCREW,Hex Socket Head, M10 x 35mm | KOBScrew -- M10x1.50x35mm |
| B6. | ZD12P02600 | [2] | O-RING | KOBID 25.70 ± 0.26 x OD 32mm |
| B7. | ZD12A01800 | [2] | O-RING,1.78mm Thk x 18.77mm ID, Cl 6 | KOBID 18.77 ± 0.12 x OD 22.33mm |
| B8. | ZG91U02000 | [1] | LUBE NIPPLE | KOB90° x 1/8" PT |
| B9. | ZG91S02000 | [1] | LUBE NIPPLE,1/8" NPT x 1/8" NPT | KOB1/8" PT -- Straight |
| B10. | ZW26X10000 | [1] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| C1. | ZX50H12155 | [2] | HOSE | KOB1550mm Long (61 in) |
