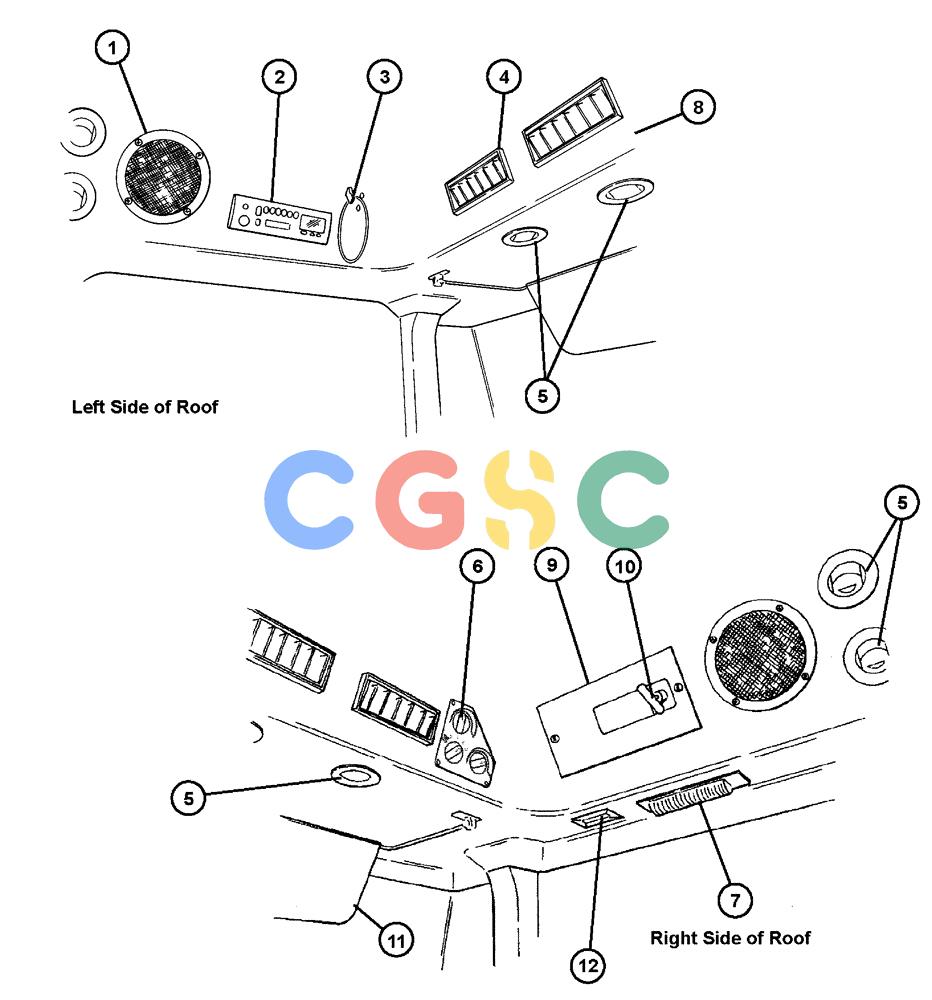

凯斯零件查询(FLX3300B) - FLOATER - 2002 (9/02-10/03) (01-003) - ACCESSORIES Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
705 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
BN2391154-002
|
[2] |
RADIO
|
BN
Speaker
|
| 2. |
BN2391154-001
|
[1] |
RADIO
|
BN
Am/Fm/St/Cass (Removable Face) Superseded by part number: ZAEJCD2010
|
| 2A. |
BN311133
|
[1] |
BRACKET
|
BN
Antenna
|
| 2B. |
855-8030
|
[3] |
BOLT,Hvy Hex, M8 x 30mm, Cl 10.9
|
CAS
Superseded by part number: 86639271
|
| 2C. |
BN2391154-003
|
[1] |
ANTENNA
|
BN
Rubber Superseded by part number: ZAE1181039HD
|
| 2D. |
BN2391154-004
|
[1] |
Extension, Antenna 36"
|
|
| 3. |
BN300566
|
[1] |
SLEEVE
|
BN
Aluminum
|
| 3A. |
BN300567
|
[1] |
HOOK
|
BN
Air Horn Install
|
| 3B. |
BN2403383
|
[1] |
CABLE
|
BN
Vinyl Coat 1/16
|
| 3C. |
BN2292089
|
[12] |
AIR INTAKE TUBE
|
BN
Synflex, 1/4" Bulk
|
| 3D. |
BN324834
|
[1] |
HORN
|
BN
Fultone, Stainless
|
| 3E. |
BN7143114
|
[1] |
MOUNTING PLATE
|
BN
Angle, Horn Valve Mount
|
| 4. |
BN2406306-010
|
[3] |
VENT
|
BN
Louver, RECT
|
| 5. |
BN2406306-011
|
[7] |
VENT
|
BN
Louver, Round 2"
|
| 6. |
BN320746
|
[1] |
REPAIR KIT
|
BN
Assembly Temperature Control, See Fig 01-006
|
| 7. |
BN2406306-020
|
[1] |
COURTESY LIGHT
|
BN
DOME LIGHT
|
| 8. |
BN314495
|
[1] |
ROOF LINING
|
BN
Headliner, Covered
|
| 9. |
BN7142713
|
[1] |
SHEET
|
BN
Cover Fuse Panel
|
| 10. |
BN2403349
|
[1] |
CABLE
|
BN
Twistlock
|
| 11. |
BN2407981
|
[1] |
SUN GEAR
|
BN
Visor, Acrylic 8630
|
| 12. |
83882C91
|
[1] |
LAMP
|
IH
Assembly, Courtesy Superseded by part number: 47466806
|
| 12A. |
BN314494
|
[1] |
FLOOR MAT
|
BN
Cab, (Not Shown)
|
| 12B. |
BN2406306-021
|
[1] |
Flex, 2 1/2" Heater (Located In Cab Roof), (Not Shown)
|
|
